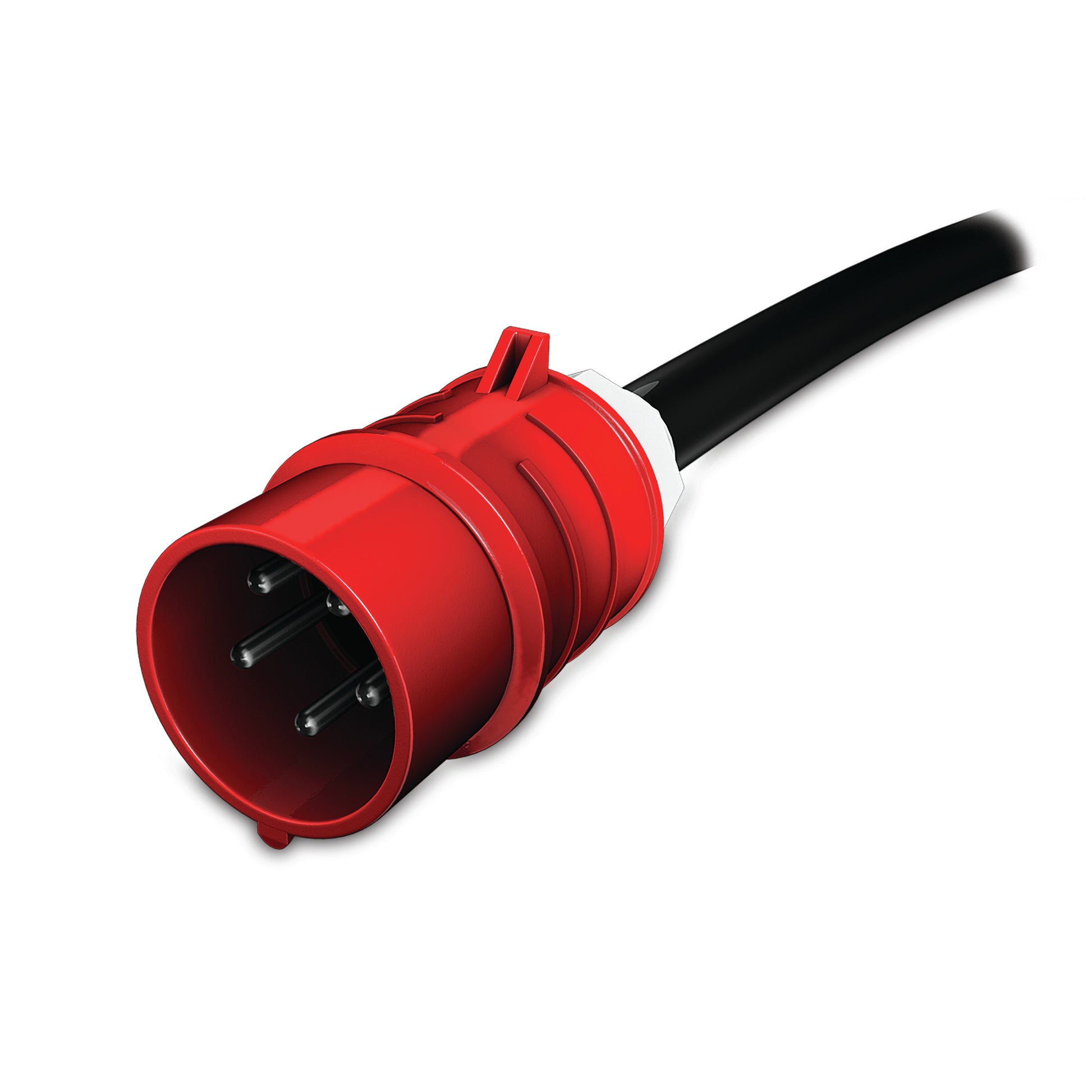

• APC AP8881 red 3-pin power plug with black cable on PDU
1 1

APC

APC AP8881 | NetShelter Metered Rack PDU, 0U, 3PH 16A, 11kW, 36 C13 + 6 C19

APC AP8881 | NetShelter Metered Rack PDU, 0U, 3PH 16A, 11kW, 36 C13 + 6 C19

Authorised APC Partner

AP8881

Stock Status: Enquire

$2,345.31 inc. GST
$2,132.10 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter AP8881 is a 0U vertical, three-phase metered rack PDU delivering 11kW with 36 IEC C13 and 6 IEC C19 outlets. Fed by a 400V 16A IEC 309 3P+N+PE input cord, it suits colocation, large and remote data centres where dense, high-capacity rack power distribution is required. Metering of amps, volts, kW and kWh at the PDU level lets you plan capacity, balance loads and avoid circuit overloads.

User-defined alarm thresholds, locking IEC receptacles and a temperature/humidity sensor port support safe, monitored operation, while management through EcoStruxure IT and other platforms provides historical reporting for capacity planning and energy tracking. The PDU is supplied with rack mounting brackets and a 1.83 m input cord, and includes a 1-year Secure Network Management Card subscription.

Features

- Real power monitoring (amps, volts, kW, kWh) with +/- 3% accuracy
- User-defined alarm thresholds to help prevent circuit overloads
- Temperature/humidity sensor port
- Locking IEC receptacles
- Managed through EcoStruxure IT and other platforms
- Historical reporting for metering customer power use and capacity planning
- Supports improved energy efficiency and emissions tracking
- 1-year Secure Network Management Card subscription included

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U vertical rack mount
- Input: 3-phase 400V, 16A, IEC 60309 3P+N+PE plug (16A/20A)
- Output: 230V, 11kW (11,000VA) load capacity
- Outlets: 36 x IEC C13 and 6 x IEC C19 (42 total)
- Max line current: 16A per phase
- Frequency: 50/60 Hz
- Input cord length: 1.83 m
- Metering: +/- 3% accuracy (amps, volts, kW, kWh)
- Colour: Black
- Dimensions (H x W x D): 179.1 x 5.6 x 4.4 cm
- Net weight: 6.38 kg
- Storage temperature: -25 to 65 C
- Supplied with: rack mounting brackets, serial configuration cable, installation guide and safety guide

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the AP8881 require?
A: It requires a three-phase 400V supply at 16A per phase, terminated with the attached IEC 60309 3P+N+PE plug on a 1.83 m cord.

Q: How many outlets does it provide and of what type?
A: It provides 42 outlets in total: 36 x IEC C13 and 6 x IEC C19, with locking receptacles.

Q: Does this PDU measure power consumption?
A: Yes. It is a metered PDU that measures amps, volts, kW and kWh at the PDU level with +/- 3% accuracy, and supports user-defined alarm thresholds.

Q: Can it be mounted in a standard rack?
A: Yes. It is a 0U vertical unit, so it mounts in the rear of the rack without using rack units, and rack mounting brackets are supplied.

Q: What management platforms does it work with?
A: It can be managed through EcoStruxure IT and other platforms, and includes a 1-year Secure Network Management Card subscription.

Q: Can I connect an environmental sensor?
A: Yes. The PDU has a temperature/humidity sensor port for environmental monitoring.
