APC

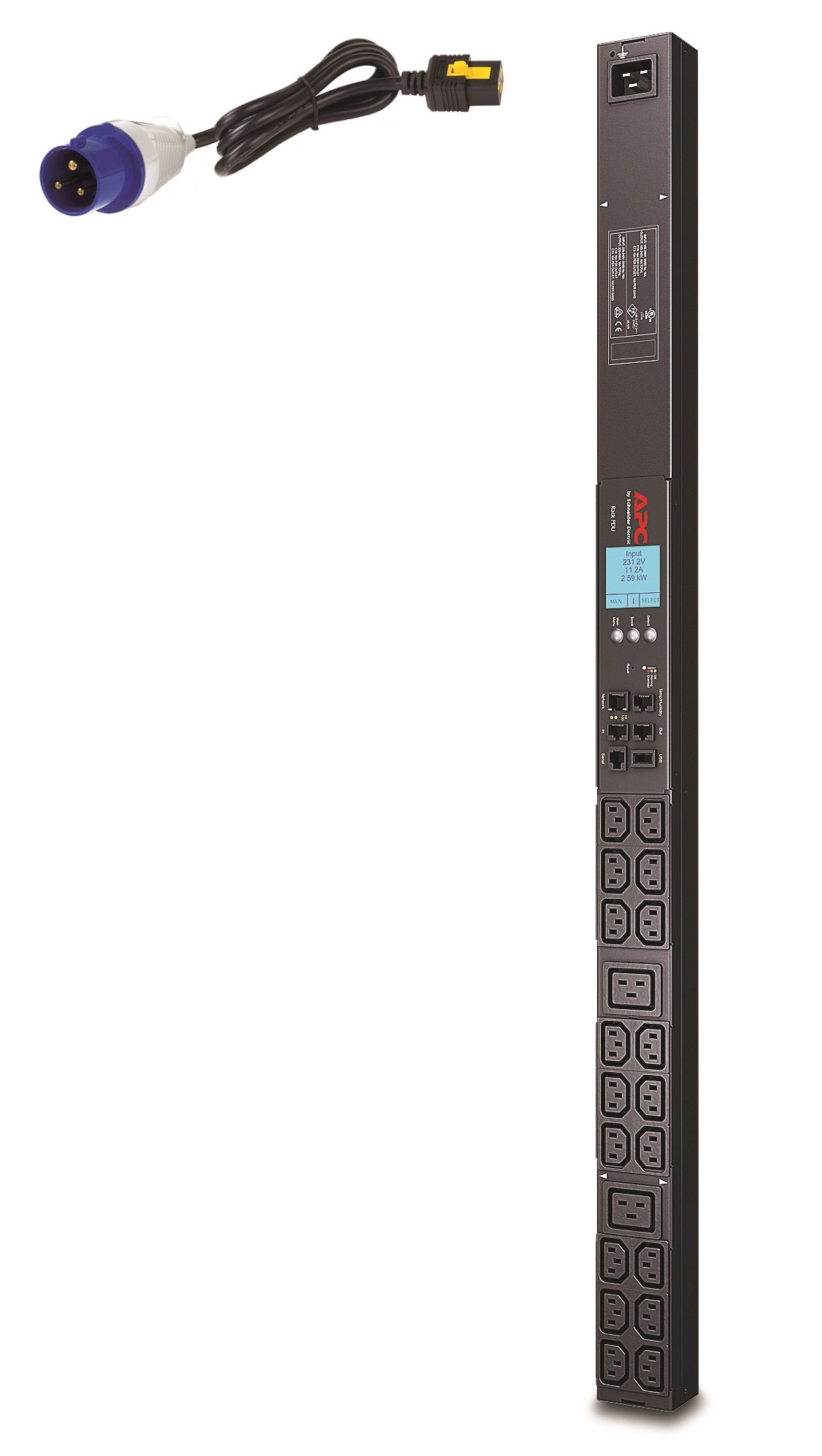

APC AP8858EU3 | NetShelter Metered Rack PDU, 0U, 3.7kW, 18 C13 + 2 C19, IEC 309

APC AP8858EU3 | NetShelter Metered Rack PDU, 0U, 3.7kW, 18 C13 + 2 C19, IEC 309

Authorised APC Partner

AP8858EU3

In stock:1

$1,330.78 inc. GST
$1,209.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP8858EU3 NetShelter Metered Rack PDU is a 0U vertical, single phase rack PDU rated at 3.7kW, 230V and 16A. It delivers 18 IEC C13 and 2 IEC C19 locking outlets from a 3m IEC 309 16A input cord, making it suited to server and network racks that need dense, hard-wired power distribution. PDU-level metering measures volts, amps, kW and kWh, with a local LCD for at-a-glance readings.

This variant ships with an IEC 309 input cord, unlike the AP8858 which uses a C20 inlet with no cord. Remote monitoring is available through EcoStruxure IT, Web, SNMP and CLI, and up to four PDUs can be daisy-chained and monitored from a single IP address. User-defined alarms help prevent circuit overloads and support capacity planning.

Features

- Actively measures, displays and logs volts, amps, real power (kW) and energy (kWh)
- User-defined alarms to help prevent circuit overloads
- Real-time remote monitoring and historical reporting for energy optimisation and capacity planning
- Integrates with EcoStruxure IT for monitoring and management
- Locking outlets help prevent accidental disconnection
- Verified product environmental profile, including carbon footprint and end-of-life instructions

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- 3.7kW / 230V / 16A, single phase
- 0U vertical rack mount
- 18 x IEC C13 and 2 x C19 locking outlets (20 total)
- Input: IEC 309 (IEC 60309) 16A 2P+E plug, 3m (10ft) cord
- Input voltage 220-240V; output voltage 230V
- Metered at PDU level: volts, amps, kW, kWh, with local LCD display
- Remote management via EcoStruxure IT, Web, SNMP and CLI
- Daisy-chain support: monitor up to 4 PDUs from 1 IP address
- Local USB port for firmware updates
- Operating temperature up to 60°C
- Colour: Black
- Environmental: Green Premium, RoHS, REACH

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the AP8858EU3 use?
A: It has a 3m IEC 309 (IEC 60309) 16A 2P+E input cord, so it connects to a matching IEC 309 supply outlet.

Q: How does the AP8858EU3 differ from the AP8858?
A: Both are 3.7kW 230V 16A metered PDUs with 18 C13 and 2 C19 outlets. The AP8858EU3 includes an IEC 309 input cord, while the AP8858 uses a C20 inlet with no cord.

Q: What does the metering measure?
A: Metering is at PDU level and measures volts, amps, kW and kWh, shown on the local LCD and available remotely.

Q: Can I monitor it remotely?
A: Yes. Remote management is supported via EcoStruxure IT, Web, SNMP and CLI. Up to four PDUs can be daisy-chained and monitored from one IP address.

Q: How many and what type of outlets does it provide?
A: It provides 20 locking outlets in total: 18 IEC C13 and 2 IEC C19, which helps prevent accidental disconnection.

Q: How is it mounted in the rack?
A: It is a 0U vertical PDU, mounting alongside equipment without using any rack units.
