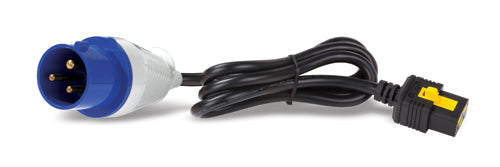

• APC AP8758 3m locking C19 to IEC309-16A power cord, blue white cable yellow connector
1 1

APC

APC AP8758 | NetShelter Locking Power Cord, C19 to IEC309-16A, 3.0m

APC AP8758 | NetShelter Locking Power Cord, C19 to IEC309-16A, 3.0m

Authorised APC Partner

AP8758

Stock Status: Enquire

$155.09 inc. GST
$140.99 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP8758 is a 3.0m locking power cord for rack PDU connections, fitted with an IEC 60320 C19 connector at one end and an IEC 60309 16A plug at the other. Rated at 16A, it links rack-mount PDUs to attached IT equipment, and the locking connector reduces the risk of accidental disconnection and dropped loads.

The cord fits any standard IEC receptacle or power inlet, while the locking feature is enabled when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. It helps secure and tidy power cabling within the rack and supports quick, flexible installation.

Features

- Locking connectors reduce the chance of accidentally disconnecting cords and dropping loads
- Secures power cords between rack-mount PDUs and attached IT equipment
- Fits any standard IEC receptacle or power inlet
- Locking function enabled with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles
- Quick, flexible installation
- Frees up space within the rack

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

APC Replacement Battery Finder

Technical Specifications

- Length: 3.0m
- Connector 1: IEC 60320 C19 (locking)
- Connector 2: IEC 60309 16A (IEC309-16A) plug
- Rated current: 16A
- Maximum line current: 16A
- Outer sheath colour: Black
- Operating temperature: 0 to 70 °C
- Operating relative humidity: 20-80%
- Approvals: VDE
- Approximate weight: 0.49 kg

FAQs

Q: What connectors does the APC AP8758 power cord use?
A: It has an IEC 60320 C19 locking connector at one end and an IEC 60309 16A (IEC309-16A) plug at the other.

Q: How long is the AP8758 power cord?
A: The cord is 3.0m long.

Q: What is the current rating of the AP8758?
A: It is rated for 16A, with a maximum line current of 16A.

Q: Does the locking feature work with any PDU?
A: The cord fits any standard IEC receptacle or power inlet, but the locking feature is only enabled with APC AP8000 series Rack PDUs or IT equipment that has built-in locking receptacles.

Q: What is the AP8758 used for?
A: It connects rack-mount PDUs to IT equipment in a rack, securing the power connection and helping prevent accidental disconnection.

Q: What is the operating temperature range of the AP8758?
A: The cord operates in temperatures from 0 to 70 °C and 20-80% relative humidity.
