APC AP8714S | NetShelter Locking Power Cord Kit, C19 to C20, 1.2m, Black, 6-Pack

APC AP8714S | NetShelter Locking Power Cord Kit, C19 to C20, 1.2m, Black, 6-Pack

Authorised APC Partner

AP8714S

Stock Status: Enquire

$255.53 inc. GST
$232.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

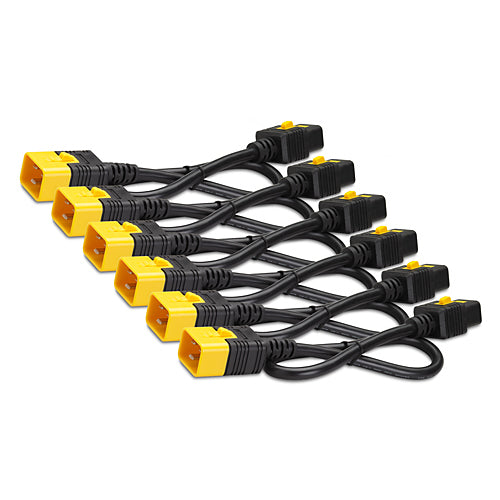

The APC NetShelter AP8714S is a kit of six locking power cords with a straight C19 to C20 configuration, 1.2m long and finished in black. Designed for rack power distribution, each cord connects a rack PDU to IT equipment, and the locking IEC receptacle helps prevent accidental disconnections when used with APC AP8000 series Rack PDUs or equipment with locking receptacles.

Rated at 16 A and 240 V AC, the cords fit standard IEC receptacles and power inlets, which keeps cabling tidy and secure between the PDU and server, switch or UPS. Buying a six-piece kit makes it simple to standardise cabling across a full rack or multiple cabinets in a data centre or comms room.

Features

- Locking IEC receptacle reduces the risk of accidental disconnections
- Locking feature designed for the APC AP8000 range of Rack PDUs
- Fits any standard IEC receptacle or power inlet
- Frees up space and secures power cords between rack PDUs and IT equipment
- Six-cord kit suits full rack deployments
- Approved for multiple regions with regional input sockets

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Kit quantity: 6 power cords
- Input connector: IEC 60320 C20
- Output connector: IEC 60320 C19 (locking)
- Cord length: 1.2 m (4 ft)
- Rated current: 16 A
- Rated voltage: 240 V AC
- Colour: Black
- Operating temperature: 0 to 75 °C
- Storage temperature: -25 to 75 °C
- Net weight: 1.64 kg
- Dimensions (H x W x D): 300 x 70 x 70 mm
- Approvals: CCC, CSA, PSE, UL listed, VDE
- Green Premium, RoHS

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What connectors does the AP8714S use?
A: Each cord has an IEC 60320 C20 input connector and a locking IEC 60320 C19 output connector, in a straight configuration.

Q: How many power cords are in the kit?
A: The kit contains six black power cords, each 1.2 m long.

Q: Which PDUs does the locking feature work with?
A: The locking feature engages with APC AP8000 series Rack PDUs and with equipment that has locking receptacles. The cords also fit any standard IEC receptacle or power inlet.

Q: What are the current and voltage ratings?
A: The cords are rated for 16 A at 240 V AC.

Q: Is the AP8714S suitable for use inside a NetShelter rack?
A: Yes. It is part of the APC NetShelter range and is intended for connecting rack PDUs to IT equipment inside server racks and cabinets.

Q: What is the cord length and colour?
A: Each cord is 1.2 m (4 ft) long and black.
