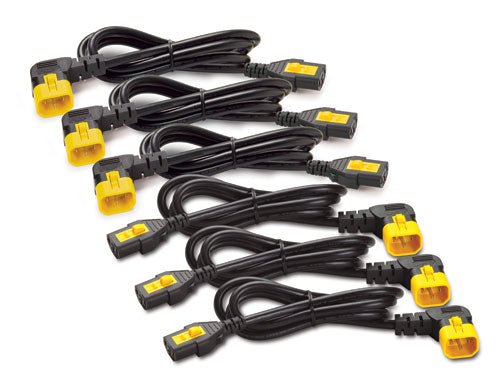

• APC AP8706R-WW black power cords with yellow black connectors coiled
1 1

APC

APC AP8706R-WW | NetShelter Locking Power Cord Kit, 6-Pack, C13 to C14, 1.8m

APC AP8706R-WW | NetShelter Locking Power Cord Kit, 6-Pack, C13 to C14, 1.8m

Authorised APC Partner

AP8706R-WW

Stock Status: Enquire

$212.77 inc. GST
$193.43 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

This APC NetShelter locking power cord kit contains six IEC C13 to C14 power cords, 1.8m in length, with 90-degree connectors and a locking design. It secures the connection between rack-mount PDUs and attached IT equipment, helping to prevent accidental disconnection and keeping rack cabling tidy.

The cords fit any standard IEC receptacle or power inlet. The locking function is enabled when used with APC AP8000 series rack PDUs or IT equipment that has built-in locking receptacles. Supplied in black as a six-pack, it suits rack power distribution deployments that need consistent, secure power connections.

Features

- Locking connectors reduce the chance of accidental disconnection
- Frees up space and secures power cords between rack PDUs and IT equipment
- Fits any standard IEC receptacle or power inlet
- Locking function is enabled with APC AP8000 series rack PDUs or IT equipment with built-in locking receptacles
- Part of the APC NetShelter rack power range

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Quantity: 6 power cords per kit
- Cord length: 1.8 m (approx. 6 ft)
- Connectors: IEC 60320 C14 (input) to IEC 60320 C13 (output), 90-degree
- Locking IEC receptacle design
- Maximum input current: 10 A
- Colour: Black
- Operating temperature: 0 to 70 °C
- Storage temperature: -25 to 75 °C
- Operating humidity: 20-80 %
- Operating elevation: 0-3048 m
- Net weight: 1.35 kg

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many power cords are included in the AP8706R-WW kit?
A: The kit includes six locking C13 to C14 power cords, each 1.8m long.

Q: What connectors does this power cord kit use?
A: Each cord uses an IEC 60320 C14 input connector and a 90-degree IEC 60320 C13 output connector.

Q: Do I need a specific PDU for the locking feature to work?
A: The locking function is enabled with APC AP8000 series rack PDUs or IT equipment that has built-in locking receptacles. The cords also fit standard IEC receptacles without locking.

Q: What is the maximum current rating of these cords?
A: The maximum input current is 10 A.

Q: What colour are the cords in this kit?
A: The cords are black.

Q: What environmental conditions are these cords rated for?
A: They operate at 0 to 70 °C and 20-80 % humidity, with storage from -25 to 75 °C and operation up to 3048 m elevation.
