APC AP8702S-WW | NetShelter Locking Power Cord Kit, C13 to C14, 0.6m, 6-Pack

APC AP8702S-WW | NetShelter Locking Power Cord Kit, C13 to C14, 0.6m, 6-Pack

Authorised APC Partner

SKU:AP8702S-WW

$99.58 inc. GST
$90.53 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 16

Description

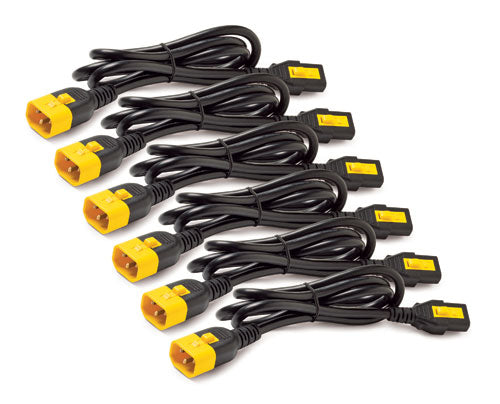

The APC AP8702S-WW is a NetShelter locking power cord kit containing six 0.6m IEC C13 to C14 cords in black. The locking connectors help prevent accidental disconnection between rack PDUs and IT equipment, which protects connected loads in server rooms and data centres.

Locking is enabled when the cords are used with APC AP8000 series Rack PDUs or equipment with locking receptacles, and the cords also fit any standard IEC receptacle or inlet. The lock releases without tools, and the kit removes the need for cumbersome cord retention solutions, keeping rack cabling tidy and serviceable.

Features

- Locking IEC connectors reduce the chance of accidental disconnection and dropped loads
- Frees up space and removes the need for cumbersome cord retention solutions
- Fits any standard IEC receptacle or inlet; locking is enabled with AP8000 series Rack PDUs
- No tools needed to disengage the lock and remove the plug
- Worldwide (WW) localisation

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Quantity: 6 cords per kit
- Connector 1: IEC 60320 C13 (female)
- Connector 2: IEC 60320 C14 (male)
- Length: 0.6m
- Rated current: 10 A
- Colour: Black
- Locking connector, locking enabled with APC AP8000 series Rack PDUs
- Approvals: CCC, PSE, VDE; RoHS compliant
- Operating temperature: 0 to 70 °C
- Storage temperature: -25 to 75 °C
- Operating humidity: 20-80%
- Operating altitude: 0-3000 m

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How many power cords come in the AP8702S-WW kit?
A: The kit contains six black 0.6m locking power cords.

Q: What connectors does this power cord kit use?
A: Each cord has an IEC 60320 C13 female connector on one end and an IEC 60320 C14 male connector on the other.

Q: Do I need an APC AP8000 series Rack PDU to use these cords?
A: The locking function is enabled with APC AP8000 series Rack PDUs or equipment with locking receptacles. The cords also fit standard IEC receptacles, but without a locking receptacle they will not lock.

Q: Do I need tools to remove the locking plug?
A: No. The lock can be disengaged and the plug removed without tools.

Q: What is the current rating of these cords?
A: Each cord is rated at 10 A.

Q: How long are the cords in this kit?
A: Each cord is 0.6m (about 2 ft), suited to short runs between a rack PDU and equipment in the same rack.
