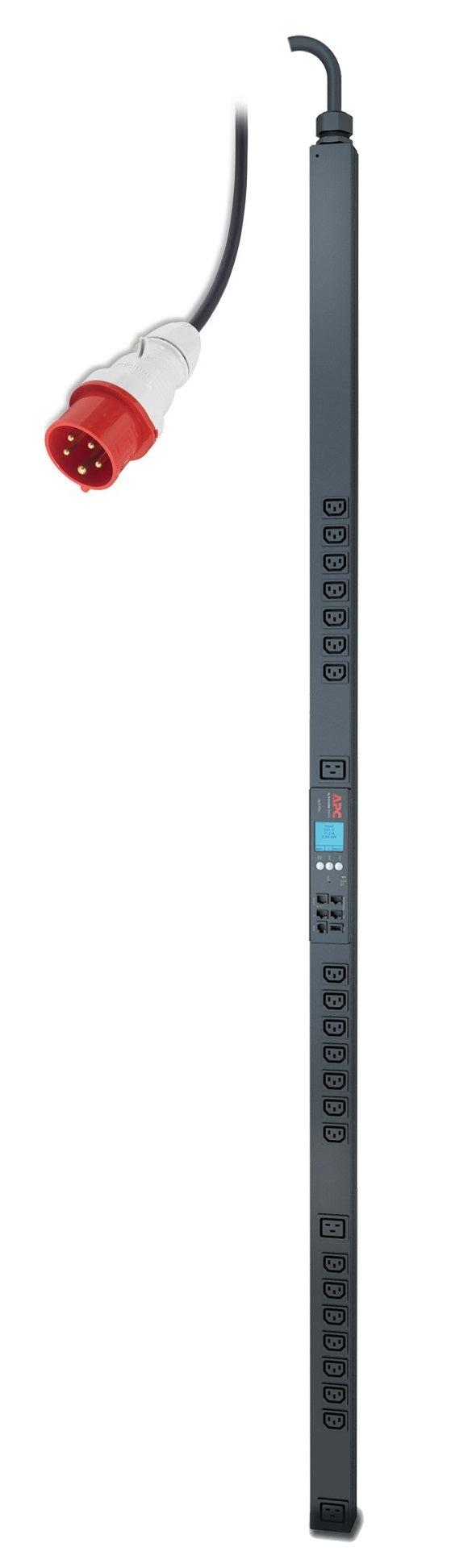

• APC AP8481 black vertical rack PDU with red/white plug, outlets, display
1 1

APC

APC AP8481 | NetShelter Rack PDU 2G, Metered-by-Outlet, 11kW, ZeroU

APC AP8481 | NetShelter Rack PDU 2G, Metered-by-Outlet, 11kW, ZeroU

Authorised APC Partner

AP8481

Stock Status: Enquire

$3,018.16 inc. GST
$2,743.78 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack PDU 2G AP8481 is a vertical ZeroU, three-phase rack PDU delivering 11.0 kW from a 400V 16A input, with 21 x C13 and 3 x C19 outlets at 230V. Metered-by-Outlet monitoring measures the load at each individual outlet, supporting granular power monitoring, trend analysis and capacity planning in server racks and data centres.

The ZeroU form factor mounts in the vertical cable space of the rack, preserving valuable rack units for equipment. User-defined alarm thresholds help avoid overloaded circuits, while a local digital display shows aggregate current draw and a load indicator LED signals overload and warning conditions. Remote monitoring is supported over the network via web and SNMP management, including EcoStruxure IT.

Features

- Outlet-level power metering for granular monitoring, trend analysis and capacity planning
- Real-time remote monitoring via EcoStruxure IT and other platforms
- User-defined alarm thresholds to help avoid overloaded circuits
- Web and SNMP network management
- Local digital display of aggregate current draw
- Load indicator LED for overload and warning conditions
- Locking IEC receptacles
- Ultra-low-profile circuit breakers

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- PDU type: Metered-by-Outlet
- Form factor: ZeroU (0U) vertical rack mount
- Power capacity: 11.0 kW
- Input: 400V three-phase, 16A, 50/60 Hz
- Input plug: IEC 60309 16A 3P+N+PE
- Output voltage: 230V
- Outlets: 21 x IEC 60320 C13 and 3 x IEC 60320 C19
- Cord length: 1.8 m (6 ft)
- Metering accuracy: +/-3%
- Dimensions (H x W x D): 72 in x 2.2 in x 2 in
- Weight: approx. 18.1 lb
- Colour: black
- Package includes: CAN port terminator, installation guide, rack mounting brackets, safety guide, serial configuration cable

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input supply does the APC AP8481 require?
A: It requires a 400V three-phase supply at 16A, 50/60 Hz, connected through the IEC 60309 16A 3P+N+PE input plug on the 1.8 m cord.

Q: What outlets does the AP8481 provide?
A: It provides 21 x IEC 60320 C13 outlets and 3 x IEC 60320 C19 outlets at 230V, for a total capacity of 11.0 kW.

Q: What does Metered-by-Outlet mean?
A: Power is measured at each individual outlet, not just at the PDU input. This allows load to be monitored per device, with user-defined alarm thresholds to help prevent overloaded circuits.

Q: How is the AP8481 mounted in the rack?
A: It is a ZeroU (0U) vertical PDU that mounts in the rack's side cable space using the supplied rack mounting brackets, so it uses no rack units.

Q: Can I monitor the AP8481 remotely?
A: Yes. It supports network management over web and SNMP, and can be monitored in real time through EcoStruxure IT and other platforms. A local digital display also shows aggregate current draw.

Q: How does this differ from a switched PDU?
A: The AP8481 is a metered-by-outlet model, which monitors power at each outlet but does not switch outlets on and off remotely.
