• APC AP8459EU3 NetShelter rack PDU black power strip 4 USB 2 outlets
1 1

APC

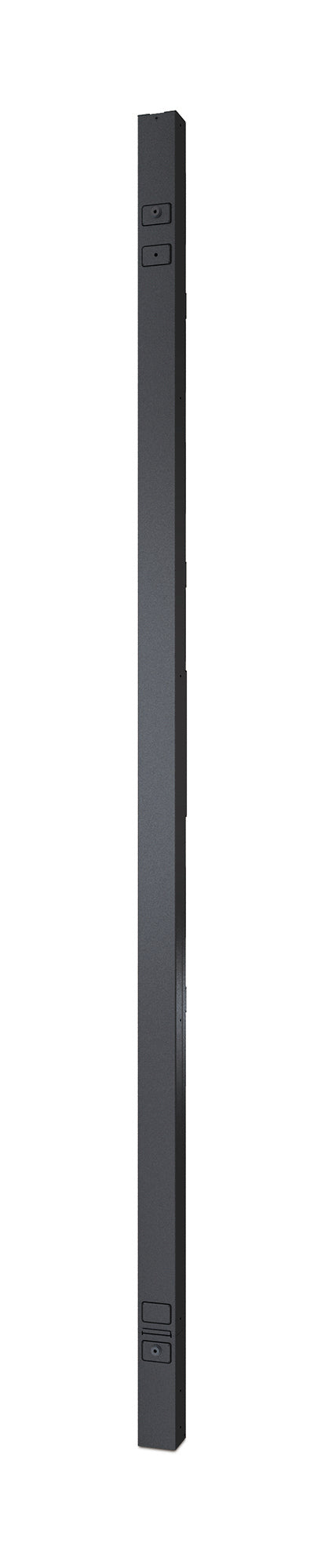

APC AP8459EU3 | NetShelter 2G ZeroU Metered-by-Outlet Rack PDU, 16A, 21x C13, 3x C19

APC AP8459EU3 | NetShelter 2G ZeroU Metered-by-Outlet Rack PDU, 16A, 21x C13, 3x C19

Authorised APC Partner

AP8459EU3

In stock:5

$1,975.93 inc. GST
$1,796.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack PDU 2G is a vertical ZeroU rack PDU with metering at each individual outlet, giving data centre and IT teams outlet-level visibility of current and power for remote monitoring and capacity planning. It delivers 24 outlets (21 x C13 and 3 x C19) from a 16A 230V input, suited to dense server and network racks.

The ZeroU form factor mounts on the side or rear of the rack, leaving rack units free for equipment. A temperature and humidity sensor port supports environmental monitoring, and secure Web, SNMP or Telnet access allows integration with APC centralised management platforms.

Features

- Individual outlet-level power metering for granular visibility and capacity planning
- Real-time remote current monitoring of connected loads
- Temperature/humidity sensor port for environmental sensor integration
- Locking IEC receptacles and ultra low profile circuit breakers
- Secure Web, SNMP or Telnet access, compatible with APC centralised management platforms
- 1-year Secure Network Management Card subscription included
- ZeroU vertical form factor mounts on the side or rear of server racks

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 0U (ZeroU) vertical mount
- Outlets: 24 total (21 x C13 and 3 x C19)
- Input: 230V nominal (200-230V), 16A, 50/60 Hz
- Input plug: IEC309 16A
- Max power: 3680 VA / 3680 W
- Metering: metered by outlet (current, power, voltage)
- Temperature/humidity sensor port
- Cable length: 3 m
- Dimensions (WxDxH): 56 x 51 x 1829 mm
- Weight: 6.76 kg
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What outlets does the AP8459EU3 provide?
A: It provides 24 outlets in total: 21 x C13 and 3 x C19.

Q: What input does this PDU require?
A: It runs from a 230V (200-230V) 16A, 50/60 Hz supply using an IEC309 16A input plug, with a 3 m input cable.

Q: What does metered-by-outlet mean?
A: The PDU measures current, power and voltage at each individual outlet, so you can monitor loads remotely and plan capacity at outlet level.

Q: What is the maximum power rating?
A: The maximum rating is 3680 VA / 3680 W.

Q: How is the PDU mounted in the rack?
A: It is a ZeroU (0U) vertical unit that mounts on the side or rear of the rack, so it does not use any rack units.

Q: Can I connect environmental sensors?
A: Yes. It has a temperature/humidity sensor port for environmental monitoring.
