• APC AP7585 2U rack PDU extender rear view with exposed multi-colored wires
1 1

APC

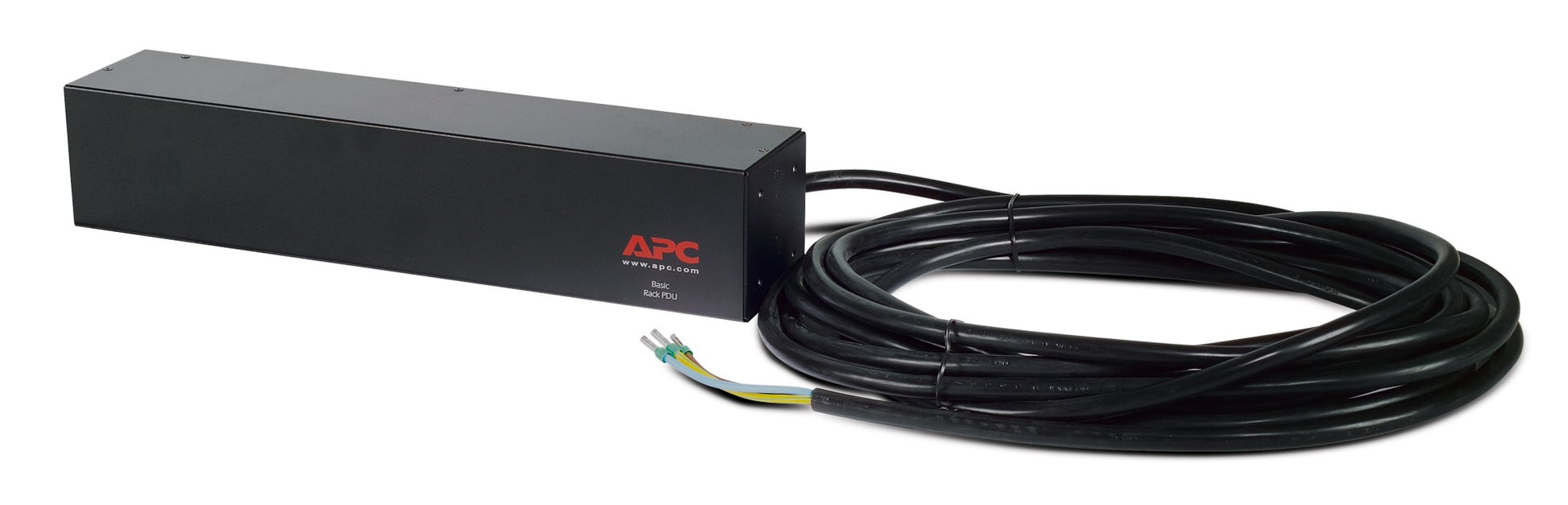

APC AP7585 | NetShelter Basic 2U Rack PDU Extender, 32A, 230V, 4x C19

APC AP7585 | NetShelter Basic 2U Rack PDU Extender, 32A, 230V, 4x C19

Authorised APC Partner

AP7585

Stock Status: Enquire

$1,188.85 inc. GST
$1,080.77 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP7585 is a NetShelter Basic 2U rack PDU extender that distributes 230V power at up to 32A through four IEC C19 outlets. It is a non-metered, horizontally mounted unit with a hard-wired input, suited to bringing high-current power to rack equipment from a single branch whip.

The hard-wired 3-wire input supports 200V, 208V and 230V supplies at 50/60 Hz and includes an 8.5 m cord, with a load capacity of 7360VA. Resettable circuit breakers allow quick recovery from overload events, and the included rack mounting brackets support toolless horizontal installation in standard racks.

Features

- Resettable circuit breakers enable quick recovery from overload events
- Single input power source: one branch whip feeds multiple pieces of equipment, saving installation time and cost
- Horizontal mounting with toolless mounting capability
- Low-cost power distribution to bring power to rack equipment
- Wide range of input and output connections across the NetShelter Basic family
- Average recycled plastic content of 15%

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 2U rack-mount, horizontal
- Outlets: 4 x IEC 60320 C19
- Nominal output voltage: 230V
- Maximum total current draw: 32A
- Nominal input voltage: 200V, 208V, 230V
- Input frequency: 50/60 Hz
- Input connection: hard wire, 3-wire
- Input cord length: 8.5 m (approx. 28 ft)
- Number of power cords: 1
- Load capacity: 7360VA
- Maximum input current: 32A
- Maximum height: 89 mm
- Maximum width: 437 mm
- Includes: installation guide, rack mounting brackets
- Green Premium, RoHS

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What type of outlets does the APC AP7585 provide?
A: The AP7585 provides four IEC 60320 C19 outlets, suited to high-current rack equipment such as servers and blade chassis.

Q: Does the AP7585 plug into a wall outlet?
A: No. It has a hard-wired 3-wire input with an 8.5 m cord, so it must be connected to a branch circuit by a qualified electrician.

Q: Is the AP7585 a metered or switched PDU?
A: No. It is a basic, non-metered PDU extender that provides power distribution only, with no remote monitoring or outlet switching.

Q: What input voltage and current does it support?
A: It supports nominal input voltages of 200V, 208V and 230V at 50/60 Hz, with a maximum input current of 32A and a load capacity of 7360VA.

Q: How is the AP7585 mounted in a rack?
A: It is a 2U horizontal unit with toolless mounting capability, and rack mounting brackets are included.

Q: What protection does it include against overloads?
A: It has resettable circuit breakers, so power can be restored quickly after an overload event without replacing fuses.
