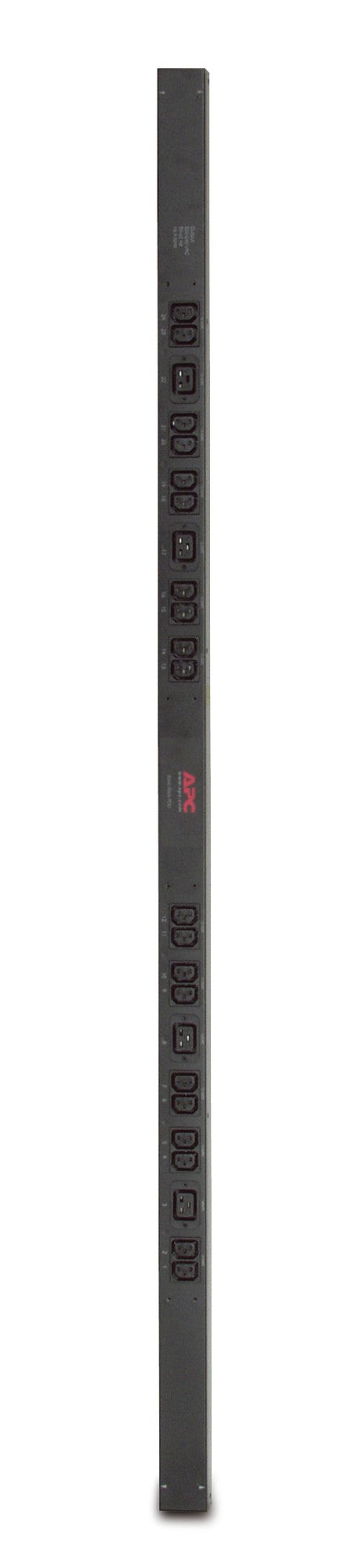

• APC AP7554 black vertical rack PDU with 20 C13 and 4 C19 outlets
1 1

APC

APC AP7554 | NetShelter Basic Zero U Rack PDU, 16A 230V, 20x C13, 4x C19

APC AP7554 | NetShelter Basic Zero U Rack PDU, 16A 230V, 20x C13, 4x C19

Authorised APC Partner

AP7554

Stock Status: Enquire

$837.43 inc. GST
$761.30 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP7554 NetShelter Basic Rack PDU is a Zero U vertical power distribution unit that delivers 16A at 230V (3680 VA) through 20 C13 and 4 C19 outlets. It connects via a 10 ft (3.05 m) cord terminated in an IEC 309 16A plug, making it a good fit for server racks that need a high outlet count without using up any rack units.

This basic (non-metered, non-switched) PDU mixes C13 outlets for servers, switches and storage with C19 outlets for higher-draw equipment. It mounts in the rear of APC NetShelter racks using the supplied toolless mounting kit, and ships with rack mounting brackets and an installation guide.

Features

- Zero U design preserves valuable rack space
- Toolless mounting kit for quick installation
- Mounts in the rear of APC NetShelter racks
- Mixed C13 and C19 outlets for servers and higher-draw equipment
- Includes installation guide, rack mounting brackets and toolless mounting kit

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: Zero U vertical mount
- Nominal output voltage: 230V
- Maximum current draw: 16A
- Load capacity: 3680 VA
- Outlets: 20x IEC 320 C13 and 4x IEC 320 C19
- Input connection: IEC 309 16A
- Nominal input voltage: 200V, 208V, 230V
- Input frequency: 47-63 Hz
- Power cord: 1x 3.05 m (10 ft)
- Operating temperature: -5 to 45 °C (23 to 113 °F)
- Operating relative humidity: 5-95%
- Colour: Black

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input plug does the AP7554 use?
A: It has a 10 ft (3.05 m) fixed cord terminated in an IEC 309 16A plug, so it needs a matching 16A IEC 309 supply.

Q: How many outlets does it provide and what types?
A: It provides 24 outlets in total: 20 IEC 320 C13 and 4 IEC 320 C19.

Q: Is this a metered or switched PDU?
A: No. The AP7554 is a basic PDU, so it provides power distribution only, without metering or outlet switching.

Q: What is the total load capacity?
A: It is rated for 16A at 230V, which equates to a load capacity of 3680 VA.

Q: Where does it mount in the rack?
A: It is a Zero U vertical PDU that mounts in the rear of APC NetShelter racks using the included toolless mounting kit and rack mounting brackets.

Q: What equipment is it suited to powering?
A: The C13 outlets suit servers, switches and storage, while the 4 C19 outlets suit higher-draw equipment such as larger servers and chassis.
