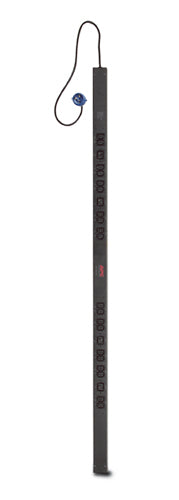

• APC AP7551 black cylindrical rack PDU with blue cord, 20 C13 4 C19 outlets
1 1

APC

APC AP7551 | NetShelter Basic Zero U Rack PDU, 16A 230V, 20x C13 + 4x C19, 3.7kW, IEC309

APC AP7551 | NetShelter Basic Zero U Rack PDU, 16A 230V, 20x C13 + 4x C19, 3.7kW, IEC309

Authorised APC Partner

AP7551

In stock:4

$733.70 inc. GST
$667.00 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP7551 NetShelter Basic Rack PDU is a vertical Zero U rack power distribution unit with a 16A 230V IEC 309 input feeding 20 C13 and 4 C19 outlets, delivering up to 3.7 kW. The 24-outlet layout suits dense server and network equipment racks where both C13 and C19 loads need to be powered from a single unit.

The Zero U design mounts toolless in the rear channel of NetShelter enclosures, keeping valuable rack units free for equipment. A single input with multiple outlets simplifies cabling, and the installation guide, rack mounting brackets and toolless mounting kit are included.

Features

- Vertical Zero U design frees up rack space for more equipment
- Toolless mounting into NetShelter enclosure rear channel
- Single input with multiple outlets for reliable rack power distribution
- Enables quick recovery from overload events
- Package includes installation guide, rack mounting brackets and toolless mounting kit

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: Zero U (0U), vertical mounting
- Nominal input voltage: 230V, 50/60 Hz
- Maximum input current per phase: 16A
- Load capacity: 3680 VA / 3.7 kW (3680 W)
- Input connection: IEC 309 16A 2P+E, 1 power cord, 0.91 m (3 ft)
- Output connections: 20 x IEC 320 C13 and 4 x IEC 320 C19 (24 outlets total)
- Nominal output voltage: 230V
- Colour: Black
- Net weight: approx. 4.86 kg
- Dimensions (WxDxH): approx. 56 x 44 x 1619 mm
- Operating temperature: 0 to 45 °C; storage: -25 to 65 °C
- Approvals: CCC, CE, GOST, IRAM, VDE

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What input connection does the APC AP7551 use?
A: The AP7551 has a single IEC 309 16A 2P+E input on a 0.91 m (3 ft) power cord, rated for 230V at 16A.

Q: How many outlets does the AP7551 provide and what types are they?
A: It provides 24 outlets in total: 20 x IEC 320 C13 and 4 x IEC 320 C19, all at 230V nominal output.

Q: What is the maximum load capacity of the AP7551?
A: The load capacity is 3680 VA, equivalent to 3.7 kW (3680 W), from the 16A 230V input.

Q: Does this PDU take up rack units?
A: No. It is a Zero U vertical PDU that mounts toolless in the rear channel of NetShelter enclosures, so it uses no rack unit space.

Q: Is the AP7551 a metered or switched PDU?
A: No. It is a Basic Rack PDU that distributes power only, without metering or outlet switching.

Q: What is included in the box?
A: The package includes the installation guide, rack mounting brackets and a toolless mounting kit.
