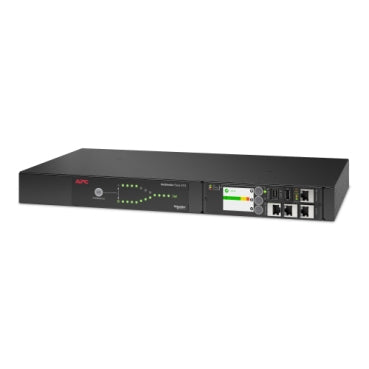

• APC AP4434A Netshelter rack ATS front view with green LEDs and Ethernet ports
1 1

APC

APC AP4434A | NetShelter Rack ATS 1U Transfer Switch, 20A, 208V, 8xC13, 1xC19

APC AP4434A | NetShelter Rack ATS 1U Transfer Switch, 20A, 208V, 8xC13, 1xC19

Authorised APC Partner

AP4434A

In stock:2

$2,016.41 inc. GST
$1,833.10 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC NetShelter Rack Automatic Transfer Switch is a 1U single-phase rack ATS rated 20A at 208V (3300VA). It feeds critical IT loads from two input sources via 2 x IEC C20 inlets and switches between them in about 10 ms if the primary source fails. Outputs are 8 x IEC C13 and 1 x IEC C19, for 50/60Hz installations.

A field-replaceable NMC3 network card with Gigabit Ethernet provides remote management through a Web UI, CLI, SNMP or EcoStruxure IT Expert, along with temperature and humidity monitoring. Up to 32 Rack ATS units can be managed from a single IP address, and the unit supports the APC Wi-Fi USB device for cableless setup.

Features

- Dual input power cords enhance uptime for critical loads
- Seamless switching with a 10 ms transfer time
- Field-replaceable NMC3 network card
- Gigabit Ethernet support
- Integrated temperature and humidity monitoring
- Manage up to 32 Rack ATS units from one IP address
- Supports APC Wi-Fi USB device for cableless setup
- Remote management via Web UI, CLI, SNMP or EcoStruxure IT Expert
- NMC3 integrated for enhanced cybersecurity
- EcoStruxure IT ready

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Model: AP4434A
- Form factor: 1U rackmount, single phase
- Rated current and voltage: 20A, 208V
- Load capacity: 3300VA
- Input connections: 2 x IEC 60320 C20
- Outlet connections: 8 x IEC 60320 C13, 1 x IEC 60320 C19
- Transfer time: 10 ms
- Input operating voltage: 187 V to 228 V
- AC input frequency: 50/60Hz
- Network management: NMC3 with Gigabit Ethernet
- Operating temperature: -5 to 45 C
- Operating relative humidity: 5 to 95%
- Dimensions (W x D x H): 432 x 236 x 44 mm
- Weight: 3.74 kg
- Colour: Black
- Certifications: cUL Listed, UL Listed, CE, UL ECOLOGO

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: How fast does the AP4434A switch between power sources?
A: The transfer time is 10 ms, so connected equipment keeps running if the primary source fails.

Q: What inlets and outlets does it provide?
A: It has 2 x IEC C20 inlets and 8 x IEC C13 plus 1 x IEC C19 outlets.

Q: Does it support remote management?
A: Yes. The NMC3 network card with Gigabit Ethernet allows management via Web UI, CLI, SNMP or EcoStruxure IT Expert.

Q: How many Rack ATS units can be managed from one IP address?
A: Up to 32 Rack ATS units can be managed from a single IP address.

Q: What voltage and load rating does this model have?
A: It is rated 20A at 208V, with a load capacity of 3300VA and an input operating range of 187 V to 228 V.

Q: How much rack space does it need?
A: It is a 1U rackmount unit, 432 mm wide, 236 mm deep and 44 mm high.
