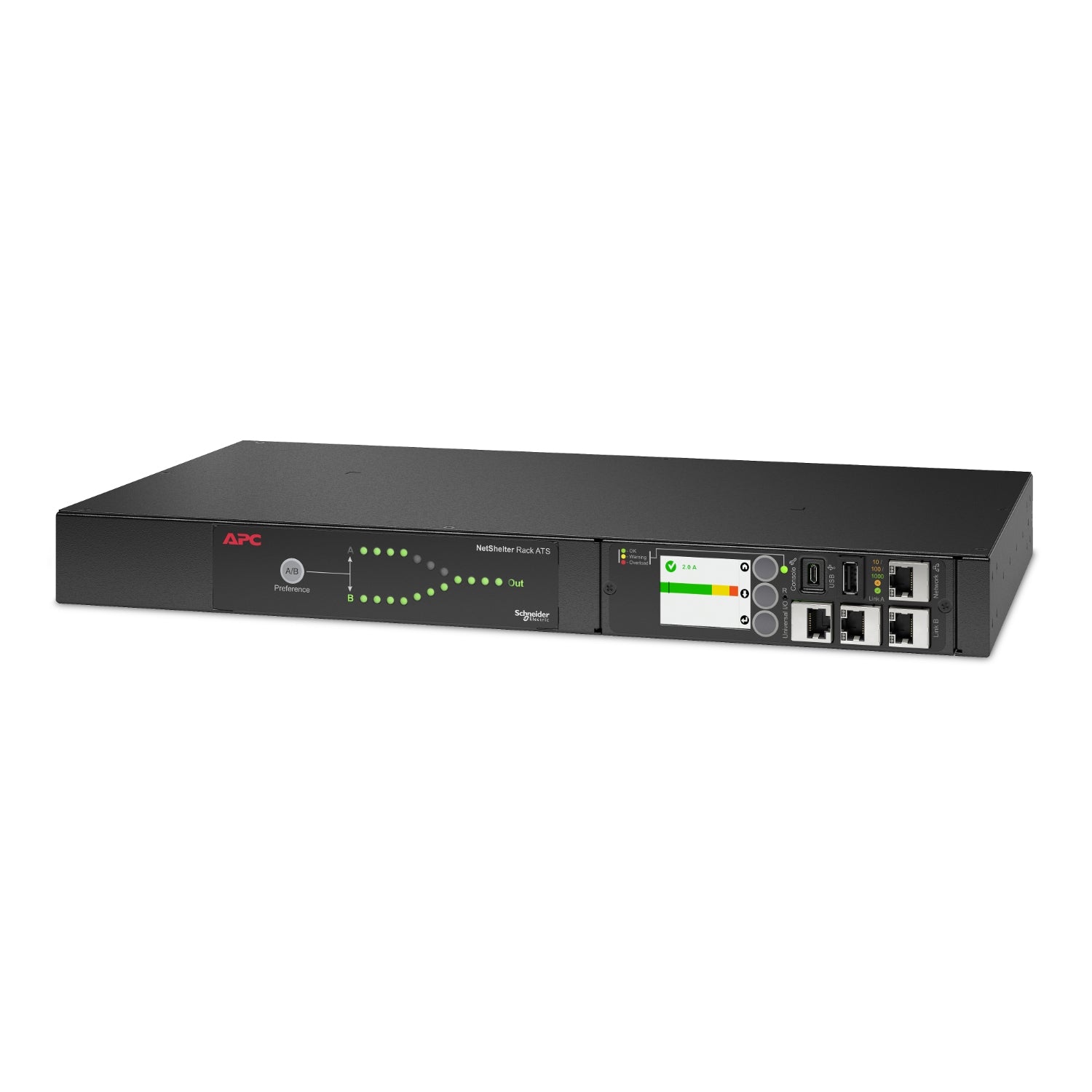

APC AP4433A | NetShelter Rack ATS, 1U, 12A, 208V, 12x C13, 2x C14

APC AP4433A | NetShelter Rack ATS, 1U, 12A, 208V, 12x C13, 2x C14

Authorised APC Partner

AP4433A

Stock Status: Enquire

$2,355.68 inc. GST
$2,141.53 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP4433A is a NetShelter 1U rack automatic transfer switch (ATS) rated at 12A and 208V, with 12 x IEC C13 outlets and 2 x IEC C14 inlets. It gives single-corded IT equipment redundant power by switching automatically between two input sources, with a transfer time of 10ms or less and 3300VA load capacity.

This fifth-generation single-phase rack ATS includes an embedded Network Management Card 3 (NMC3) with Gigabit Ethernet and USB ports. It can be managed via Web UI, SNMP and CLI, and is fully compatible with EcoStruxure IT for monitoring across the data centre or equipment room.

Features

- Seamless switching between two input sources, regardless of phase differences
- Field-replaceable Network Management Card (NMC)
- Temperature and humidity monitoring
- Connect and manage up to 32 Rack ATSs from one IP address
- Gigabit Ethernet support for network port sharing
- Enhanced network security through NMC3
- Supports the APC Wi-Fi USB device for cableless installation and setup
- Fully compatible with EcoStruxure IT

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Single phase, 1U rack-mount form factor
- 12A rated current, 208V rated voltage
- 3300VA load capacity
- 2 x IEC C14 inlets (dual input power cords)
- 12 x IEC C13 outlets
- 50/60Hz
- Transfer time of 10ms or less
- Embedded Network Management Card 3 (NMC3)
- Gigabit Ethernet (10/100/1000) and USB ports
- Management via Web UI, SNMP and CLI

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does the APC AP4433A rack ATS do?
A: It provides redundant power for single-corded IT equipment by automatically switching between two input power sources, keeping connected devices running if one source fails.

Q: What inlets and outlets does the AP4433A have?
A: It has 2 x IEC C14 inlets for the dual input power cords and 12 x IEC C13 outlets for connected equipment.

Q: How fast is the transfer between power sources?
A: The transfer time is 10ms or less, and switching works seamlessly regardless of phase differences between the two inputs.

Q: How is the AP4433A managed and monitored?
A: It has an embedded Network Management Card 3 (NMC3) with Gigabit Ethernet and USB ports, managed through Web UI, SNMP and CLI. It is fully compatible with EcoStruxure IT.

Q: Can multiple rack ATS units be managed together?
A: Yes, up to 32 Rack ATSs can be connected and managed from a single IP address.

Q: What is the voltage and current rating of this ATS?
A: The AP4433A is rated at 208V and 12A, single phase, with a 3300VA load capacity at 50/60Hz.
