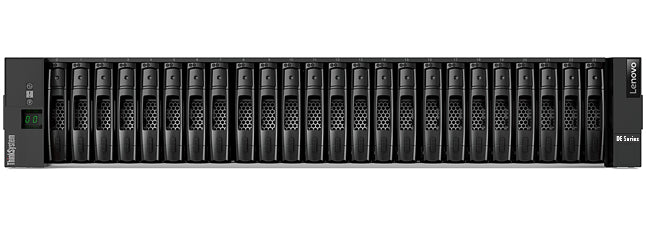

Lenovo 7Y75A002WW | ThinkSystem DE4000H 2U24 SFF Hybrid Flash Array, FC, 0TB

Authorised Lenovo Partner

SKU:7Y75A002WW

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Lenovo ThinkSystem DE4000H 2U24 SFF is a hybrid flash SAN storage array in a 2U rack chassis with 24 x 2.5-inch drive bays, supporting both HDD and SSD media. This diskless 0TB configuration includes 4 x 16Gb FC onboard ports and 8 x 16Gb FC host interface card ports, with no SFPs included, making it a flexible foundation for Fibre Channel SAN environments.

Dual controllers with 16GB of mirrored, flash-backed cache and redundant hot-swap power supplies protect data and keep the array online. RAID 0, 1, 3, 5, 6, 10 and Dynamic Disk Pools provide flexible data protection, while four 12Gb SAS expansion ports allow capacity to grow as requirements change.

Features

- Dual controllers with cache mirroring
- Flash-backed cache protection with battery for destaging to flash
- Redundant hot-swap power supplies
- Hybrid flash design supporting mixed HDD and SSD media
- Dynamic Disk Pools support
- SAS expansion ports for adding capacity

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 2U rack-mountable chassis with 24 x 2.5-inch SFF drive bays
- Diskless configuration, 0TB native capacity
- Supports HDD and SSD drives
- 4 x 16Gb/s FC LC onboard ports (no SFPs included)
- 8 x 16Gb/s FC host interface card ports (no SFPs included)
- 2 x host interface card slots
- 24 x 12Gb/s SAS internal drive connections
- 4 x 12Gb/s SAS expansion ports
- Controller cache: 16GB per system (8GB per controller), mirrored and flash-backed
- RAID 0, 1, 3, 5, 6, 10 and Dynamic Disk Pools
- Dual redundant hot-swap 913W power supplies (100-240V AC)
- Maximum system load: 409W
- Dimensions: 3.4in H x 17.7in W x 21.8in D
- RJ-45 1GbE management port, 2 x RJ-45 serial console ports, micro USB serial console port

FAQs

Q: Does this DE4000H include drives?
A: No. This is a diskless 0TB configuration with 24 x 2.5-inch SFF bays. Compatible HDDs or SSDs must be added separately.

Q: Are SFP transceivers included?
A: No. The 4 x 16Gb FC onboard ports and 8 x 16Gb FC host interface card ports ship without SFPs, so compatible 16Gb FC SFPs need to be sourced separately.

Q: What RAID levels does it support?
A: RAID 0, 1, 3, 5, 6 and 10 are supported, along with Dynamic Disk Pools.

Q: Can I mix HDD and SSD media?
A: Yes. The hybrid flash design supports both HDD and SSD drives in the same array.

Q: Can capacity be expanded?
A: Yes. The array has 4 x 12Gb SAS expansion ports for attaching additional capacity.

Q: Does it have redundant power and controllers?
A: Yes. It has dual controllers with 16GB of mirrored flash-backed cache and dual hot-swap 913W power supplies.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
