• Eaton MBP6KI HotSwap MBP 6000i PDU black industrial power distribution unit
1 1

Eaton

Eaton MBP6KI | HotSwap MBP 6000i Maintenance Bypass PDU, 6000VA, Hardwired

Eaton MBP6KI | HotSwap MBP 6000i Maintenance Bypass PDU, 6000VA, Hardwired

Authorised Eaton Partner

MBP6KI

In stock:3

$890.65 inc. GST
$809.68 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This item has been replaced by MBP6KiG2.

Description

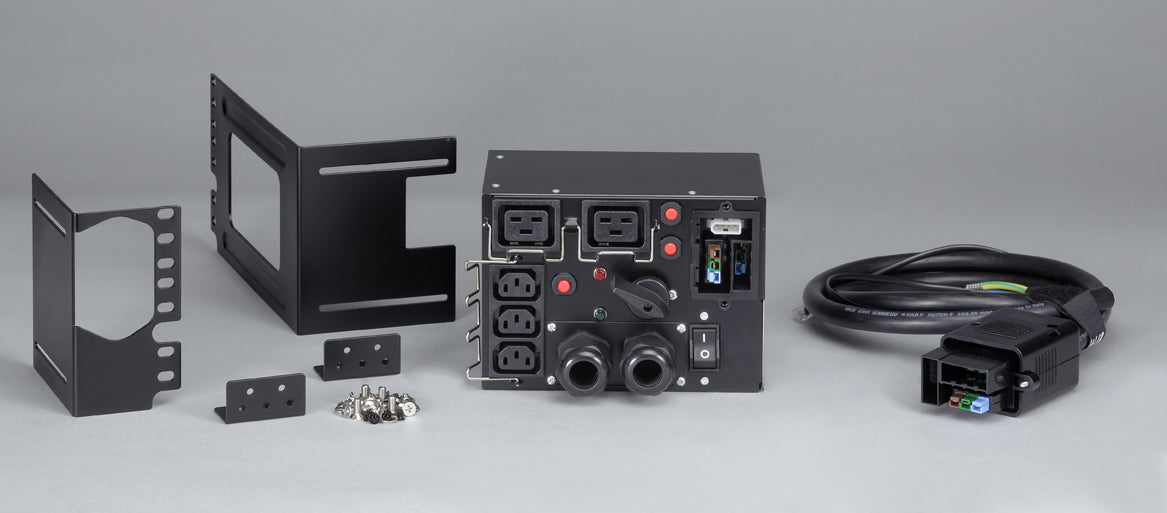

The Eaton HotSwap MBP 6000i (MBP6KI) is a 3U rack-mount maintenance bypass PDU rated at 6000 VA for 200-240V single-phase installations. It lets a connected Eaton 9SX or 9PX 5/6 kVA UPS be serviced, have its batteries replaced or be swapped out without interrupting power to the load. Input is hardwired via a screw terminal, with outputs of 3 x C13, 2 x C19 and one hardwired connection.

The bypass mounts horizontally in a 19 inch rack and includes the connection cable to the UPS, a rack-mounting kit and a cable locking system to help prevent accidental disconnection. LED indication shows status at a glance, making it a practical addition to server rooms and comms rooms where planned UPS maintenance must not cause downtime.

Features

- Maintains power continuity during UPS maintenance, battery replacement and upgrades
- Supports hot-swappable UPS replacement without interrupting the load
- Flexible mounting options including rack and rear panel, depending on model
- Cable locking system included
- LED indication
- Includes connection cable to the UPS and rack-mounting kit

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Model: HotSwap MBP 6000i (MBP6KI)
- Rating: 6000 VA
- Input voltage: 200-240V, single-phase
- Input connection: hardwired, screw terminal
- Outlets: 3 x C13, 2 x C19, 1 x hardwired
- Form factor: 3U, 19 inch rack-mountable, horizontal mounting
- Dimensions (D x H x W): 185 x 150 x 305 mm
- Weight: 3.28 kg
- Operating temperature: 0 to 40 C
- Colour: Black
- Compatible with Eaton 9SX/9PX 5/6 kVA UPS
- Certification: CE
- Included: connection cable to the UPS, rack-mounting kit, cable locking system, user manual

FAQs

Q: Which UPS models is the Eaton MBP6KI compatible with?
A: The HotSwap MBP 6000i is designed for Eaton 9SX and 9PX 5/6 kVA UPS systems.

Q: What input connection does the MBP6KI use?
A: It has a hardwired input via a screw terminal, for 200-240V single-phase supply. It does not use a plug.

Q: What outlets does the MBP6KI provide?
A: Outputs are 3 x C13, 2 x C19 and one hardwired output.

Q: Does the MBP6KI include network or SNMP management?
A: No. It has no Ethernet, serial or SNMP interface. Status is shown by LED indication.

Q: How is the MBP6KI mounted?
A: It is a 3U unit that fits a 19 inch rack in a horizontal orientation. A rack-mounting kit is included.

Q: What is included in the box?
A: The maintenance bypass, cable locking system, connection cable to the UPS, rack-mounting kit and user manual.

Replacement Battery Finder

Looking for an Eaton UPS replacement battery?

Use the official Eaton UPS Battery Finder tool to identify compatible battery replacement kits and genuine Eaton battery cartridges for your specific UPS model in Australia.

Find My Replacement Battery
