Aruba JL001A | 5400R zl2 5412R 92-Port Gigabit PoE+ Switch, 4x 10G SFP+, No PSU

Authorised Aruba Partner

SKU:JL001A

In stock:14

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

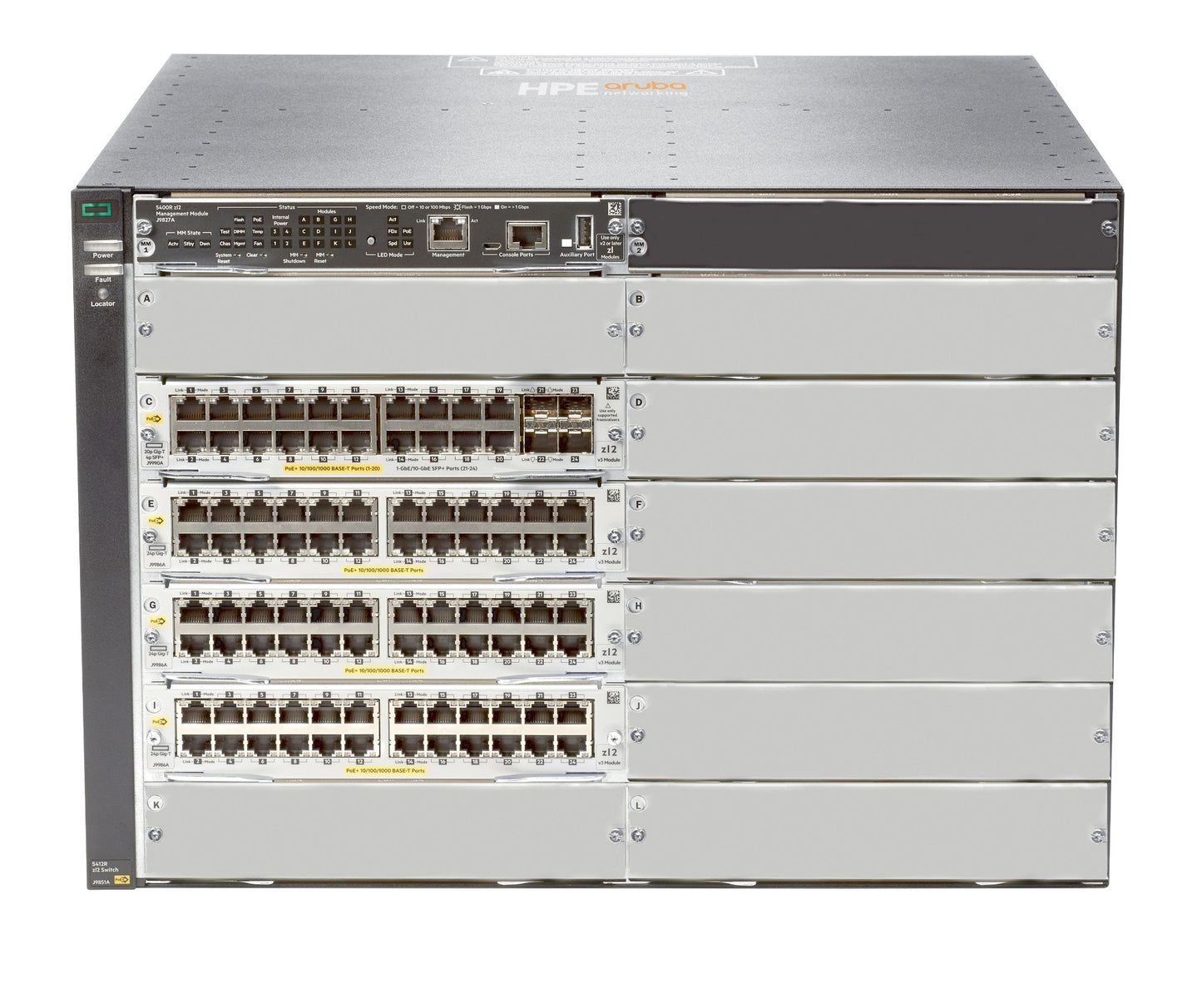

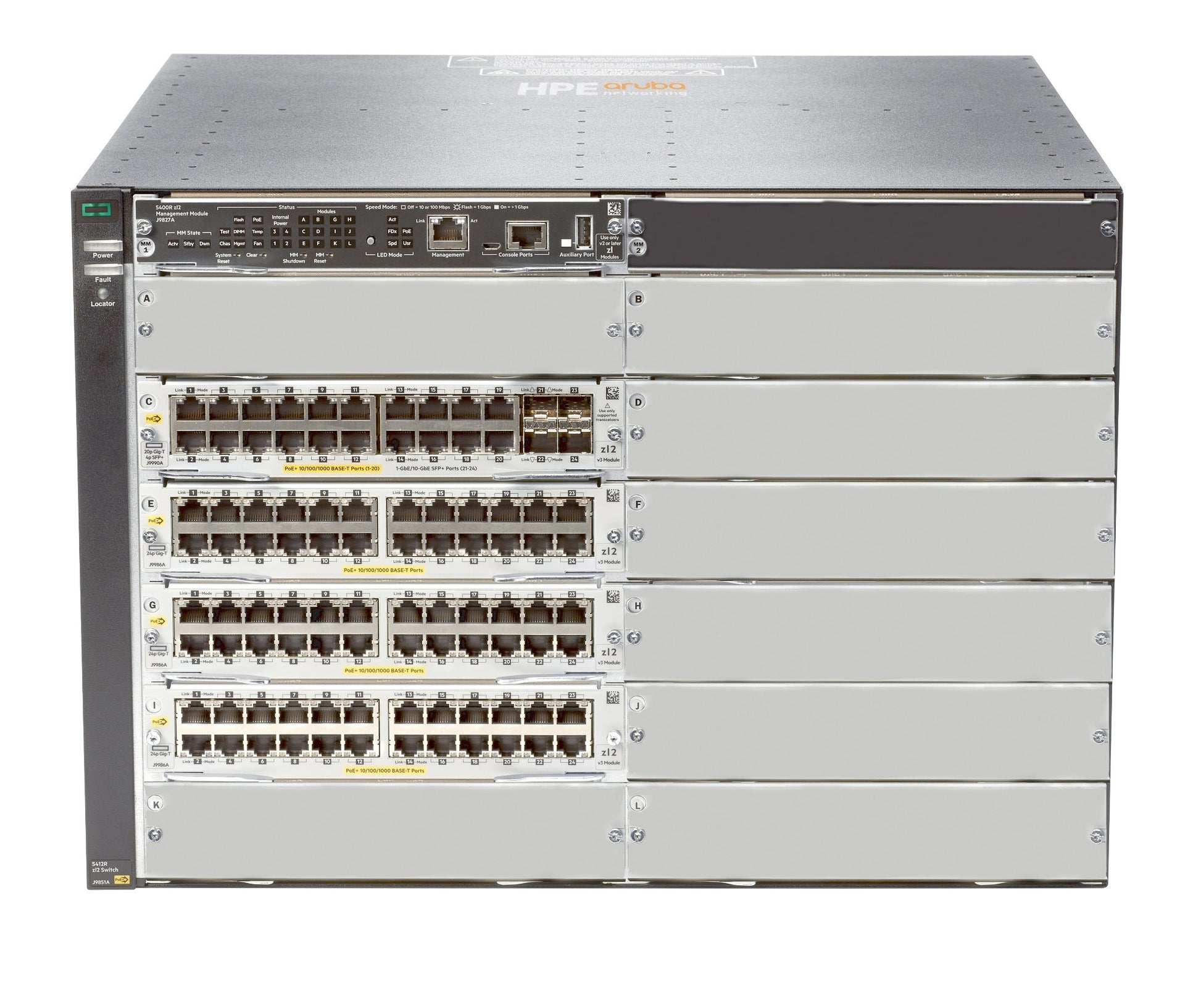

The Aruba 5412R 92-port Gigabit PoE+ Layer 3 modular chassis switch is built for enterprise campus access and aggregation. This v3 zl2 12-slot, 7U chassis supplies 92 x 10/100/1000 PoE+ ports and 4 x 1G/10GbE SFP+ slots through the included J9990A module, and ships without power supplies so you can specify the PSU configuration your PoE budget requires.

The 5400R zl2 platform delivers a 2030 Gbps switching fabric and up to 1142.8 Mpps throughput, with VSF stacking, dynamic segmentation and redundant management. It includes the J9827A management module and J9832A fan tray, leaves 8 module slots open for expansion, and requires a minimum of two power supplies (sold separately, for example the J9828A 700W PoE+ zl2 PSU).

Features

- Layer 3 modular switch with VSF stacking, dynamic segmentation and low latency
- HPE Smart Rate multigigabit and PoE+ support via modules
- Line-rate 40GbE for wireless traffic aggregation
- Redundant management and hot-swappable power supplies
- Up to 288 PoE+ ports across the series
- REST APIs and OpenFlow support
- MACsec, 802.1X, ACLs, RADIUS and TACACS+ security
- Managed via CLI, web GUI, SNMP, Aruba AirWave or Aruba Central
- Routing: static, RIP, OSPF, BGP, VRRP, PIM

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 92 x 10/100/1000BASE-T PoE+ ports
- 4 x 1G/10GbE SFP+ slots (open)
- 12-slot modular chassis, 7U, with 8 open module slots
- Included module: J9990A 20-port 10/100/1000BASE-T PoE+ / 4-port 1G/10GbE SFP+ MACsec v3 zl2
- Included accessories: J9827A management module and J9832A fan tray
- 4 power supply slots, minimum 2 power supplies required (sold separately)
- PoE standard: IEEE 802.3af / 802.3at (PoE+)
- Switching fabric: 2030 Gbps
- Routing/switching capacity: 1920 Gbps
- Throughput: up to 1142.8 Mpps
- MAC address table: 64K entries
- IPv4 routing table: 10000 entries; IPv6 routing table: 5000 entries
- Jumbo frames supported
- Memory and processor: 4 GB RAM, 1 GB flash, 1.2 GHz Freescale P2020
- 1 x RJ-45 out-of-band management port
- Dimensions (W x D x H): 17.5 x 17.8 x 12.1 in
- Weight: 20.5 kg
- Operating temperature: 0 to 45 C

FAQs

Q: Does the JL001A include power supplies?
A: No. The JL001A ships without power supplies. The chassis has 4 PSU slots and requires a minimum of two power supplies, sold separately. The J9828A 700W PoE+ zl2 PSU is one compatible option.

Q: What is included in the box with the JL001A?
A: The switch includes the J9990A 20-port 10/100/1000BASE-T PoE+ / 4-port 1G/10GbE SFP+ MACsec v3 zl2 module, the J9827A management module and the J9832A fan tray.

Q: How many module slots are available for expansion?
A: The chassis has 12 module slots in total, with 8 left open for additional zl2 modules after the included module and management module are accounted for.

Q: Is the JL001A a Layer 3 switch?
A: Yes. It is a managed modular Layer 3 switch supporting static routing, RIP, OSPF, BGP, VRRP and PIM.

Q: Do the SFP+ slots support 10G?
A: Yes. The 4 SFP+ slots are open and support 1G or 10GbE optics, so you can choose the transceivers that suit your uplink or aggregation links.

Q: How is the switch managed?
A: It can be managed via CLI, web GUI, SNMP, Aruba AirWave or Aruba Central, and it has a dedicated out-of-band RJ-45 management port. REST APIs and OpenFlow are also supported.
