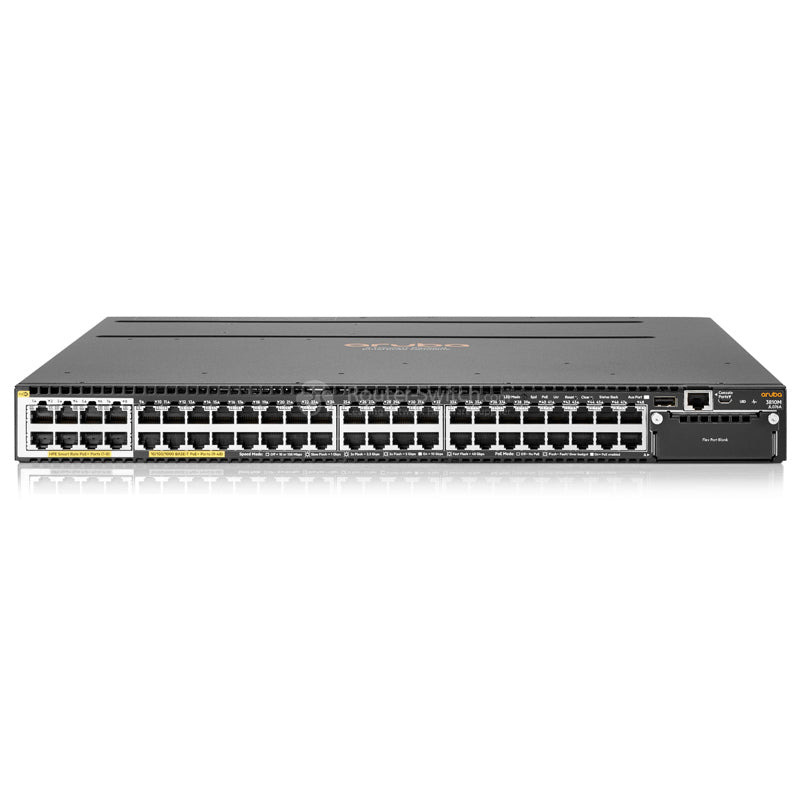

Aruba JL076A | 3810M 40-Port Gigabit PoE+ L3 Switch, 8 Smart Rate, No PSU

Authorised Aruba Partner

SKU:JL076A

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

End of life

This item has been replaced by JL660A.

Description

The Aruba 3810M 40-Port Gigabit PoE+ Layer 3 managed switch combines 40 x 10/100/1000 PoE+ ports with 8 HPE Smart Rate multi-gigabit PoE+ ports in a 1U chassis, with one open module slot for 10GbE or 40GbE uplinks. It suits campus and wireless aggregation deployments that need high PoE density, advanced routing and backplane stacking. This model ships with a fan tray but no power supply, so at least one PSU must be ordered separately.

A full Layer 2 and Layer 3 feature set is included without software licensing, covering OSPF, IPv4 BGP, IPv6, policy-based routing and robust QoS. It offers 480 Gbps switching capacity, up to 1440 W of PoE power budget with suitable power supplies, MACsec on the Gigabit ports and the Smart Rate ports, and management through ClearPass Policy Manager, AirWave and Aruba Central.

Features

- Advanced Layer 2 and 3 feature set including OSPF, IPv6, IPv4 BGP, tunneled node, QoS and policy-based routing with no software licensing
- Backplane stacking for resiliency and scalability
- Dual hot-swappable power supply slots in a 1U form factor
- HPE Smart Rate ports deliver multi-gigabit speeds and PoE+ power
- Modular line-rate 10GbE and 40GbE uplinks for wireless aggregation
- MACsec support on ports 1-40 and Smart Rate ports 1-8
- Managed through ClearPass Policy Manager, AirWave and Aruba Central
- Low latency and IPv6 Ready certification

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 40 x RJ-45 10/100/1000 PoE+ ports (IEEE 802.3at)
- 8 x RJ-45 HPE Smart Rate multi-gigabit PoE+ ports
- 1 open module slot (maximum 4 x SFP+ or 2 x 40GbE with optional module)
- 1 stacking module slot
- Switching capacity: 480 Gbps
- Throughput: up to 273.8 Mpps
- Switch fabric speed: 508 Gbps
- Maximum PoE power: 1440 W
- 2 power supply slots, no PSU included (minimum 1 required)
- Includes 1 x Aruba 3810 Switch Fan Tray (JL088A)
- Memory and processor: Dual Core ARM Cortex A9 @ 1 GHz, 2 GB DDR3 SDRAM
- Packet buffer size: 13.5 MB
- MAC address table: 64000 entries
- Routing table: 10000 IPv4 entries, 5000 IPv6 entries
- Management ports: RJ-45 serial console, RJ-45 out-of-band management, dual-personality RJ-45 or USB micro-B
- Dimensions (W x D x H): 44.25 x 43.13 x 4.39 cm, 1U
- Weight: 6.17 kg
- Operating temperature: 0 to 45 C
- 19 in rack-mount hardware included

FAQs

Q: Does the Aruba JL076A include a power supply?
A: No. The switch ships with a JL088A fan tray installed but no power supply. At least one compatible power supply must be ordered separately, and a second can be added for redundancy.

Q: How many PoE+ ports does this switch have?
A: It has 40 x 10/100/1000 PoE+ ports plus 8 HPE Smart Rate multi-gigabit PoE+ ports, all supporting IEEE 802.3at. Maximum PoE power is 1440 W.

Q: Can this switch be used for 10GbE or 40GbE uplinks?
A: Yes. The single open module slot accepts an optional module providing up to 4 x SFP+ ports or 2 x 40GbE ports.

Q: Does the 3810M support stacking?
A: Yes. It has a stacking module slot that supports backplane stacking for added resiliency and scalability.

Q: Is software licensing required for Layer 3 routing?
A: No. The Layer 2 and 3 feature set, including OSPF, IPv6, IPv4 BGP and policy-based routing, is included without software licensing.

Q: What is the difference between Smart Rate ports and standard Gigabit ports?
A: HPE Smart Rate ports are RJ-45 multi-gigabit ports that support speeds above 1 Gbps along with PoE+ power, suiting newer high-throughput wireless access points. The standard ports run at 10/100/1000 Mbps.
