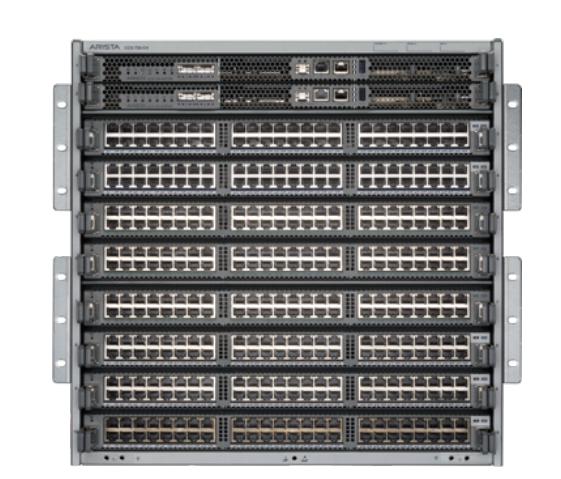

Arista CCS-758-CH | 750 Series 8-Slot Modular Campus Chassis, 2 Supervisor Slots

Authorised Arista Partner

SKU:CCS-758-CH

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Arista CCS-758-CH is an 8-slot modular campus chassis switch for the Arista 750 Series (750X), built for large PoE campus core and aggregation deployments. It provides 2 supervisor slots for redundancy, 8 line card slots and 10 hot-swap power supply slots, supporting up to 384 PoE ports per system including 60W and 90W options.

The chassis delivers up to 25G SFP and 100G QSFP uplinks through its supervisor and switch card, with MACsec on all ports and isolated control and data planes. Supervisor and switch card redundancy, together with redundant hot-swappable power and cooling, supports high availability in a 10 RU form factor.

Features

- Up to 90W PoE for high-power edge devices
- Up to 25G SFP and up to 100G QSFP uplinks
- MACsec encryption on all ports
- Isolated control plane and data planes
- Supervisor and switch card redundancy for high availability
- Redundant, hot-swappable power and cooling
- MLAG, 802.3ad LACP, 802.1Q VLANs and jumbo frames (9216 bytes)

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Chassis: 8-slot modular campus switch
- Total slots: 10 (2 supervisor + 8 line card)
- Supervisor module slots: 2, redundancy supported
- Line card slots: 8
- Power supply slots: 10 hot-swap
- Hot-swappable fans: 8
- PoE capacity: up to 384 x 10G 60W / 2.5G 60W / 1G 30W / 1/2.5/5/10G 90W ports per system
- Maximum supervisor ports: 8 x 10/25G or 4 x 40/100G
- Switch card CCS-758-X3-SC: 1.6Tbps throughput, 850Mpps
- System height: 10 RU
- Dimensions (HxWxD): 17.3 x 17.4 x 16.5 in (43.9 x 44.2 x 41.2 cm)
- Weight (empty): 69.52 lbs (31.6 kg)

FAQs

Q: How many slots does the CCS-758-CH have?
A: It has 10 slots in total for modules: 2 supervisor slots and 8 line card slots, plus 10 hot-swap power supply slots.

Q: Does the CCS-758-CH support supervisor redundancy?
A: Yes. The two supervisor slots support redundancy, and switch card redundancy is also supported for high availability.

Q: How many PoE ports can the chassis support?
A: Up to 384 PoE ports per system, including 10G and 2.5G at 60W, 1G at 30W, and 1/2.5/5/10G at 90W port types.

Q: What uplink speeds are available?
A: The supervisor supports up to 8 x 10/25G SFP or 4 x 40/100G QSFP ports for uplinks.

Q: Is the chassis supplied with line cards and supervisors?
A: This SKU is the chassis only. Supervisor modules, switch cards, line cards and power supplies are selected separately from the Arista 750 Series range.

Q: How much rack space does the CCS-758-CH require?
A: The chassis is 10 RU high, with dimensions of 17.3 x 17.4 x 16.5 in (43.9 x 44.2 x 41.2 cm) and an empty weight of 31.6 kg.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
