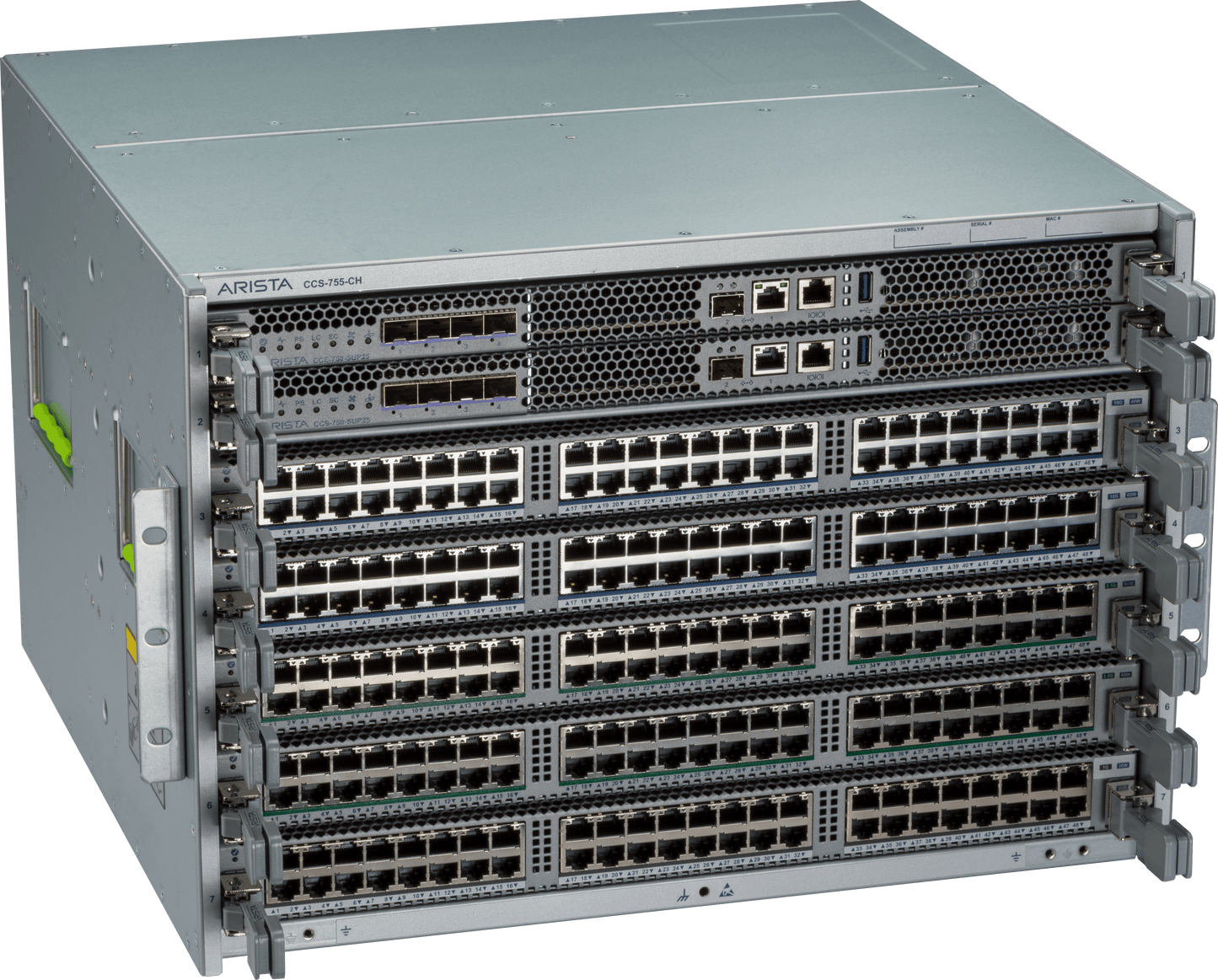

Arista CCS-758-100-BND | 750X 8-Slot Modular Campus Switch Chassis, Sup100, 1 Switch Card

Authorised Arista Partner

SKU:CCS-758-100-BND

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Arista CCS-758-100-BND is an 8-slot modular campus switch chassis bundle from the 750X Series, built for high-density PoE campus cores and wiring closets. The bundle includes the CCS-758 10RU chassis, one CCS-758-X3-SC switch card and one CCS-750-SUP100 supervisor with 2 x 100G QSFP uplinks, and the chassis supports up to 384 PoE ports at 10G 60W, 2.5G 60W, 1G 30W or 1/2.5/5/10G 90W.

The supervisor is a quad-core x86 module with 16GB of RAM and a 120GB SSD, running Arista EOS with CloudVision management and FlowTracker and LANZ telemetry. Line cards, power supplies and fan modules are ordered separately, so the system can be sized to the PoE load and port mix of the deployment. All modules are hot-swappable, and the chassis supports N+N or N+1 power redundancy.

Features

- Compact modular PoE system supporting up to 90W 802.3bt PoE
- Dual-supervisor active/standby SSO redundancy
- Built-in 802.1AE MACsec on all ports
- Smart System Upgrade (SSU) for hitless software upgrades
- Continuous PoE and dynamic PoE power management
- N+N or N+1 power redundancy and N+1 hot-swap fan redundancy
- Hot-swap of all modules
- VXLAN and EVPN segmentation, MLAG and IPv4/v6 VRFs
- Managed by CloudVision with FlowTracker telemetry and LANZ microburst detection
- Runs Arista EOS with a single binary image, Linux shell access and ZTP
- RCM (Australia/New Zealand) certified

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8-slot modular chassis, 10RU
- Includes 1 x CCS-758-X3-SC switch card, 1.6Tbps, 850Mpps
- Includes 1 x CCS-750-SUP100 supervisor with 2 x 100G QSFP uplinks
- 8 line card slots and 2 supervisor slots
- Up to 384 x 10G 60W, 2.5G 60W, 1G 30W or 1/2.5/5/10G 90W PoE ports
- 10 hot-swap power supply slots and 8 hot-swappable fans
- Supervisor: quad-core x86, 16GB RAM, 120GB SSD
- Supervisor speeds supported: 1G, 10G, 25G, 40G, 100G
- Integrated packet buffer memory: 32MB
- MAC entries: 160K maximum (default scalability mode 2)
- Switch card redundancy: 1+1 active/standby
- Dimensions (HxWxD): 43.9 x 44.2 x 41.2 cm, 31.6 kg empty
- Operating temperature: 0 to 40 C, altitude up to 3,000 m
- Minimum EOS: 4.25.1

FAQs

Q: What is included in the CCS-758-100-BND bundle?
A: The bundle includes the CCS-758 8-slot chassis, one CCS-758-X3-SC switch card and one CCS-750-SUP100 supervisor. Line cards, power supplies and fans are ordered separately.

Q: How many PoE ports can this chassis support?
A: With suitable line cards, the chassis supports up to 384 PoE ports, available as 10G 60W, 2.5G 60W, 1G 30W or 1/2.5/5/10G 90W.

Q: What uplinks does the Sup100 supervisor provide?
A: The CCS-750-SUP100 provides 2 x 100G QSFP uplink ports for 200Gbps of uplink bandwidth, supporting 1G, 10G, 25G, 40G and 100G speeds.

Q: Does the chassis support supervisor redundancy?
A: Yes. The chassis has two supervisor slots and supports dual-supervisor active/standby SSO redundancy. The switch cards also operate in a 1+1 active/standby arrangement.

Q: Are power supplies and fans included?
A: No. The chassis has 10 hot-swap power supply slots and 8 hot-swappable fans, which are ordered separately to suit your PoE load and redundancy requirements.

Q: Which software does this switch run?
A: It runs Arista EOS, minimum version 4.25.1, and can be managed with CloudVision. The licence groups are LIC-MOD-G for EOS and MOD-G for CloudVision.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
