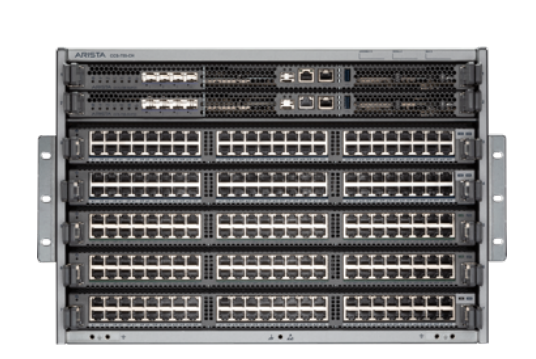

Arista CCS-755-100-BND | 750X 5-Slot Chassis Bundle, 1 Switch Card, 1 Sup100

Authorised Arista Partner

SKU:CCS-755-100-BND

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

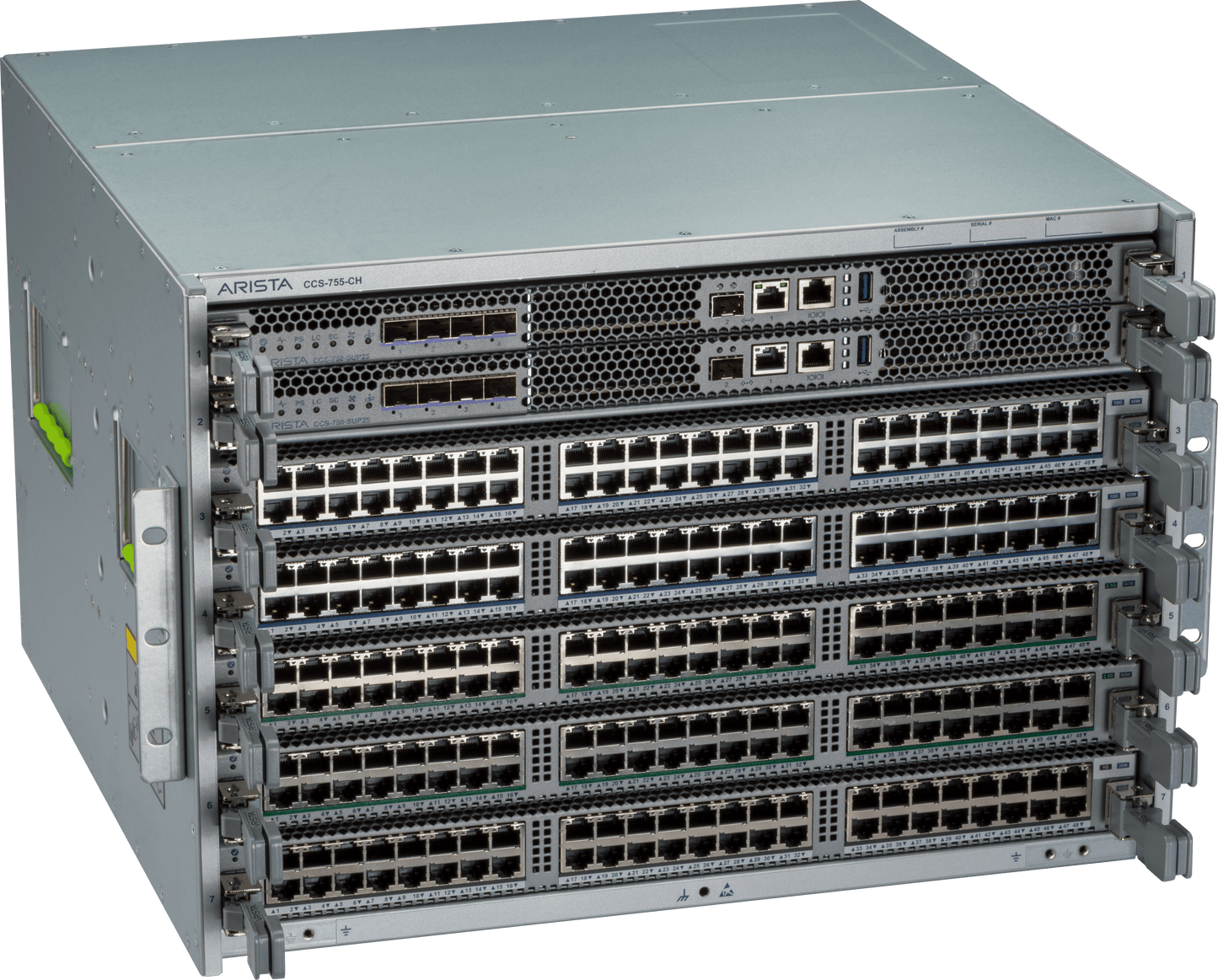

The Arista CCS-755-100-BND is a 750X 5-slot modular campus chassis bundle that includes one CCS-755-X3-SC switch card and one CCS-750-Sup100 supervisor module. It is built for campus core and aggregation deployments that need a high-density modular platform scalable to 240 multigigabit and PoE ports, with a centralised data plane on the switch card and a separate control and management plane on the supervisor.

This bundle covers the single switch card and single Sup100 configuration. Line cards and power supplies are sold separately, so you can size the chassis to your port density, PoE budget and redundancy needs. With compatible line cards it supports 10G, 2.5G, 1/2.5/5/10G and 1G ports with PoE up to 90W per port, and hot-swappable switch cards are accessed from the rear without disturbing network cabling.

Features

- Centralised switch architecture with a dedicated data plane on the switch card and a separate control and management plane on the supervisor
- Hot-swappable switch cards accessed from the rear, avoiding disruption to network cabling
- 1+1 active/standby switch card redundancy supported, with failover and no control plane change
- Intelligent power management and rich telemetry for campus networks
- PoE up to 90W per port with compatible line cards

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 5 line card slots and 2 supervisor slots
- Bundle includes 1 x CCS-755-X3-SC switch card
- Bundle includes 1 x CCS-750-Sup100 supervisor module
- Switch card throughput 1.15Tbps, 850Mpps
- System height 7 RU
- Up to 6 hot-swap power supplies and 6 hot-swap fans
- Up to 240 x 10G 60W, 2.5G 60W, 1/2.5/5/10G 90W or 1G 30W ports with line cards
- Minimum EOS 4.25.1
- EOS licence group LIC-MOD-G
- Empty chassis weight approx. 24.8 kg
- Line cards and power supplies not included

FAQs

Q: What is included in the CCS-755-100-BND bundle?
A: The bundle includes the CCS-755 5-slot chassis, one CCS-755-X3-SC switch card and one CCS-750-Sup100 supervisor module. Line cards and power supplies are not included.

Q: How does this bundle differ from CCS-755-100-BND-2?
A: This bundle includes 1 switch card and 1 Sup100 supervisor. The CCS-755-100-BND-2 variant includes 2 switch cards and 2 Sup100 supervisors.

Q: Do I need to buy line cards and power supplies separately?
A: Yes. Line cards and power supplies are sold separately so the chassis can be configured for your required port types, PoE budget and power redundancy.

Q: How many ports can this chassis support?
A: With compatible line cards it supports up to 240 ports, including 10G 60W, 2.5G 60W, 1/2.5/5/10G 90W or 1G 30W options.

Q: What software is required?
A: The platform requires a minimum of EOS 4.25.1 and uses the LIC-MOD-G EOS licence group.

Q: Can I add a second switch card later for redundancy?
A: The platform supports 1+1 active/standby switch card redundancy. Because this bundle includes a single switch card, a second card would be required to enable it.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
