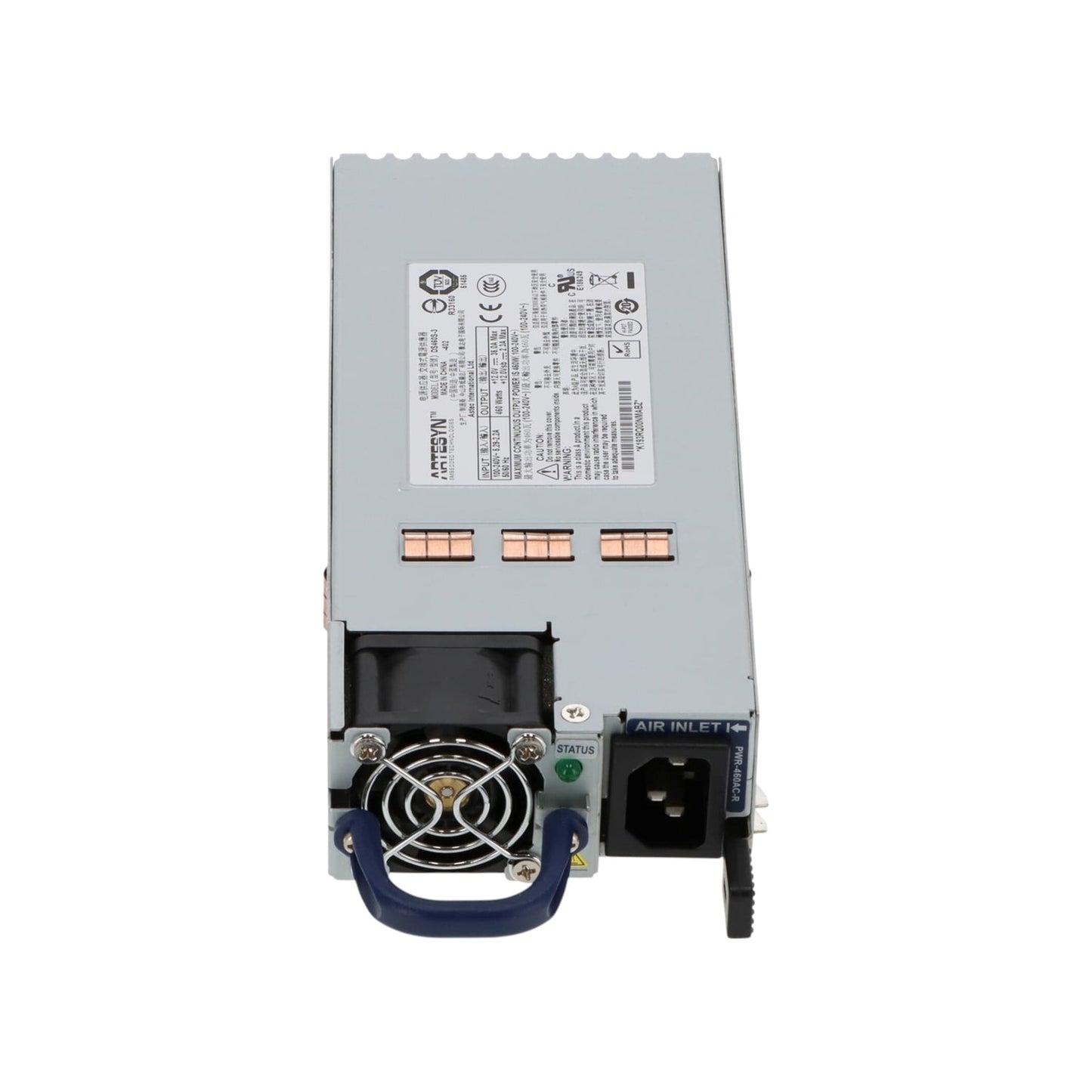

Arista PWR-460AC-R | 7050 Series 460W AC Power Supply, Rear-to-Front Airflow

Authorised Arista Partner

SKU:PWR-460AC-R

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Arista PWR-460AC-R is a 460W AC hot-swappable power supply module with rear-to-front airflow, designed for Arista 7124SX, 7050 and 7048-A switches. It suits data centre top-of-rack deployments where a failed or spare unit needs to be swapped without taking the switch offline, and where airflow must match a rear-to-front cooling layout.

The module accepts 100-240V AC input at 50/60 Hz through an IEC 320-C13 connector and supports 1+1 redundant operation, with two hot-swap power supplies per switch. For correct cooling, pair it with rear-to-front FAN-7000-R fan modules so the whole chassis draws air in the same direction.

Features

- Hot-swappable, 1+1 redundant power supply for 7050 Series switches
- Colour-coded PSU, common to Arista 1RU devices
- Rear-to-front cooling option, matched with FAN-7000-R fan modules
- Spare or replacement module for Arista 7124SX, 7050 and 7048-A switches

Warranty

Arista hardware products come with a 1-year limited hardware warranty, covering defects in materials and workmanship under normal use.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Arista products. Contact our team to explore options that align with your organisation's needs.
https://www.arista.com/assets/data/pdf/Warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Power rating: 460W
- Power type: AC
- Airflow: Rear-to-front
- Input voltage: 100-240V AC
- Input current: 2.2-5.3A
- Input frequency: 50/60Hz
- Input connector: IEC 320-C13
- Hot-swap power supplies per switch: 2 (1+1 redundant)
- Compatible with Arista 7124SX, 7050 and 7048-A switches

FAQs

Q: Which Arista switches is the PWR-460AC-R compatible with?
A: It is a spare 460W AC power supply for Arista 7124SX, 7050 and 7048-A switches.

Q: What airflow direction does this power supply use?
A: It uses rear-to-front airflow. Match it with rear-to-front FAN-7000-R fan modules so all components move air in the same direction.

Q: Can this power supply be replaced while the switch is running?
A: Yes. It is hot-swappable, and with two power supplies installed in a 1+1 redundant configuration the switch can stay online during a swap.

Q: What AC input does the PWR-460AC-R require?
A: It accepts 100-240V AC at 50/60Hz, with an input current of 2.2-5.3A, through an IEC 320-C13 connector.

Q: How many power supplies does each switch use?
A: Each switch takes two hot-swap power supplies in a 1+1 redundant arrangement.
