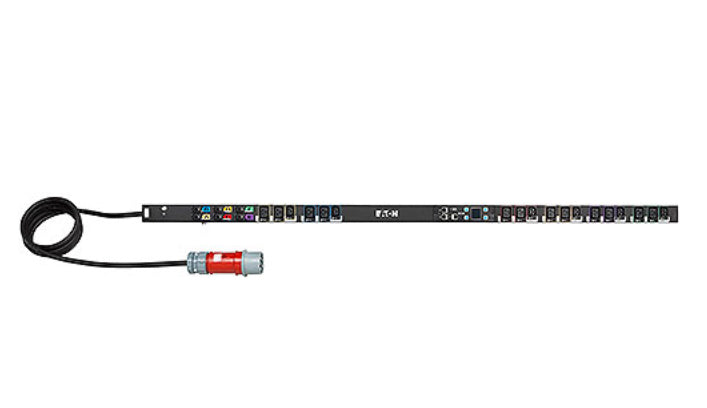

• Eaton EMIB07 ePDU metered 0U with 18 outlets and red-gray IEC309 connector
1 1

Eaton

Eaton EMIB07 | ePDU G3 Metered Input 0U Rack PDU, 3-Phase 32A, 6xC13, 12xC19

Eaton EMIB07 | ePDU G3 Metered Input 0U Rack PDU, 3-Phase 32A, 6xC13, 12xC19

Authorised Eaton Partner

EMIB07

Stock Status: Enquire

$1,640.74 inc. GST
$1,491.58 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This product is end of life. Contact us for alternatives.

Description

The Eaton EMIB07 is an ePDU G3 metered-input rack PDU in a 0U vertical form factor, built for power distribution in server and network racks. It takes a 3-phase 32A IEC 60309 input (346-415V, 50/60 Hz) through a 3 m input cord and delivers up to 22 kW across 6 x C13 and 12 x C19 outlets, a practical mix for servers, switches and high-draw equipment.

Input metering with a hot-swappable monitoring module and local LCD display lets you track load at the PDU, while the Ethernet interface supports network monitoring. Branch-level metering, colour-coded outlets and branch circuits help balance load, and eGrip IEC plug retention with P-Lock outlet security keeps connected equipment secure. It suits data centre and server room racks that need vertical, tool-less mounting without using rack units.

Features

- Phase and circuit-breaker branch-level metering for load balancing
- +/-1% IEC Class 1 billing-grade accuracy for V, A, W and kWh
- Hot-swappable monitoring module with LCD display
- eGrip IEC plug retention plus P-Lock outlet security
- Colour-coded outlets and branch circuits for simple load balancing
- Eaton hydraulic-magnetic circuit breakers with accidental trip protection
- User access control, password protection and SSL
- Up to 8 ePDUs can be daisy-chained on one IP address
- Optional temperature/humidity sensor, with up to 3 sensors daisy-chained
- Alternating phase per section on 3-phase 32A models
- Universal rack mounting system and low-profile 0U design
- 60 C operating temperature rating

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Type: Rack PDU, metered input
- Form factor: 0U vertical
- Input connection: IEC 60309 32A 3-phase
- Input voltage: 346-415V, 50/60 Hz
- Maximum power: 22 kW
- Outlets: 6 x C13 and 12 x C19
- Input cord length: 3 m
- Ethernet and serial interfaces
- Outlet control: No
- Operating temperature: 0 to 60 C (32 to 140 F)

FAQs

Q: What input does the Eaton EMIB07 require?
A: It uses a 3-phase 32A IEC 60309 input rated for 346-415V at 50/60 Hz, supplied with a 3 m input cord.

Q: How many and what type of outlets does it provide?
A: It provides 6 x C13 outlets and 12 x C19 outlets, for a total of 18 outlets.

Q: Can I switch individual outlets on and off remotely?
A: No. The EMIB07 is a metered-input model without outlet control. It measures input load and supports network monitoring.

Q: Does it take up rack space?
A: No. It is a 0U vertical PDU that mounts alongside the rack equipment using a universal rack mounting system.

Q: Can I monitor environmental conditions with it?
A: Yes. An optional temperature and humidity sensor can be added, and up to 3 sensors can be daisy-chained.

Q: Can multiple PDUs share one network connection?
A: Yes. Up to 8 ePDUs can be daisy-chained on a single IP address to simplify network monitoring.
