Yealink ZVC860-C5-000 | MCore Pro i5, ZVC860 Zoom Rooms Kit, 8GB, 128GB, UVC86, MTouch Plus

Authorised Yealink Partner

SKU:ZVC860-C5-000

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

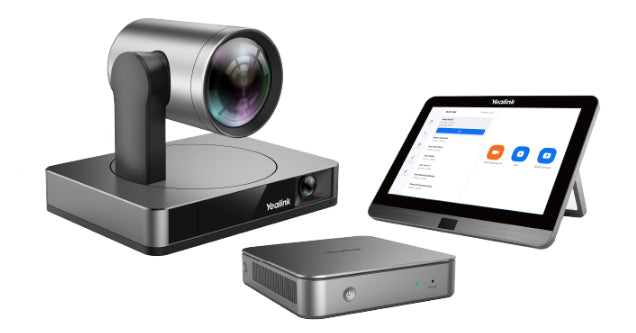

The Yealink ZVC860-C5-000 is a Zoom Rooms video conferencing system for medium and large meeting rooms. This base kit bundles an MCore Pro mini-PC (Core i5, 8GB RAM, 128GB SSD), a UVC86 4K dual-eye intelligent tracking PTZ camera with 12x optical zoom, an 11.6-inch MTouch Plus touch panel and a RoomSensor, with Zoom Rooms software pre-installed.

The UVC86 camera delivers auto-framing, speaker tracking, presenter tracking and picture-in-picture, with up to 9 camera presets. The MCore Pro provides 3 x HDMI outputs with CEC support, Bluetooth, Wi-Fi and 4 x USB 3.0 ports, and the system supports Zoom Smart Gallery and Intelligent Director. Optional Yealink microphones, the MSpeaker II and the WPP30 wireless presentation pod can be added to suit room size.

Features

- Pre-installed with Zoom Rooms software
- Auto-framing, speaker tracking and presenter tracking with area trigger and gesture control
- Multi-focus and picture-in-picture camera modes
- Up to 9 camera preset positions
- Supports Zoom Smart Gallery and Intelligent Director
- Multiple MTouch Plus panels can be used in the same room, wall or table mounted
- Flexible audio options with wired and wireless microphones

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- UVC86 4K dual-eye intelligent tracking PTZ camera with 12x optical zoom
- Panoramic lens: 120 degree DFOV, 110 degree HFOV, 78 degree VFOV
- MCore Pro mini-PC: 11th Gen Intel Core i5, 8GB RAM (2x4GB), 128GB SSD
- 3 x HDMI video output with CEC support and built-in EDID adapter
- Bluetooth and Wi-Fi
- 4 x USB 3.0 ports
- 1 x MTouch port (RJ45) for the MTouch Plus
- MTouch Plus: 11.6-inch 1920x1080 touch panel
- RoomSensor detects occupancy, temperature, humidity and light
- Optional accessories: VCM35, VCM36-W, VCM38, CPW65 microphones, MSpeaker II, WPP30

FAQs

Q: What is included in the ZVC860-C5-000 kit?
A: The base kit includes an MCore Pro mini-PC (Core i5, 8GB RAM, 128GB SSD), a UVC86 4K intelligent tracking PTZ camera, an 11.6-inch MTouch Plus touch panel and a RoomSensor.

Q: What room size is the ZVC860 designed for?
A: It is designed for medium and large meeting rooms, with a 12x optical zoom camera and support for additional microphones to extend audio coverage.

Q: Does it come with Zoom Rooms software?
A: Yes, the MCore Pro is pre-installed with Zoom Rooms software, so the system is ready for Zoom Rooms deployment.

Q: What camera tracking features does the UVC86 offer?
A: The UVC86 supports auto-framing, speaker tracking, presenter tracking with area trigger and gesture control, multi-focus and picture-in-picture, plus up to 9 camera presets.

Q: Can I connect more than one display?
A: Yes, the MCore Pro provides 3 x HDMI video outputs with CEC support and a built-in EDID adapter.

Q: Can I add extra microphones or speakers?
A: Yes, optional accessories include the VCM35, VCM36-W, VCM38 and CPW65 microphones, the MSpeaker II, and the WPP30 wireless presentation pod.
