Yealink ZVC S90-C5U-004 | Zoom Rooms Kit, 2x UVC86 4K PTZ, MCore 4, MTouch Plus, AVHub

Authorised Yealink Partner

SKU:ZVC S90-C5U-004

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

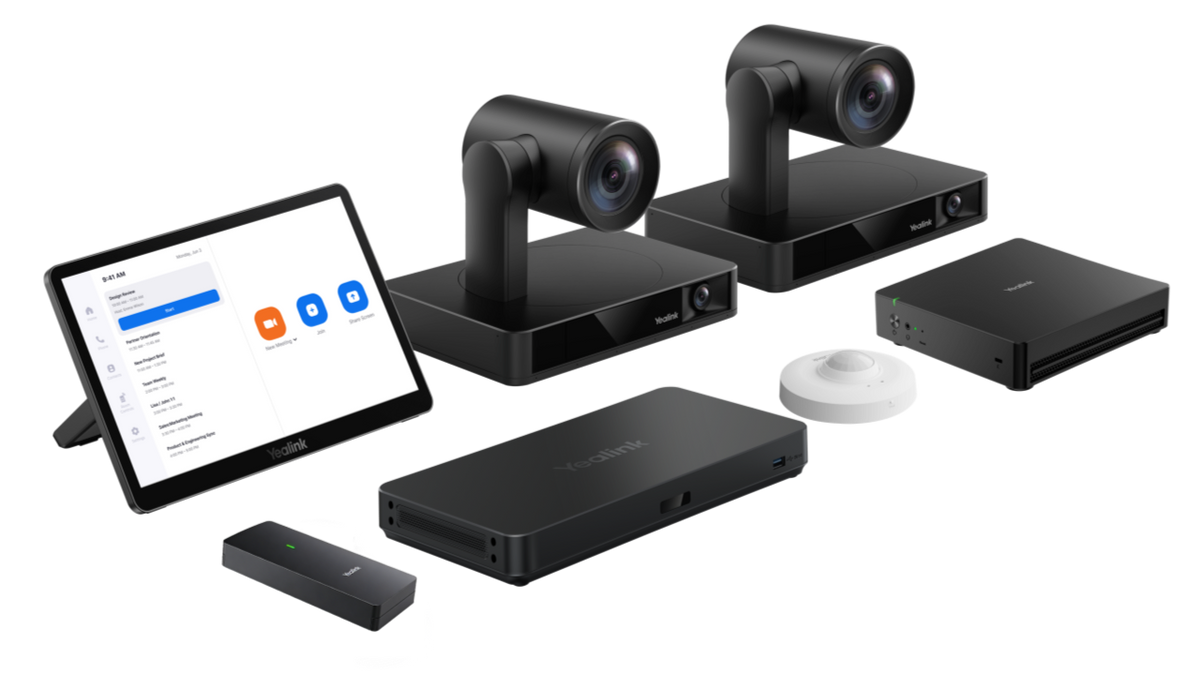

The Yealink ZVC S90-C5U-004 is a native Zoom Rooms kit built for extra-large meeting rooms. It combines an MCore 4 mini-PC (Intel Ultra5 125H, 16GB DDR5, 256GB SSD), an 11.6-inch MTouch Plus touch console and two UVC86 4K dual-eye PTZ cameras, with an AVHub audio/video processor, a RoomSensor and an MVC-BYOD-Extender. Windows 11 IoT Enterprise and the Zoom Rooms app come preloaded for one-click meetings, call control, camera adjustment and content sharing.

The AVHub supports multi-camera setups of up to 9 cameras, multi-speaker tracking and dividable or merging meeting rooms, so the kit scales to large boardrooms and training spaces. The RoomSensor wakes the system when people enter and reports temperature and humidity on the MTouch Plus. Wired and wireless content sharing and a USB BYOD extender let laptop users join with the room's cameras and audio.

Features

- Native Zoom Rooms interface with one-click conferencing, call control, camera adjustment and content sharing from the MTouch Plus
- Dual UVC86 4K cameras with 12x optical zoom and intelligent follow-up shooting
- AI camera features including auto-framing, speaker tracking, presenter tracking and picture-in-picture
- AVHub enables multi-camera solutions of up to 9 cameras and multi-speaker tracking
- Dividable and merging meeting room support via the AVHub
- RoomSensor wakes the system when people enter and shows temperature and humidity on the MTouch Plus
- Wired and wireless screen sharing
- BYOD extender lets a laptop use the room's audio and video equipment over USB
- Intel Ultra5 125H processor with AI computing capability
- Simple deployment and remote management

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- MCore 4 mini-PC: Intel Ultra5 125H, 16GB (2x8GB) DDR5, 256GB SSD
- 2 x UVC86 4K dual-eye PTZ cameras, 12x optical zoom (20.4x HD zoom)
- MTouch Plus 11.6-inch IPS touch console, 1920 x 1080
- AVHub audio/video processor with 7 x VCH ports, supports up to 9 cameras
- RoomSensor: occupancy, temperature and humidity detection
- MVC-BYOD-Extender USB BYOD adapter
- MCore 4 wireless: Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2
- MCore 4 video outputs: 1 x HDMI 2.1 and 2 x HDMI 2.0, plus 1 x HDMI-In
- UVC86 field of view (telephoto): 90 deg DFOV, 81 deg HFOV, 50 deg VFOV
- UVC86 rotation: 200 degrees horizontal, 130 degrees vertical, up to 9 presets
- Windows 11 IoT Enterprise with Zoom Rooms app and Yealink RoomConnect preloaded

FAQs

Q: What is included in the ZVC S90-C5U-004 kit?
A: The kit includes an MCore 4 mini-PC, an MTouch Plus touch console, a RoomSensor, two UVC86 4K PTZ cameras, an AVHub and an MVC-BYOD-Extender.

Q: What room size is this kit designed for?
A: This configuration is intended for extra-large meeting rooms. Two UVC86 cameras and the AVHub support multi-camera coverage and multi-speaker tracking.

Q: Does it run Zoom Rooms out of the box?
A: Yes. The MCore 4 ships with Windows 11 IoT Enterprise and the Zoom Rooms app preloaded, and meetings are controlled from the MTouch Plus.

Q: Can I connect more than two cameras?
A: Yes. The AVHub supports up to 9 cameras through its 7 x VCH ports, which allows larger multi-camera room designs.

Q: What does the MVC-BYOD-Extender do?
A: It provides a USB bring-your-own-device connection so a laptop can use the room's cameras, microphones and speakers for meetings in any conferencing app.

Q: What does the RoomSensor detect?
A: The RoomSensor detects room occupancy, temperature and humidity. It wakes the system when people enter and shows environmental readings on the MTouch Plus.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
