Yealink ZVC S80-C5U-000 | Zoom Rooms System, SmartVision 80, MCore 4, MTouch Plus

Name: Yealink ZVC S80-C5U-000 | Zoom Rooms System, SmartVision 80, MCore 4, MTouch Plus
Brand: Yealink
SKU: ZVC S80-C5U-000
Price: 8213.65 AUD
Availability: BackOrder

Authorised Yealink Partner

SKU:ZVC S80-C5U-000

Stock Status: Enquire

$8,213.65 inc. GST

$7,466.95 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

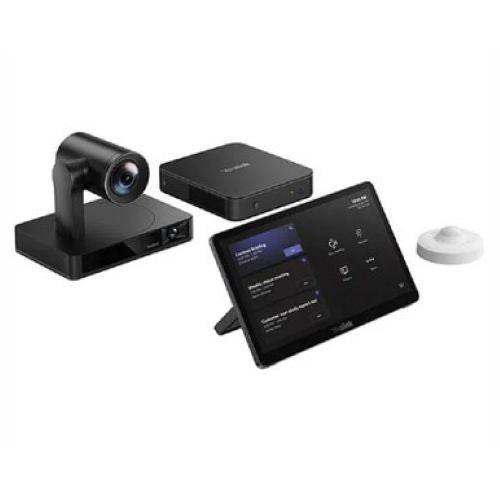

The Yealink ZVC S80-C5U-000 is a complete native Zoom Rooms video conferencing system for medium-to-large meeting spaces. It combines the MCore 4 mini-PC (Intel Ultra5 125H, 16GB DDR5, 256GB SSD), the four-lens SmartVision 80 camera, the 11.6-inch MTouch Plus touch controller and a RoomSensor, so one kit covers compute, camera, control and room sensing.

The SmartVision 80 pairs a 20x optical zoom PTZ camera with a panoramic camera and two telephoto cameras, supporting IntelliFocus, Speaker Tracking, Presenter Tracking and Auto Framing. The system runs Windows 11 IoT Enterprise with the Zoom Rooms app and Yealink RoomConnect preloaded, and connects the MCore 4 and MTouch Plus over a single CAT5e cable for data and power.

Features

- Four-lens camera with a PTZ camera and three electronic cameras (one panoramic, two telephoto)
- Tracking modes: IntelliFocus, Presenter Tracking, Speaker Tracking and Auto Framing
- Multi-camera IntelliFocus and IntelliFrame when several SmartVision 80 units are used together
- Native Zoom Rooms interface with one-touch join, call control, camera adjustment and content sharing
- RoomSensor wakes the system when people enter and shows room temperature and humidity on the MTouch Plus
- Wireless sharing with the Yealink dongle at 1080p/30fps, plus wired sharing via the MTouch cable (USB-C or HDMI)
- 4K auxiliary stream input through the MCore 4 HDMI-In
- Single CAT5e cable connects the MCore 4 and MTouch Plus for data and power
- Compatible with Yealink audio devices such as VCM35/36, CM20 and MSpeaker Pro
- Remote management through Yealink Device Management Platform / Cloud Service

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- MCore 4 mini-PC: Intel Ultra5 125H, 16GB (2x8GB) DDR5, 256GB SSD
- SmartVision 80 four-lens camera: PTZ plus panoramic and 2 telephoto lenses
- PTZ camera: 20x optical zoom, 69 degree DFOV, 61.5 degree HFOV, 36 degree VFOV
- Panoramic camera: 110 degree DFOV, 98 degree HFOV, 82 degree VFOV
- Telephoto camera: 51 degree DFOV, 41.6 degree HFOV, 32 degree VFOV
- MTouch Plus: 11.6-inch narrow bezel IPS touch display, 1920 x 1080
- MTouch Plus screen angle to desktop 30 to 70 degrees, support frame adjustable 50 to 180 degrees
- RoomSensor: occupancy, temperature and humidity detection, 120 degree detection angle (adjustable +/-20 degrees)
- MCore 4 video interfaces: 1 x HDMI-Out 2.1, 2 x HDMI-Out 2.0, 1 x HDMI-In
- MCore 4 USB: 4 x USB 3.0 Type-A
- MCore 4 network: 1 x 10/100/1000 Gigabit Ethernet, 1 x LAN port for AV network, 1 x MTouch port (RJ-45)
- SmartVision 80 interfaces: USB 3.0 Type-B, USB 2.0 Type-A, 2 x VCH port (RJ45), network port (RJ45), HDMI out, line in, line out
- Wi-Fi 802.11 a/b/g/n/ac/ax and Bluetooth 5.2
- Preloaded Windows 11 IoT Enterprise, Zoom Rooms app and Yealink RoomConnect
- Package contents: MCore 4, MTouch Plus, RoomSensor, SmartVision 80

FAQs

Q: What is included in the Yealink ZVC S80-C5U-000 kit?
A: The kit includes the MCore 4 mini-PC, the SmartVision 80 four-lens camera, the MTouch Plus 11.6-inch touch controller and a RoomSensor.

Q: What software is preloaded on this system?
A: It ships with Windows 11 IoT Enterprise, the Zoom Rooms app and Yealink RoomConnect preloaded on the MCore 4.

Q: What room size is this system designed for?
A: It is designed for medium-to-large meeting spaces, using a 20x optical zoom PTZ camera together with panoramic and telephoto lenses.

Q: How does the MTouch Plus connect to the MCore 4?
A: A single CAT5e cable connects the MCore 4 and MTouch Plus, carrying both data and power.

Q: Can I share content wirelessly in the meeting room?
A: Yes. Wireless sharing is supported with the Yealink dongle at 1080p/30fps, and wired sharing is available via the MTouch cable using USB-C or HDMI.

Q: Does this system use Zoom Rooms natively?
A: Yes. The MTouch Plus runs the native Zoom Rooms interface with one-touch join, call control, camera adjustment and content sharing.
