Yealink ZVC S50-C5U-000 | Zoom Rooms Kit, MeetingBar A50, MCore 4, MTouch Plus

Name: Yealink ZVC S50-C5U-000 | Zoom Rooms Kit, MeetingBar A50, MCore 4, MTouch Plus
Brand: Yealink
SKU: ZVC S50-C5U-000
Price: 7829.09 AUD
Availability: BackOrder

Authorised Yealink Partner

SKU:ZVC S50-C5U-000

Stock Status: Enquire

$7,829.09 inc. GST

$7,117.35 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

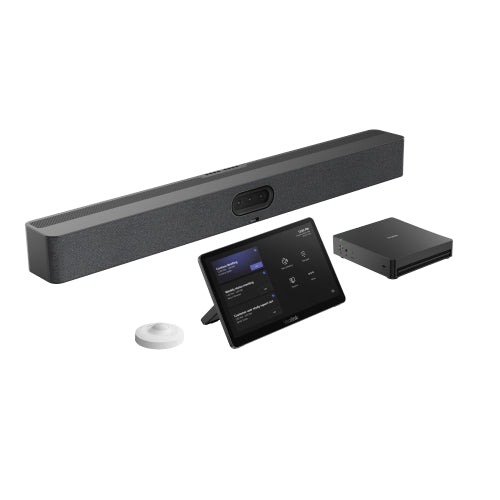

The Yealink ZVC S50-C5U is a native Zoom Rooms video conferencing kit for medium and large meeting rooms. It bundles the MeetingBar A50 all-in-one triple-camera video bar, an MCore 4 mini-PC (Intel Ultra5 125H, 16GB DDR5, 256GB SSD), an 11.6-inch MTouch Plus touch controller and a RoomSensor, giving you a complete Zoom Rooms system from a single SKU.

The MeetingBar A50 uses three 50MP cameras, one wide-angle and two telephoto, with AI-driven framing and speaker tracking. The MCore 4 runs Windows 11 IoT Enterprise with the Zoom Rooms app preloaded, and supports wired and wireless content sharing, three HDMI outputs, Wi-Fi 6 and Bluetooth 5.2. The RoomSensor wakes the system when people enter and displays room temperature and humidity on the MTouch Plus.

Features

- Triple-camera design with one wide-angle and two telephoto 50MP cameras
- Built-in automatic physical privacy shutter
- AI features including IntelliFocus and Video Fence, with speaker detection, framing and multi-stream output
- Native Zoom Rooms interface with one-click join, call control, camera adjustment and content sharing
- RoomSensor wakes the system when people enter and shows temperature and humidity on the MTouch Plus
- Wired content sharing via USB-C or HDMI, and wireless sharing via the Yealink dongle at 1080p/30fps
- Single CAT5e cable between MCore 4 and MTouch Plus carries both data and power
- Remote management through Yealink Device Management Platform and Cloud Service

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- MeetingBar A50 all-in-one video bar with three 50MP cameras (1 wide, 2 tele)
- Wide camera: HFOV 98°, VFOV 81°; tele cameras: HFOV 41.6°, VFOV 31.8°
- 8x digital zoom, electronic gimbal, 9 preset positions
- MCore 4 mini-PC: Intel Ultra5 125H, 16GB (2x8GB) DDR5, 256GB SSD
- MCore 4 interfaces: 1 x HDMI-Out 2.1, 2 x HDMI-Out 2.0, 1 x HDMI-In, 4 x USB 3.0 Type-A, Gigabit Ethernet, 3.5mm headphone
- MCore 4 wireless: Wi-Fi 6 (802.11a/b/g/n/ac/ax), Bluetooth 5.2
- Windows 11 IoT Enterprise with licence, Zoom Rooms app and Yealink RoomConnect preloaded
- MTouch Plus: 11.6-inch narrow bezel IPS touch display, 1920 x 1080
- MTouch Plus deployment: desktop placement, desktop fixed or wall-mounted
- RoomSensor: 120° detection angle, adjustable ±20°, 0 to 40 °C operating temperature
- MeetingBar A50 interfaces: USB 3.0 Type-A, USB 3.0 Type-B, USB 2.0 Type-C, Ethernet, 2 x Yealink VCH (RJ-45), 2 x HDMI-out, 3.5mm line-in/line-out
- MeetingBar A50 dimensions: 910 x 88 x 102 mm

FAQs

Q: What is included in the Yealink ZVC S50-C5U kit?
A: The kit includes the MCore 4 mini-PC, the MTouch Plus touch controller, the RoomSensor and the MeetingBar A50 all-in-one video collaboration bar.

Q: Which platform does this kit run?
A: It is a native Zoom Rooms system. The MCore 4 runs Windows 11 IoT Enterprise with the Zoom Rooms app and Yealink RoomConnect preloaded.

Q: What are the MCore 4 hardware specifications?
A: The MCore 4 is built on an Intel Ultra5 125H processor with 16GB (2x8GB) DDR5 memory and a 256GB SSD, with Wi-Fi 6 and Bluetooth 5.2.

Q: How is content shared in the room?
A: Content can be shared by wire via USB-C or HDMI, or wirelessly using the Yealink dongle at 1080p/30fps. The MCore 4 also provides a 4K HDMI-In auxiliary stream.

Q: How does the MTouch Plus connect to the MCore 4?
A: A single CAT5e cable between the MCore 4 and the MTouch Plus carries both data and power.

Q: What does the RoomSensor do?
A: The RoomSensor wakes the system when people enter the room and shows room temperature and humidity on the MTouch Plus. It has a 120° detection angle that can be adjusted by ±20°.
