Yealink ZVC S40-C5U-000 | Zoom Rooms System, Intel Ultra5 125H, 16GB, 256GB, SmartVision 40

Name: Yealink ZVC S40-C5U-000 | Zoom Rooms System, Intel Ultra5 125H, 16GB, 256GB, SmartVision 40
Brand: Yealink
SKU: ZVC S40-C5U-000
Price: 5471.13 AUD
Availability: BackOrder

Authorised Yealink Partner

SKU:ZVC S40-C5U-000

Stock Status: Enquire

$5,471.13 inc. GST

$4,973.75 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

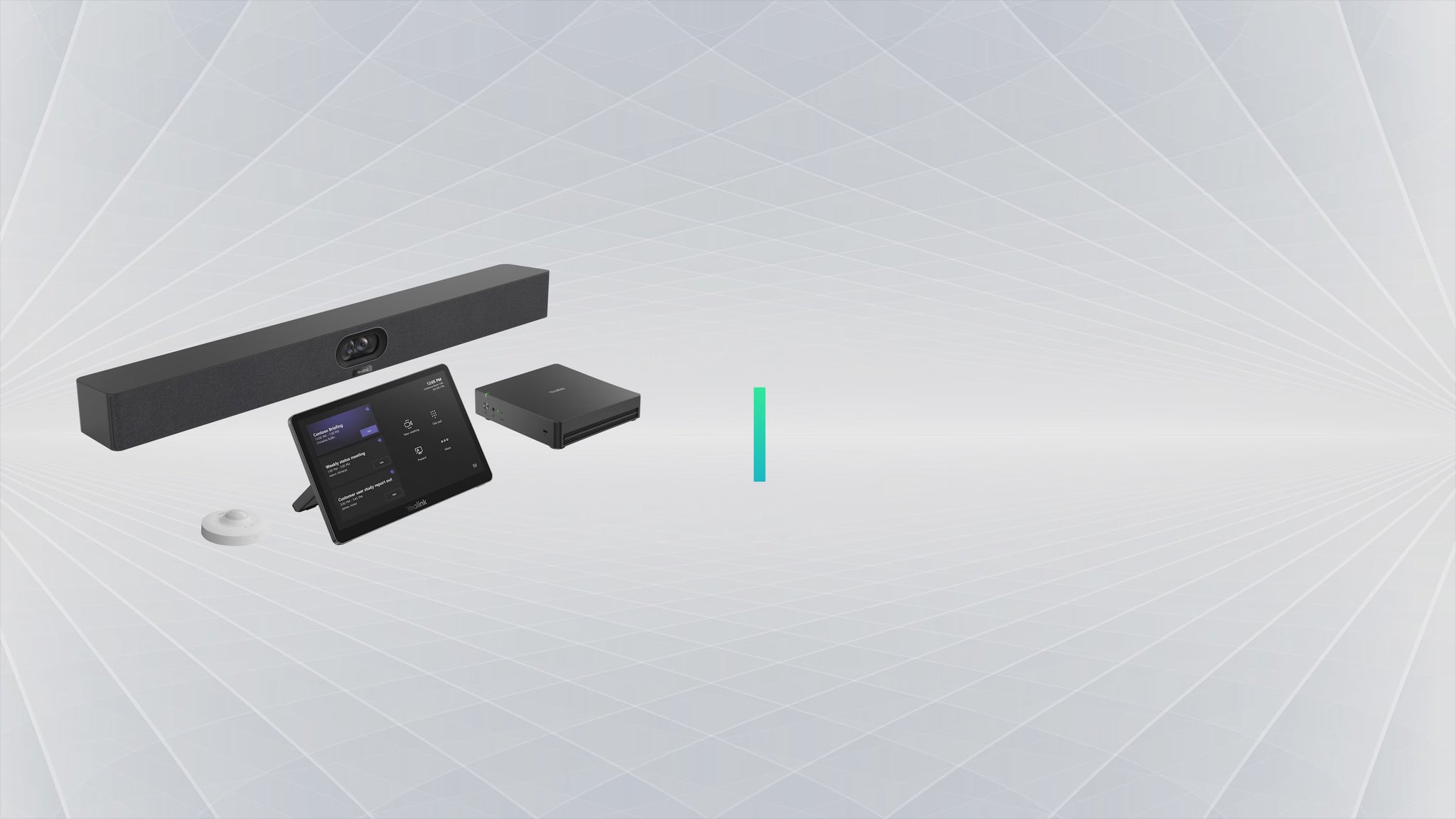

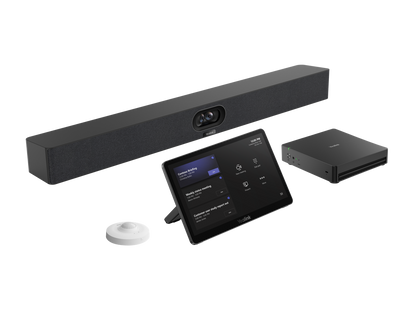

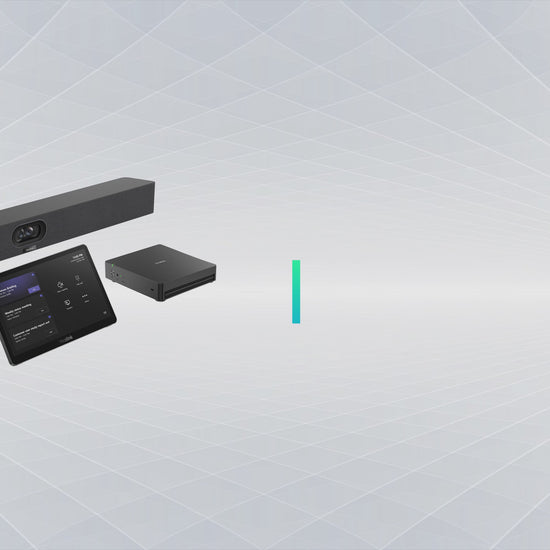

The Yealink ZVC S40-C5U is a Zoom Rooms video conferencing system for small and medium meeting rooms. It bundles the MCore 4 mini-PC (Intel Ultra5 125H, 16GB DDR5, 256GB SSD), the SmartVision 40 all-in-one AI camera and audio bar, the MTouch Plus 11.6-inch touch panel and a RoomSensor, giving a complete native Zoom Rooms setup with one-touch join.

The SmartVision 40 combines dual 48MP cameras with a 120° diagonal field of view and AI framing and tracking through IntelliFocus, IntelliFrame and Video Fence. The MTouch Plus connects to the MCore 4 over a single CAT5e cable for data and power, and supports wired HDMI/USB-C and wireless WPP30 content sharing. The system ships preloaded with Windows 11 IoT Enterprise and the Zoom Rooms app.

Features

- Native Zoom Rooms experience with one-touch join
- AI framing and tracking with IntelliFocus, IntelliFrame and Video Fence
- Dual 48MP camera in an all-in-one audio and video bar
- Two optional extension microphones to cover larger rooms
- Simple installation with one CAT5e cable between MCore 4 and MTouch Plus
- RoomSensor connects wirelessly via BLE with no extra cabling
- Wired and wireless content sharing

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- MCore 4 Gen-4 mini-PC with Intel Ultra5 125H processor
- 16GB (2x8GB) DDR5 memory and 256GB SSD
- MCore 4 video output: 3 x HDMI; video input: 1 x HDMI-In (4K)
- MCore 4 wireless: Wi-Fi 802.11 a/b/g/n/ac/ax and Bluetooth 5.2
- SmartVision 40: dual 48MP cameras, 120° DFOV
- SmartVision 40 voice pickup range of 6 m, expandable with two extension microphones
- MTouch Plus: 11.6-inch IPS touch panel, 1920x1080
- MTouch Plus connects to MCore 4 via a single CAT5e cable for data and power
- MTouch Plus content sharing: wired (HDMI/USB-C video input) and wireless (WPP30)
- RoomSensor: 120° detection angle (±20° adjustable), BLE connectivity
- RoomSensor operating temperature 0 to 40 C, humidity 10 to 95%
- Preloaded Windows 11 IoT Enterprise x64 with licence, Zoom Rooms app and Yealink RoomConnect
- Package contents: MCore 4, MTouch Plus, RoomSensor, SmartVision 40

FAQs

Q: Is this kit for Zoom Rooms or Microsoft Teams Rooms?
A: The ZVC S40-C5U is the Zoom Rooms version of the system and is preloaded with the Zoom Rooms app. Yealink also offers a Teams Rooms equivalent, the MVC S40-C5U.

Q: What is included in the kit?
A: The kit includes the MCore 4 mini-PC, the SmartVision 40 all-in-one audio and video device, the MTouch Plus touch panel and a RoomSensor.

Q: What operating system and software come preinstalled?
A: The MCore 4 ships with Windows 11 IoT Enterprise x64 (licence included), the Zoom Rooms app and Yealink RoomConnect.

Q: How is the MTouch Plus connected?
A: The MTouch Plus connects to the MCore 4 over a single CAT5e cable that carries both data and power. It can be placed on a desk, fixed to the desk or wall-mounted.

Q: How do users share content in the meeting room?
A: The MTouch Plus supports wired sharing through HDMI or USB-C video input and wireless sharing through the WPP30. An external PD power supply is used for the sharing device.

Q: Can the audio pickup be extended for larger rooms?
A: Yes. The SmartVision 40 offers a 6 m voice pickup range and can be expanded with two extension microphones.
