Yealink YPS20 | Partition Sensor, Wired, Black, GPIO, 1.5m IR Detection

Name: Yealink YPS20 | Partition Sensor, Wired, Black, GPIO, 1.5m IR Detection
Brand: Yealink
SKU: YPS20
Price: 493.35 AUD
Availability: InStock

Authorised Yealink Partner

SKU:YPS20

In stock:19

$493.35 inc. GST

$448.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

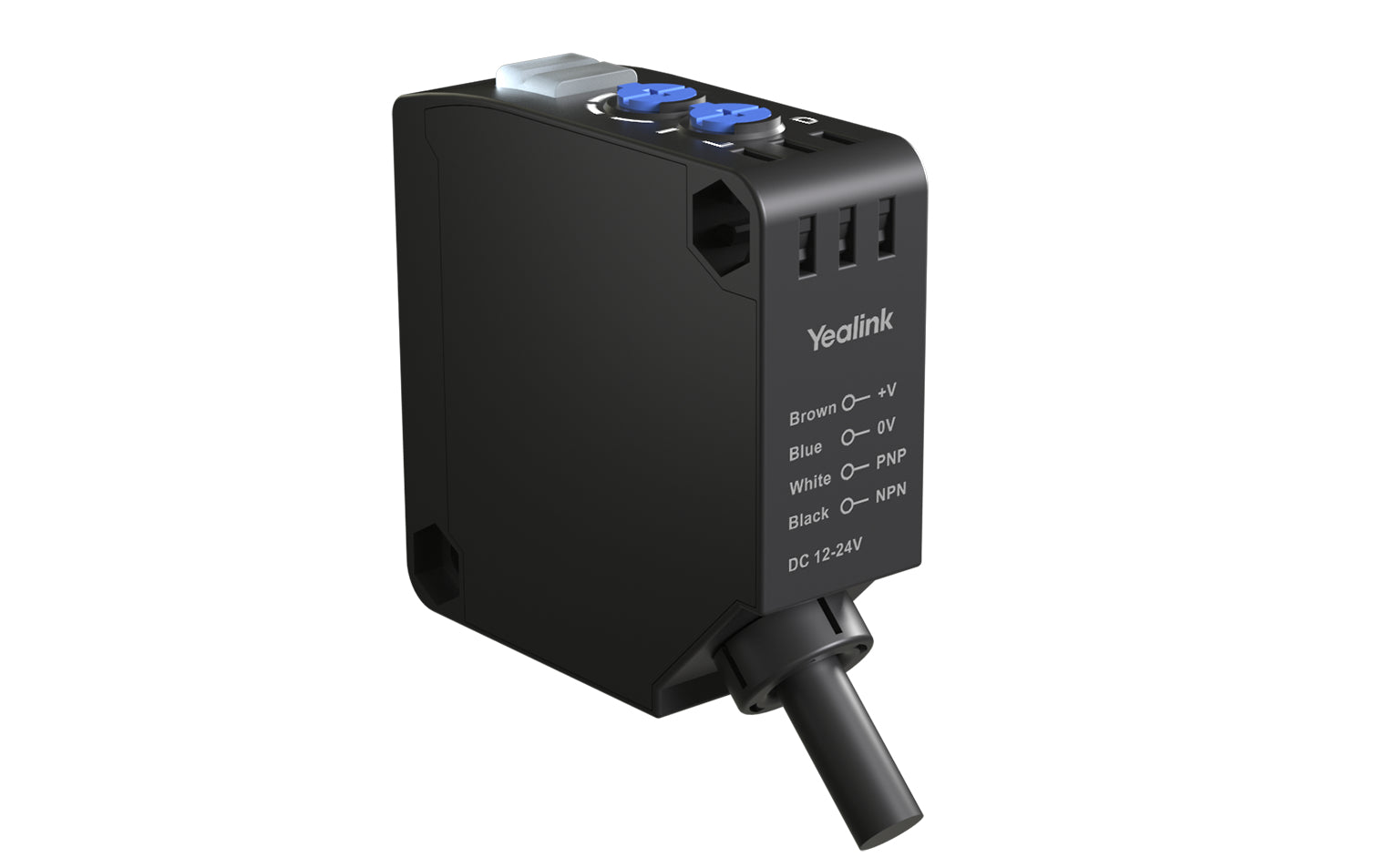

The Yealink YPS20 is a wired infrared partition sensor designed for divisible meeting rooms. It detects the position of a movable partition or curtain using IR diffuse reflection technology with up to 1.5 m detection distance and reports its status over a GPIO interface to the Yealink AP08. In black, it suits corporate and education spaces that need reliable merge and split detection.

With Yealink Room Designer, the YPS20 helps automate adaptive settings and manage equipment status across divisible rooms. Adjustable sensitivity suits complex environments, and the integrated 10 m cable simplifies wiring and deployment. The IP65-rated black ABS housing mounts to the surface for a compact, unobtrusive installation.

Features

- Simple, compact design
- Infrared diffuse reflection technology for high precision and low misjudgment
- 10 m cable for flexible installation, wiring and easy deployment
- Adjustable sensitivity to adapt to complex environments
- Works with Yealink Room Designer and AP08 to automate adaptive settings and manage equipment status of divisible meeting rooms

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Infrared (IR) diffuse reflection sensor, 850 nm wavelength
- Effective detection distance up to 1.5 m with adjustable sensitivity
- Response time under 0.5 ms
- 1 x GPIO interface (connects to Yealink AP08)
- Power: 12-24 VDC, operating current 100 mA
- Integrated 10 m cable
- Withstand voltage 1500 VAC, 50/60 Hz
- Two-colour LED indicators for power, communication and partition status
- Black ABS plastic housing, IP65 dust and weather resistant
- Surface mount installation

FAQs

Q: What does the Yealink YPS20 do?
A: It detects the position of a movable partition in a divisible meeting room and reports the status over its GPIO interface so the room can be merged or split automatically.

Q: What does the YPS20 connect to?
A: It connects through its GPIO interface to the Yealink AP08 and works with Yealink Room Designer to automate adaptive settings.

Q: What is the detection range of the YPS20?
A: It uses 850 nm infrared diffuse reflection with an effective detection distance of up to 1.5 m, with adjustable sensitivity.

Q: How is the YPS20 powered?
A: It runs on 12-24 VDC with an operating current of 100 mA.

Q: How long is the cable and how is it installed?
A: It has an integrated 10 m cable and is surface mounted, which allows flexible wiring and straightforward deployment.

Q: Is the YPS20 suitable for harsh environments?
A: The black ABS housing is rated IP65 for dust and weather resistance, and the adjustable sensitivity helps in complex environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
