Yealink YL-CM20 | CM20 Ceiling Microphone, AES67, White Mesh Cover, Tile Bridge, PoE

Name: Yealink YL-CM20 | CM20 Ceiling Microphone, AES67, White Mesh Cover, Tile Bridge, PoE
Brand: Yealink
SKU: YL-CM20
Price: 1414.27 AUD
Availability: InStock

Authorised Yealink Partner

SKU:YL-CM20

In stock:85

$1,414.27 inc. GST

$1,285.70 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

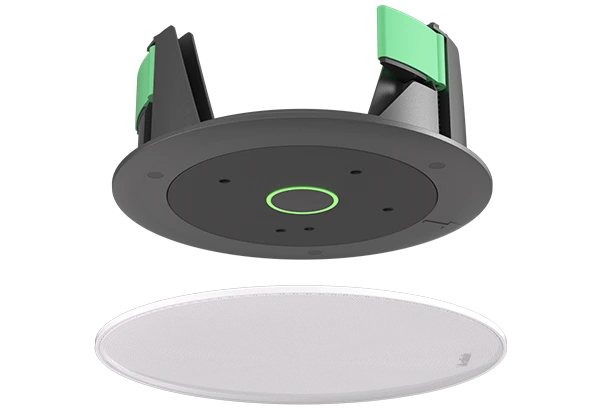

The Yealink CM20 ceiling microphone is a beamforming array microphone for medium to large conference rooms, capturing 360 degree audio from 16 omnidirectional microphones across 8 independent pickup zones. This SKU ships with a white mesh cover and a ceiling tile bridge for secure in-ceiling installation, so it is ready for a suspended ceiling deployment.

An integrated DSP provides noise reduction plus echo and reverberation cancellation, so no external audio processing is needed with Yealink MVC systems. It is powered over a single PoE Ethernet cable, supports AES67 for audio network integration, and offers full-duplex coverage of 30 sqm, extending to 60 sqm effective coverage. 8 beam outputs support speaker tracking and integration with room cameras for camera tracking.

Features

- Array of 16 omnidirectional microphones across 8 independent pickup zones
- Full-duplex audio capture for 30 sqm, with effective coverage up to 60 sqm
- Noise reduction plus echo and reverberation cancellation
- 8 beam outputs for speaker tracking and integration with room cameras for camera tracking
- Integrated DSP, so no external audio processing is needed with Yealink MVC systems
- AES67 support for audio network integration
- PoE: one Ethernet cable carries power and audio
- Flexible installation: in-ceiling, pendant or on-ceiling
- Removable magnetic mesh cover

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 omnidirectional microphones with 8 independent pickup zones and 8 beam outputs
- Coverage: 30 sqm full-duplex (3.2 m radius), up to 60 sqm effective (4.5 m radius)
- Frequency response: 120 Hz - 16 kHz
- Maximum SPL: 122 dBSPL
- Signal-to-noise ratio: 86 dB @<1% THD
- Sensitivity: 0 dBV/Pa 94 dBSPL@1kHz
- Interface: 1 x RJ-45
- Power: PoE (IEEE 802.3af, Class 3), 5.7 W typical, 9 W rated
- AES67 support
- Plenum rated UL 2043
- Dimensions: 223 mm diameter x 83 mm height (with mesh cover)
- Weight: 615 g
- Operating temperature: 0 - 50 C
- Included: white and black mesh covers, assembly fixing bracket, dust cover, bracing bridge pair, mounting hardware

FAQs

Q: What power does the Yealink CM20 require?
A: The CM20 is powered over Ethernet using IEEE 802.3af (Class 3) PoE through its single RJ-45 port, so one cable carries both power and audio. Typical power draw is 5.7 W and rated power is 9 W.

Q: How large a room can the CM20 cover?
A: The CM20 provides full-duplex coverage of 30 sqm (3.2 m radius) and effective pickup up to 60 sqm (4.5 m radius), making it suited to medium and large conference rooms.

Q: Does the CM20 work with Yealink MVC systems?
A: Yes. The CM20 is plug-and-play with Yealink MVC systems and has an integrated DSP, so no external audio processing is needed.

Q: What mounting options are available?
A: The CM20 supports in-ceiling, pendant and on-ceiling installation. This SKU includes the ceiling tile bridge for in-ceiling mounting in a suspended ceiling. A length-adjustable pole and suspend pole adapter are optional for pendant mounting.

Q: Can the CM20 be used in air handling spaces?
A: Yes. The CM20 is plenum rated to UL 2043, making it suitable for air handling spaces.

Q: Does the CM20 support audio-over-IP integration?
A: Yes. The CM20 supports AES67, allowing it to integrate with compatible audio network infrastructure.
