Yealink WMK-UVC8X | UVC8X Camera Wall Mount Kit, Wall, TV Stand, Ceiling

Name: Yealink WMK-UVC8X | UVC8X Camera Wall Mount Kit, Wall, TV Stand, Ceiling
Brand: Yealink
SKU: WMK-UVC8X
Price: 50.05 AUD
Availability: BackOrder

Authorised Yealink Partner

SKU:WMK-UVC8X

Stock Status: Enquire

$50.05 inc. GST

$45.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Yealink WMK-UVC8X is a camera wall mount kit designed for the Yealink UVC84 and UVC86 USB video conferencing cameras. The kit combines a wall mount, a TV stand mount and an inverted ceiling bracket, so one kit covers wall, display-top and ceiling installations in meeting rooms and huddle spaces.

The cameras attach with a 1/4"-20 screw, and the TV stand mount fits displays up to 70 mm thick. Installation hardware is included in the box, making it a practical accessory for standardising camera placement across multiple rooms.

Features

- Three mounting options in one kit: wall, TV or monitor top, and inverted ceiling
- Mounting hardware included
- Designed specifically for UVC84 and UVC86 cameras
- Attaches the camera via a standard 1/4"-20 screw

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Compatibility: Yealink UVC84 and UVC86
- Camera screw: 1/4"-20
- TV mount surface thickness: up to 70 mm (2.76")
- TV stand dimensions: 232 x 131 x 113.5 mm

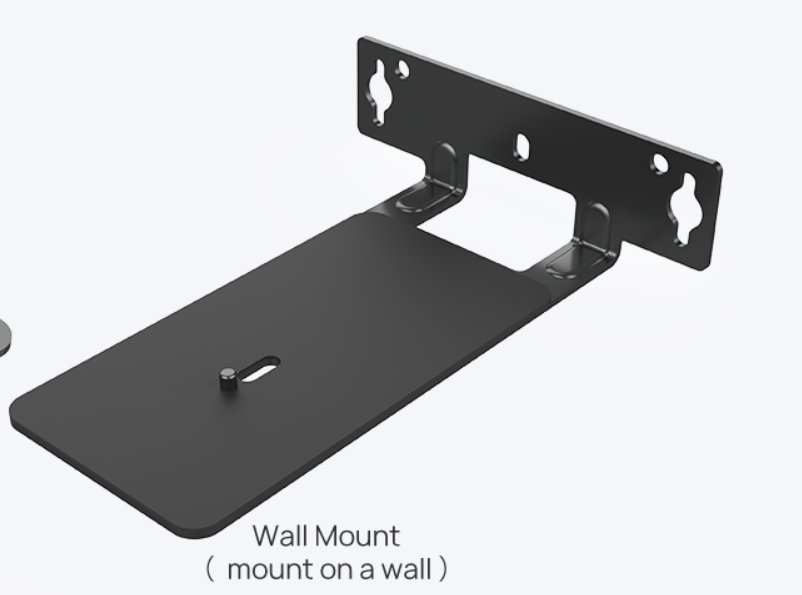

- Wall mount dimensions: 185 x 144 x 46.6 mm
- Inverted bracket dimensions: 163 x 133 x 14.8 mm
- Package weight: approx. 1.41 kg
- Included: TV stand, wall mount, inverted ceiling bracket, installation hardware

FAQs

Q: Which cameras is the WMK-UVC8X compatible with?
A: It is designed for the Yealink UVC84 USB PTZ camera and the UVC86 intelligent tracking camera.

Q: What mounting options does the kit include?
A: The kit includes a wall mount, a TV stand mount for the top of a display, and an inverted ceiling bracket.

Q: How thick can the display be for the TV stand mount?
A: The TV mount fits displays up to 70 mm (2.76 inches) thick.

Q: How does the camera attach to the mount?
A: The camera attaches using a 1/4"-20 screw.

Q: Is installation hardware included?
A: Yes, installation hardware is included in the kit along with the three mounting brackets.

Q: Does this kit include a camera?
A: No. It is a mounting accessory only, and the UVC84 or UVC86 camera is purchased separately.
