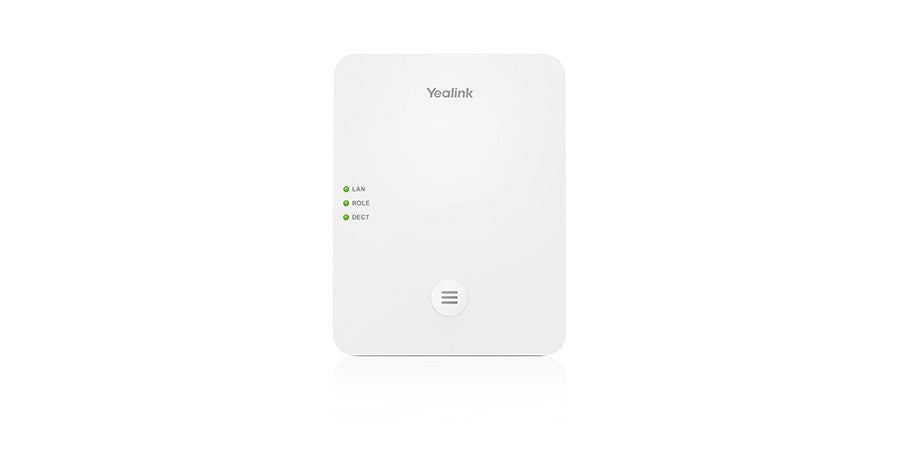

Yealink W80 | DECT IP Multi-Cell System, 2x W80B + 1x W80DM Bundle

Name: Yealink W80 | DECT IP Multi-Cell System, 2x W80B + 1x W80DM Bundle
Brand: Yealink
SKU: W80
Price: 923.45 AUD
Availability: BackOrder

Authorised Yealink Partner

SKU:W80

Stock Status: Enquire

$923.45 inc. GST

$839.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Yealink W80 DECT IP multi-cell system bundle combines two W80B DECT IP base stations with one W80DM DECT Manager, giving you a ready-to-deploy foundation for business-wide wireless voice coverage. The system supports up to 100 handsets and 100 simultaneous calls, with seamless roaming and handover between cells so staff stay connected as they move around a site.

The platform scales to as many as 30 base stations and 100 SIP accounts, so you can start with the two-base bundle and expand coverage as your premises grow. It uses DECT CAT-iq 2.0 technology with HD voice including Opus wideband support, base stations can be powered over PoE, and the system works with compatible Yealink DECT handsets such as the W53H, W56H, CP930W and DD Phone.

Features

- Seamless handover and roaming between cells
- Scalable to 30 base stations and 100 handsets
- Yealink HD voice with full-duplex and Opus wideband
- Compact base station design
- Power over Ethernet supported
- Handsets can obtain the base station IP directly to speed up setup on networks without multicast
- Designed for use with Yealink DECT handsets only

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Bundle contents: 2x W80B DECT IP base station + 1x W80DM DECT Manager
- Up to 100 handsets
- Up to 100 parallel calls
- Up to 30 base stations
- Up to 100 SIP accounts
- DECT radio coverage up to 50 m indoors and 300 m outdoors
- DECT technology based on CAT-iq 2.0
- Wideband codecs: Opus, G.722 (AMR-WB optional)
- Narrowband codecs: PCMU, PCMA, G.726, G.729, iLBC (AMR-NB optional)
- SIP v1 (RFC2543) and v2 (RFC3261)
- Transport: UDP, TCP, TLS
- Network: VLAN (802.1Q/802.1P), 802.1x, LLDP, STUN client, static or DHCP IP
- Security: OpenVPN, TLS, HTTPS, SRTP, digest authentication, AES-encrypted configuration files
- PoE supported
- Operating temperature: 0 to 40 C, humidity 10-95%

FAQs

Q: What is included in the W80 bundle?
A: The bundle includes two W80B DECT IP base stations and one W80DM DECT Manager. Handsets are not included and must be added separately.

Q: How many handsets and calls does the system support?
A: The W80 system supports up to 100 handsets and up to 100 simultaneous calls, with up to 30 base stations and 100 SIP accounts.

Q: Which handsets are compatible?
A: The system works with compatible Yealink DECT handsets including the W53H, W56H (firmware x.83.0.20 or later), CP930W and DD Phone. It is not compatible with third-party DECT devices.

Q: Can the base stations be powered over Ethernet?
A: Yes, the system supports PoE, which simplifies installation by removing the need for separate power at each base station.

Q: Can I expand the system later?
A: Yes. The platform scales up to 30 base stations, so you can add further W80B base stations to extend coverage as your site grows.

Q: What indoor and outdoor range does the DECT radio provide?
A: DECT radio coverage is up to 50 m indoors and up to 300 m outdoors per base station, depending on the environment.
