Yealink MVC S40-C5-000 | MVC S40 Teams Rooms System, SmartVision 40, MCore Pro

Name: Yealink MVC S40-C5-000 | MVC S40 Teams Rooms System, SmartVision 40, MCore Pro
Brand: Yealink
SKU: MVC S40-C5-000
Price: 4379.43 AUD
Availability: InStock

Authorised Yealink Partner

SKU:MVC S40-C5-000

In stock:9

$4,379.43 inc. GST

$3,981.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

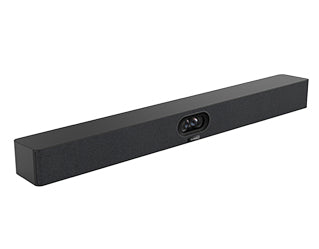

The Yealink MVC S40-C5-000 is a complete Microsoft Teams Rooms on Windows video conferencing kit built for small to medium meeting rooms. This C5 kit combines the SmartVision 40 dual-camera all-in-one video bar, the MCore Pro mini-PC and the MTouch Plus 11.6-inch touch console, so a single package covers camera, audio, compute and room control.

The SmartVision 40 pairs two 48MP cameras with a 120° diagonal field of view, an 8-MEMS microphone array with 6 m voice pickup and stereo speakers, with support for 2 expansion microphones. The MCore Pro is preloaded with the Microsoft Teams Rooms app and Windows 11 IoT Enterprise, and drives up to three HDMI displays. Wired and wireless (WPP30) content sharing keeps meetings simple to start and run.

Features

- Dual-lens AI camera with intelligent framing
- Automatic lens privacy cover
- AI-enhanced noise cancellation
- One-touch join and screen sharing
- Supports multiple touch panels controlling the same meeting
- Desktop, desktop fixed or wall-mounted touch console options
- Remote management via Yealink Device Management Platform / Cloud Service
- Wall, table, tabletop mount or in-wall deployment options for the video bar

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Kit contents: SmartVision 40 all-in-one audio and video machine, MCore Pro, MTouch Plus
- Camera: dual 48MP, 120° diagonal (111° horizontal) field of view
- Microphones: built-in 8-MEMS array, 6 m voice pickup, supports 2 x expansion microphones
- Speakers: 2 x stereo
- MCore Pro video output: 3 x HDMI with CEC
- MCore Pro connectivity: Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth 5.2, 4 x USB 3.0 Type-A
- MCore Pro security: TPM 2.0, Kernel DMA
- MTouch Plus: 11.6-inch IPS touch display, 1920 x 1080
- Content sharing: wired and wireless (WPP30), HDMI/USB-C input
- Maximum MCore Pro to MTouch cable distance: 40 m
- Preloaded with Microsoft Teams Rooms app and Windows 11 IoT Enterprise x64
- Operating temperature (SmartVision 40): 0 to 40 C, humidity 10 to 95%

FAQs

Q: What is included in the Yealink MVC S40-C5-000 kit?
A: The kit includes the SmartVision 40 all-in-one audio and video machine, the MCore Pro mini-PC and the MTouch Plus touch console.

Q: What operating system and software come preloaded?
A: The MCore Pro is preloaded with the Microsoft Teams Rooms app, Windows 11 IoT Enterprise x64 with licence and Yealink RoomConnect.

Q: How does the C5 kit differ from the C4 kit?
A: The C5 kit uses the MTouch Plus 11.6-inch touch console, while the C4 kit uses the MTouch E2.

Q: What size room is this system suited to?
A: It is designed for small to medium meeting rooms, with a 6 m microphone pickup range and support for 2 expansion microphones to extend audio coverage.

Q: How many displays can the MCore Pro drive?
A: The MCore Pro provides 3 x HDMI video outputs with CEC support.

Q: Can participants share content wirelessly?
A: Yes. The MTouch Plus supports wired sharing via HDMI or USB-C input as well as wireless sharing using the WPP30.
