Yealink

Yealink MB75PRO-A02 | MeetingBoard Pro 75in 4K Display, 3x50MP Cameras, Android 13

Yealink MB75PRO-A02 | MeetingBoard Pro 75in 4K Display, 3x50MP Cameras, Android 13

Authorised Yealink Partner

SKU:MB75PRO-A02

$8,743.68 inc. GST
$7,948.80 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 53

Description

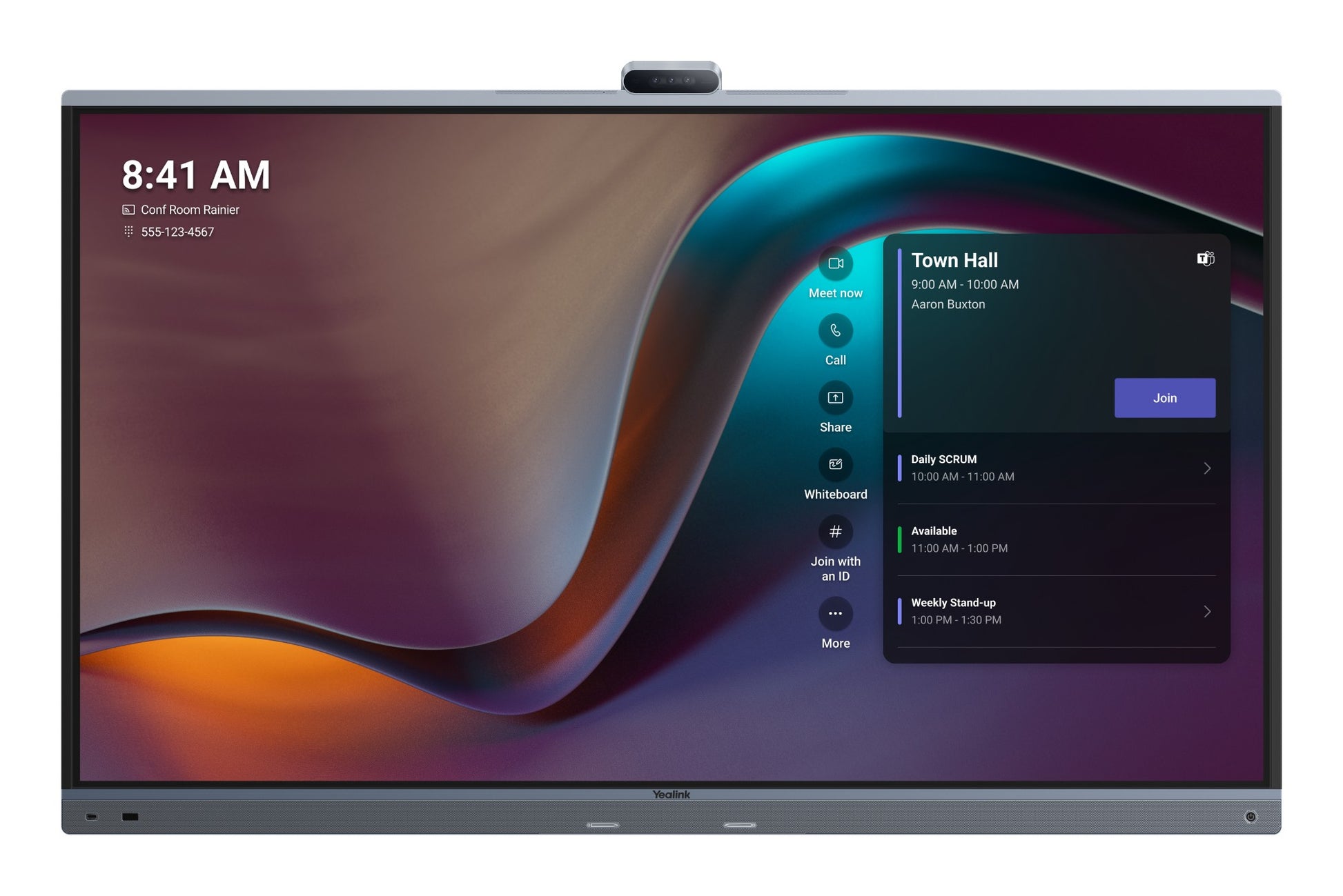

The Yealink MeetingBoard Pro MB75PRO-A02 is a 75-inch 4K all-in-one collaboration display for small to medium meeting rooms. It combines an interactive infrared touchscreen with a built-in triple 50MP camera system, a 16 MEMS microphone array and six speakers, so video conferencing, wireless content sharing and whiteboarding run from a single device. This model runs Android 13, ships with four stylus pens and does not include the wall mount.

The MeetingBoard Pro supports native Microsoft Teams Rooms and Zoom Rooms, with a General Mode and a BYOD USB peripheral mode for using it as an external display and audio device. AI features including IntelliFocus, Video Fence, Auto Framing and Speaker Tracking keep participants in frame, while Wi-Fi 6, Bluetooth 5.1, HDMI in and out and a Windows OPS slot cover content sharing and expansion. It can be wall-mounted, wall-stand mounted or floor-stand mounted, with the MB-WallMount sold separately.

Features

- All-in-one design with wall-mount, wall-stand or floor-stand installation options
- Triple-eye 50MP camera system with automatic physical privacy shutter
- AI-powered IntelliFocus, Video Fence, Audio Fence, Auto Framing, Speaker Tracking and PIP
- Pro Sound with 12 m full-duplex pickup, noise suppression, echo cancellation and de-reverberation
- Native Microsoft Teams Rooms and Zoom Rooms support plus General Mode
- Built-in whiteboard with dual-person simultaneous writing and palm rejection
- USB peripheral mode (BYOD) lets the board act as an external display and audio device
- Supports external MB-12X Pro PTZ camera, wired and wireless microphones, touch panel, wireless presentation pod and OPS module

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 75-inch 4K UHD (3840 x 2160) anti-glare display, 400 cd/m2 brightness, 1200:1 contrast
- Built-in triple 50MP camera (1 wide-angle, 2 telephoto), Sony sensors, 4x digital zoom, electric privacy shutter
- 16 MEMS microphone array with 12 m full-duplex pickup, 70dB SNR
- Stereo speakers, 30W rated power, 90Hz to 20kHz frequency response
- Android 13.0, 8GB RAM, 64GB flash, 4 cores at 2.2GHz plus 4 cores at 2.0GHz
- Infrared touch, 20 touch points, +/-1 mm accuracy, four-level stylus, 4 x stylus pens included
- Wi-Fi 6 (802.11a/b/g/n/ac/ax, 2x2 MIMO) and Bluetooth 5.1
- Interfaces: HDMI in, HDMI out (CEC), 3 x USB-A 2.0, 2 x 10/100/1000 RJ45, Windows OPS slot, pluggable camera module interface
- Wireless content sharing via AirPlay and Miracast, wired sharing via HDMI in
- Power consumption: typical 164W, maximum 277W, 100-240V 50/60Hz
- VESA 800 x 600 mm, bare device dimensions 1705 x 105 x 1081 mm, net weight 52.2 kg
- Wall mount not included (MB-WallMount sold separately)

FAQs

Q: Does the MB75PRO-A02 include a wall mount?
A: No. The wall mount is not included and the MB-WallMount is sold separately. The board can also be installed on a wall-stand or floor-stand.

Q: Which meeting platforms does the MeetingBoard Pro support?
A: It supports native Microsoft Teams Rooms and Zoom Rooms, and also offers a General Mode and a BYOD USB peripheral mode for use with other conferencing software.

Q: What size of room is the MeetingBoard 75 Pro designed for?
A: It is designed for small to medium meeting rooms, with 16 microphones providing 12 m full-duplex pickup and a triple 50MP camera system covering the room.

Q: What is included in the box?
A: The package contains the MeetingBoard Pro display, a 3m AC power cable, a 3m CAT5E cable, 4 stylus pens, 3 cable ties and a Quick Start Guide.

Q: Can I add an optical zoom camera or other peripherals?
A: Yes. The pluggable camera module interface supports the optional MB-12X Pro 12x optical zoom camera. It also supports external microphones, a touch panel, a wireless presentation pod and a Windows OPS module.

Q: How can users share content to the display?
A: Content can be shared wired via HDMI in, or wirelessly via AirPlay and Miracast. The optional Wireless Presentation Pod is also supported, and the board works as an external display in BYOD mode.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
