Yealink

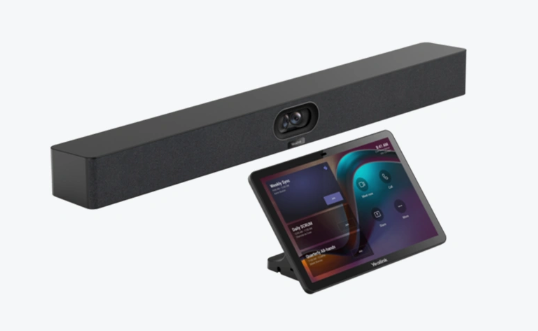

Yealink A40-031-1 | MeetingBar A40 All-in-One 4K Video Bar, CTP25 Touch Panel

Yealink A40-031-1 | MeetingBar A40 All-in-One 4K Video Bar, CTP25 Touch Panel

Authorised Yealink Partner

SKU:A40-031-1

$3,420.56 inc. GST
$3,109.60 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Yealink MeetingBar A40 is an all-in-one 4K video collaboration bar for small to medium meeting rooms, supplied in the A40-031-1 kit with the CTP25 10.1-inch touch panel, PSU and wall mount bracket. Two 48MP cameras are stitched into a single 4K UHD image at up to 60fps with a 120 degree diagonal field of view and 6x digital zoom, while an 8-MEMS microphone array with a 6 m pickup range and two built-in 10W stereo speakers handle room audio.

Running Android 13 and certified for Microsoft Teams and Zoom, the bar offers AI IntelliFocus, Auto Framing, Speaker Tracking and Picture-in-Picture, plus an electric privacy shutter. Dual HDMI outputs, USB-A, USB-C, Ethernet, dual-band Wi-Fi 6, Bluetooth 5.0 and optional expansion microphones make it straightforward to integrate, and the CTP25 connects directly to the bar or over IP for simple room control and login.

Features

- AI IntelliFocus, Auto Framing, Speaker Tracking, Picture-in-Picture and Multi-Focus Framing
- Smart Gallery (Zoom only)
- Electric privacy shutter
- Certified for Microsoft Teams and Zoom
- Yealink Noise Proof Technology with full-duplex audio
- Content sharing and BYOD mode
- Direct connection to CTP25 for simplified login
- One-cable installation
- Remote device management

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 48MP cameras, stitched 4K UHD video at up to 60fps
- 120 degree diagonal field of view (110 degree horizontal, 54 degree vertical)
- 6x digital zoom
- 8 x MEMS microphone array, 6 m pickup range
- 2 x built-in 10W stereo speakers
- Supports 2 optional expansion microphones
- Android 13 operating system
- Dual-band Wi-Fi 6 and Bluetooth 5.0
- 2 x HDMI output, 1 x USB-A, 1 x USB-C, 1 x Ethernet, 1 x VCH (RJ-45), 3.5mm line-in/line-out
- CTP25 10.1-inch IPS touch panel, connects directly to the bar or over IP
- Bar dimensions 650 x 62 x 80 mm
- Protocols: SIP/H.323
- Kit includes CTP25 touch panel, PSU and wall mount bracket

FAQs

Q: What room size is the MeetingBar A40 designed for?
A: The A40 is designed for small to medium meeting rooms. Its 8-MEMS microphone array has a 6 m pickup range, and up to 2 optional expansion microphones can extend audio coverage.

Q: What is included in the A40-031-1 kit?
A: The kit includes the MeetingBar A40 all-in-one collaboration bar, the CTP25 10.1-inch touch panel, a power supply and a wall mount bracket.

Q: Which video conferencing platforms does it support?
A: The A40 is certified for Microsoft Teams and Zoom, and also supports SIP and H.323 protocols.

Q: How does the CTP25 touch panel connect?
A: The CTP25 can be connected directly to the bar for simplified login, or connected over IP.

Q: Can I connect external displays and other devices?
A: Yes. The bar provides 2 x HDMI outputs, USB-A, USB-C, Ethernet, a VCH (RJ-45) port and 3.5mm line-in/line-out, as well as dual-band Wi-Fi 6 and Bluetooth 5.0.

Q: Does the camera have a privacy feature?
A: Yes. The A40 includes an electric privacy shutter for the camera.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
