Yealink 1106798 | MVC S80 Teams Rooms Kit, MCore 4 Ultra5, SmartVision 80

Name: Yealink 1106798 | MVC S80 Teams Rooms Kit, MCore 4 Ultra5, SmartVision 80
Brand: Yealink
SKU: 1106798
Price: 8213.65 AUD
Availability: InStock

Authorised Yealink Partner

SKU:1106798

In stock:33

$8,213.65 inc. GST

$7,466.95 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

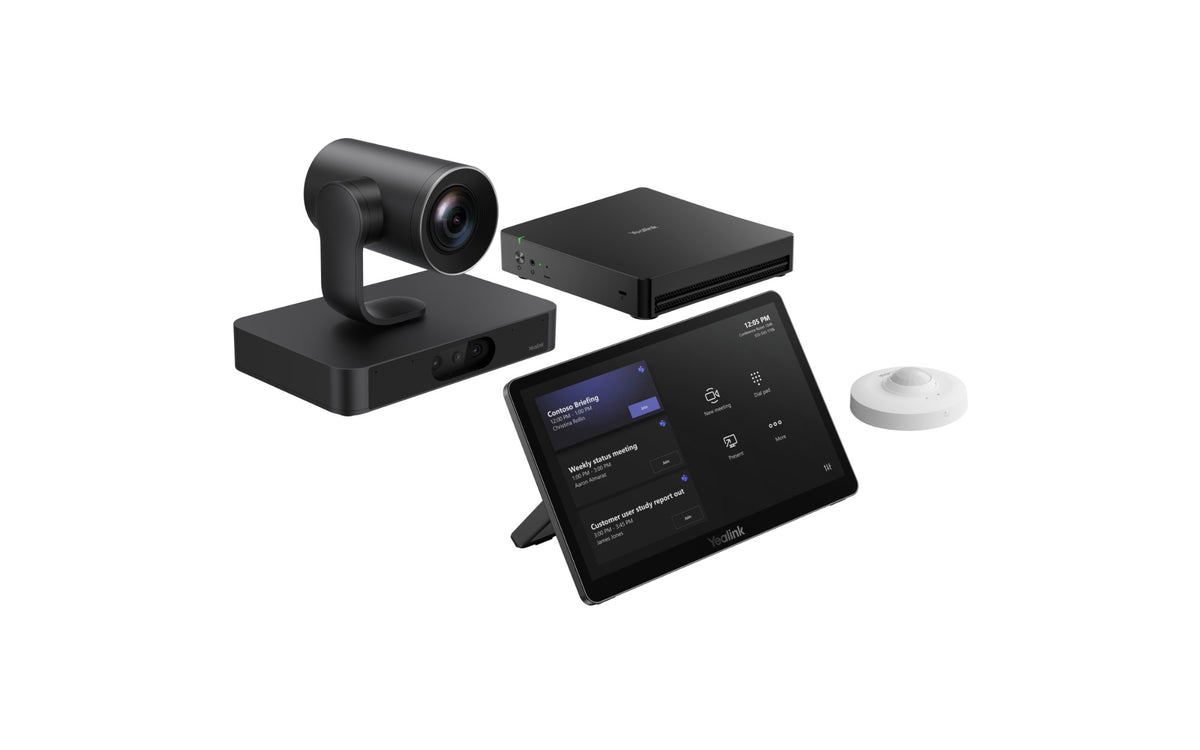

The Yealink MVC S80-C5U is a Microsoft Teams Rooms on Windows system built for large meeting rooms. This kit pairs the MCore 4 mini-PC (Intel Ultra5 125H, 16GB DDR5, 256GB SSD) with the MTouch Plus 11.6-inch touch console, the SmartVision 80 four-lens AI camera (one PTZ plus three electronic cameras with 20x optical zoom) and a RoomSensor. It ships preloaded with Windows 11 IoT Enterprise and the Microsoft Teams Rooms app.

The SmartVision 80 provides AI tracking modes including IntelliFocus, Speaker Tracking, Presenter Tracking and Auto Framing, so every participant is framed clearly across a large space. The MTouch Plus delivers the native Teams interface with one-click join, call control and content sharing over USB-C, HDMI or wirelessly with the WPP30 adapter. The RoomSensor wakes the system when people enter the room and reports temperature and humidity.

Features

- Four-lens camera (panoramic, two telephoto and PTZ) covers the whole room with clear close-ups of each participant
- AI tracking modes: IntelliFocus, Presenter Tracking, Speaker Tracking and Auto Framing
- Multiple SmartVision 80 units can be combined for Multi-camera IntelliFocus, IntelliFrame, and Mic and Camera Linkage
- Compatible with Yealink audio devices such as VCM35/36, CM20 and MSpeaker Pro
- Native Microsoft Teams interface on the MTouch Plus with one-click join, call control, camera adjustment and content sharing
- RoomSensor wakes the system when people enter and shows room temperature and humidity on the MTouch Plus
- Wired sharing via USB-C or HDMI, and wireless sharing with the WPP30 adapter at 1080p/30fps
- HDMI-In on the MCore 4 supports a 4K auxiliary stream
- A single CAT5e cable carries data and power between the MCore 4 and MTouch Plus
- Remote management through the Yealink Device Management Platform / Cloud Service

Warranty

Yealink offers a 36-month limited hardware warranty on most devices, including SIP phones, video conferencing systems, Teams-certified hardware, and headsets. This warranty covers defects in materials and workmanship from the date of purchase.
Extended Warranty Options:
IP Trading can provide extended warranty solutions for Yealink products—up to 5.5 years total coverage. Contact us to customise a plan that suits your deployment.
https://www.yealink.com/website-service/attachment/library-file/documents/20230920/20230920021310144a2ab989c4cafa71e0ab9cc4478ef.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Package: MCore 4, MTouch Plus, RoomSensor, SmartVision 80
- MCore 4 processor: Intel Ultra5 125H
- Memory: 16GB (2x8GB) DDR5
- Storage: 256GB SSD
- Preloaded: Windows 11 IoT Enterprise x64 (licence included), Microsoft Teams Rooms app, Yealink RoomConnect
- MTouch Plus: 11.6-inch narrow bezel IPS touch console, 1920 x 1080
- SmartVision 80 PTZ camera: 20x optical zoom, 69° DFOV
- SmartVision 80 panoramic camera: 110° DFOV
- SmartVision 80 telephoto camera: 51° DFOV
- MCore 4 video: 1x HDMI-Out 2.1, 2x HDMI-Out 2.0, 1x HDMI-In (4K)
- MCore 4 connectivity: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth 5.2, 1x Gigabit Ethernet
- MCore 4 ports: 4x USB 3.0 Type-A, 1x MTouch port (RJ-45), 1x 3.5mm headphone port
- RoomSensor: 120° detection angle, ±20° adjustable, 0 to 40 C operating temperature
- SmartVision 80 interfaces: 1x USB 3.0 Type-B, 1x USB 2.0 Type-A, 1x HDMI out, line in, line out

FAQs

Q: What is included in the Yealink MVC S80-C5U kit?
A: The kit includes the MCore 4 mini-PC, MTouch Plus touch console, SmartVision 80 four-lens AI camera and a RoomSensor.

Q: What operating system and software does it run?
A: It is preloaded with Windows 11 IoT Enterprise x64 (licence included) and the Microsoft Teams Rooms app, along with Yealink RoomConnect.

Q: What room size is this kit designed for?
A: It is designed for large meeting rooms, using the SmartVision 80 with a PTZ camera plus three electronic cameras and 20x optical zoom to cover the whole space.

Q: How can participants share content in the room?
A: Content can be shared by wire over USB-C or HDMI, or wirelessly using the WPP30 adapter at 1080p/30fps.

Q: How is the MTouch Plus connected to the MCore 4?
A: A single CAT5e cable carries both data and power between the MCore 4 and the MTouch Plus. The RoomSensor connects over Bluetooth LE.

Q: Can I add more cameras or Yealink audio devices?
A: Yes. Multiple SmartVision 80 units can be combined for multi-camera features, and the system works with Yealink audio devices such as VCM35/36, CM20 and MSpeaker Pro.
