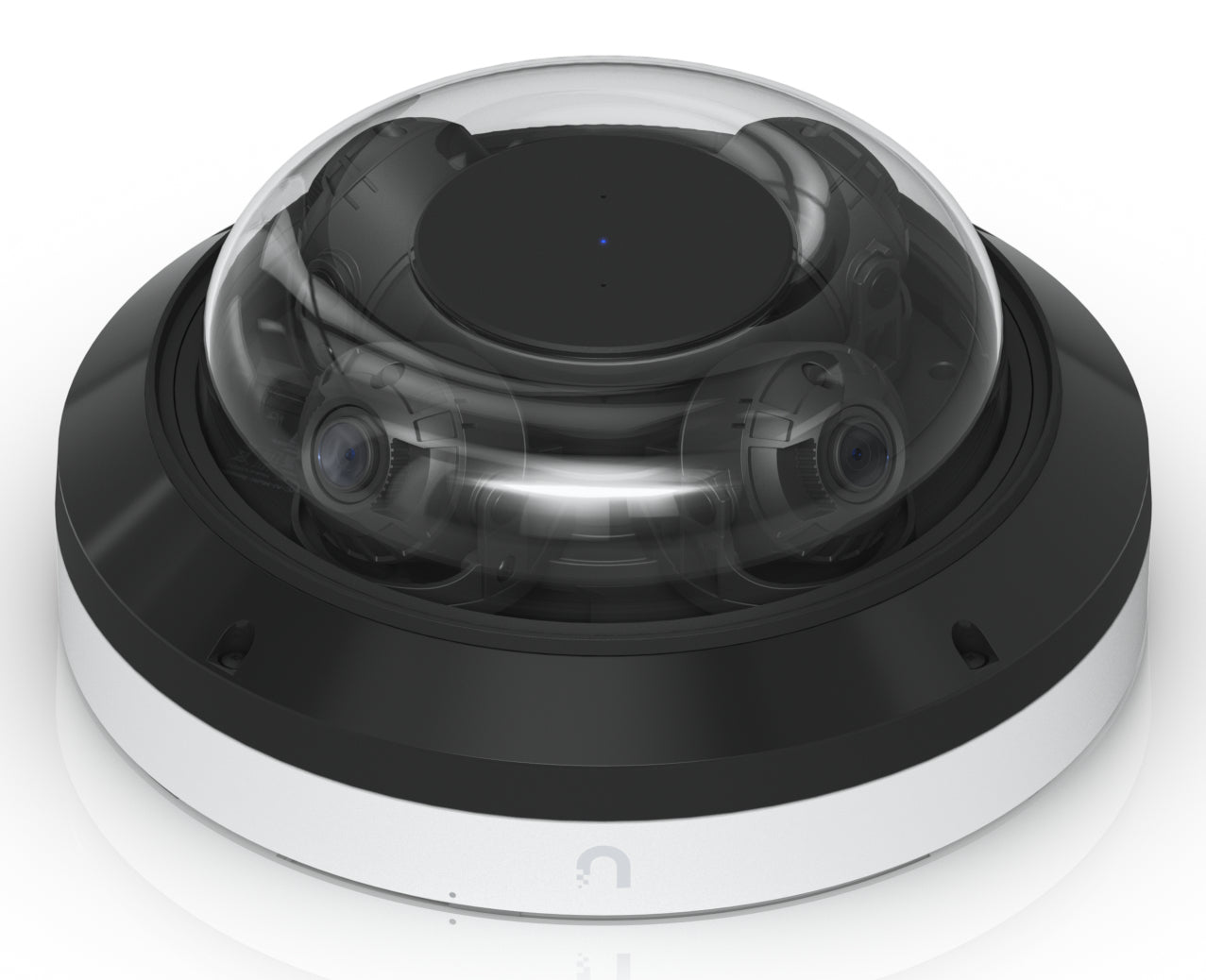

Ubiquiti UVC-AI-MS-4-W | UniFi AI Multi Sensor 4 Dome Camera, 32MP, 360° IR

Ubiquiti UVC-AI-MS-4-W | UniFi AI Multi Sensor 4 Dome Camera, 32MP, 360° IR

UVC-AI-MS-4-W

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The UniFi AI Multi Sensor 4 is a 32MP multi-sensor dome IP security camera designed for comprehensive wide-area surveillance in demanding indoor and outdoor environments. Featuring four independently adjustable motorized lenses (4 × 8MP sensors) with 2.33× optical zoom, a Multi-TOPS AI engine delivering Face Recognition and License Plate Recognition (ANPR), and 360° IR night vision coverage up to 20 m, this camera eliminates blind spots where a single fixed lens cannot. Its all-weather IP66 and IK10-rated enclosure makes it equally suited to car parks, building perimeters, retail floors, and campus entry points.

Fully integrated with the UniFi Protect ecosystem, the AI Multi Sensor 4 supports smart detection of people, vehicles, and animals alongside HDR imaging and flexible on-board storage via an M.2 2280 SATA SSD slot and dual microSD slots. PoE++ single-cable installation simplifies deployment, while the ceiling-mount bracket is included and optional pole, corner, arm, and pendant mounts expand placement options. Available in White (UVC-AI-MS-4-W) and Black (UVC-AI-MS-4-B). Contact iptrading.com.au — your local source for enterprise-grade networking solutions.

Features

- Four independently adjustable motorized lenses for fully tailored scene coverage from a single mounting point
- Multi-TOPS AI engine with on-device Face Recognition and License Plate Recognition (ANPR)
- Smart detection of people, vehicles, and animals for intelligent event filtering
- 360° IR night vision coverage up to 20 m (65 ft) across all four sensors
- HDR imaging with 2DNR, 3DNR, and motion-based noise reduction
- Flexible image settings: colour, brightness, sharpness, contrast, white balance, exposure control, masking, and text overlay
- On-board local storage: M.2 2280 SATA SSD slot + dual microSD card slots
- All-weather IP66 and IK10 vandal-resistant enclosure for indoor and outdoor use
- PoE++ single-cable installation for simplified and tidy deployment
- Full integration with the UniFi Protect ecosystem for unified camera management
- Available in White (UVC-AI-MS-4-W) and Black (UVC-AI-MS-4-B)

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Total Resolution: 32MP (4 × 8MP sensors)
- Image Sensor: 4 × 1/2.8" 8MP CMOS
- Lens: 3.18–7.42 mm motorized, 2.33× optical zoom per sensor
- FoV Wide: H 108.8°, V 57.6°, D 130.8°
- FoV Tele: H 42.8°, V 24.1°, D 49.1°
- IR Night Vision: Up to 20 m (65 ft), 360° coverage
- Weatherproofing: IP66
- Tamper Resistance: IK10
- Network Interface: GbE RJ45
- Power: PoE++
- On-Board Storage: 1× M.2 2280 SATA SSD slot + 2× microSD card slots
- Processor: Dual-core Arm Cortex-A76 + Multi-TOPS AI engine
- Operating Temperature: -20°C to 50°C
- Dimensions: ⌀255 × 105 mm (⌀10.04 × 4.13")
- Mounting: Ceiling mount included; Pole, Corner, Arm, Pendant optional
- Colour: White

FAQs

Q: Can I purchase the Ubiquiti UVC-AI-MS-4-W in Australia?
A: Yes. The UVC-AI-MS-4-W is available through iptrading.com.au, a trusted Australian B2B reseller of enterprise networking and physical security equipment. Contact us for pricing, stock availability, and volume orders.

Q: What makes the AI Multi Sensor 4 different from a standard dome camera?
A: Unlike a single-lens dome camera, the AI Multi Sensor 4 combines four independently adjustable motorized lenses into one unit, delivering 32MP of combined resolution and the ability to cover both wide-area and close-up views simultaneously. The Multi-TOPS AI engine also adds Face Recognition and License Plate Recognition (ANPR) on-device.

Q: Does the UVC-AI-MS-4-W require a NVR or cloud subscription to operate?
A: The camera integrates with Ubiquiti's UniFi Protect platform, which runs locally on a UniFi NVR (such as the UNVR or UDM-Pro). On-board storage via the M.2 SSD slot and dual microSD slots allows local recording without a separate NVR, though UniFi Protect provides the full management and AI feature set.

Q: Is the AI Multi Sensor 4 suitable for outdoor installation?
A: Yes. The IP66 weatherproof rating protects against dust ingress and powerful water jets, while the IK10 tamper-resistant enclosure withstands significant impact. Operating temperature range of -20°C to 50°C makes it suitable for Australian outdoor conditions including harsh summer heat.

Q: What PoE standard is required to power this camera?
A: The UVC-AI-MS-4-W requires PoE++ (IEEE 802.3bt) due to its four-sensor array and AI processing engine. Ensure your switch or injector supports PoE++ before deployment.

Q: What AI detection capabilities does the camera support?
A: The built-in Multi-TOPS AI engine supports Face Recognition, License Plate Recognition (ANPR), and smart detection of people, vehicles, and animals. These functions are processed on-device, reducing bandwidth and latency compared to cloud-based analytics.
