Ubiquiti USL-GlassBreak-US | UniFi SuperLink Glass Break Sensor, PIR, US 915 MHz
Ubiquiti USL-GlassBreak-US | UniFi SuperLink Glass Break Sensor, PIR, US 915 MHz
Authorised Ubiquiti Partner
SKU:USL-GlassBreak-US
In stock:57
Couldn't load pickup availability
Description
Description

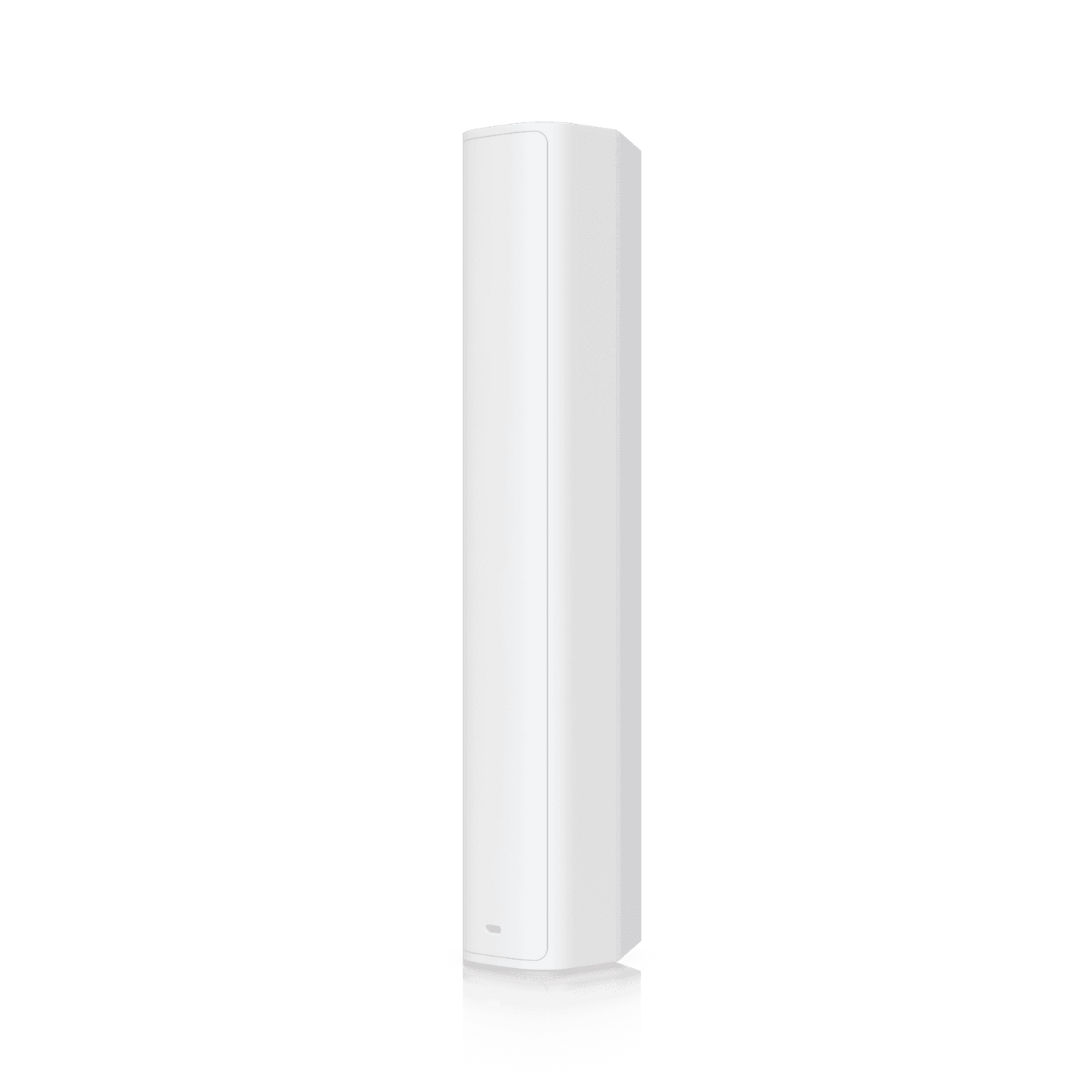

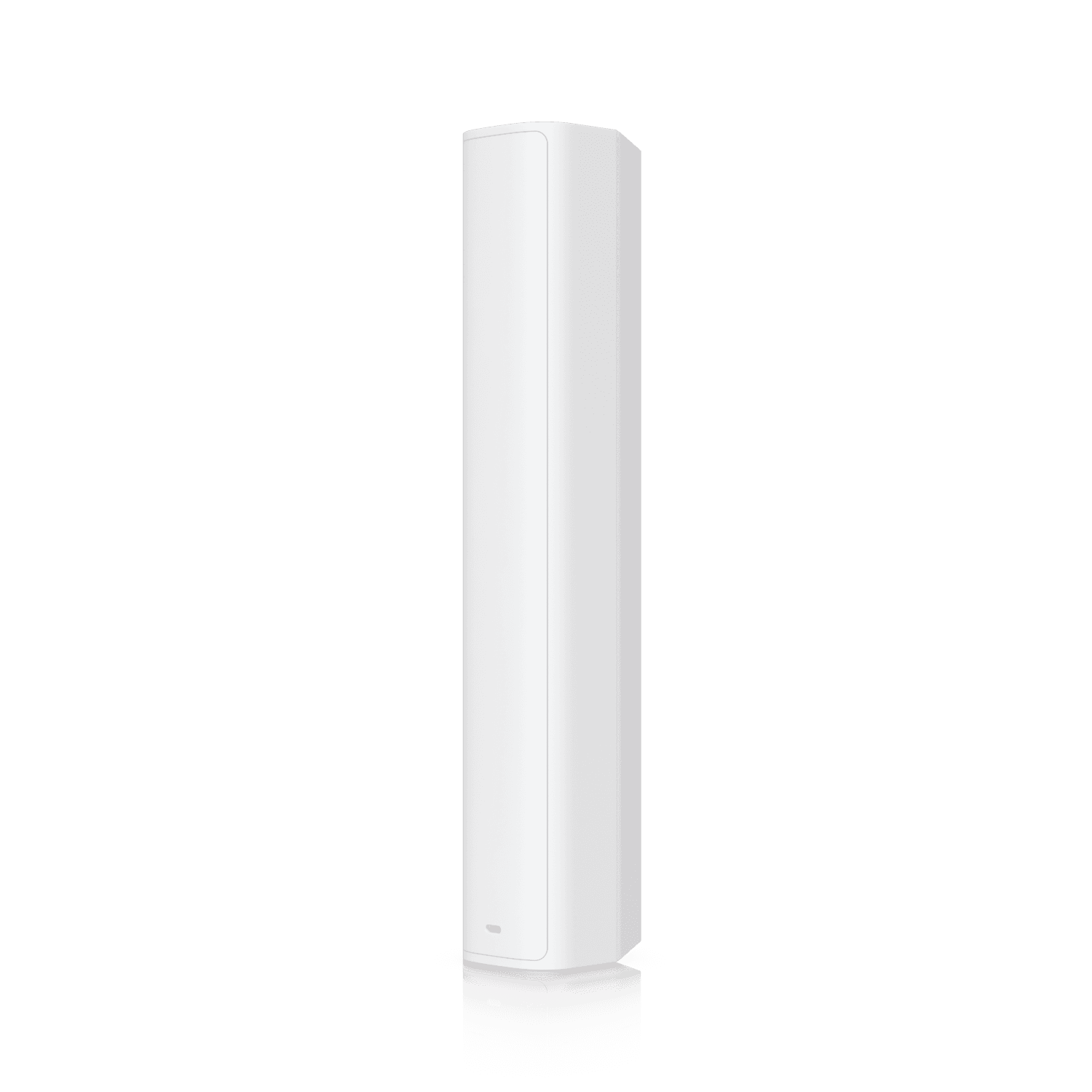

The UniFi SuperLink Glass Break Sensor is a battery-powered wireless glass break detector with a built-in PIR motion sensor, designed for UniFi Protect security deployments. This US version operates on 915.6-927.6 MHz and uses SuperLink proprietary wireless connectivity with a range of up to 2 km, making it suited to homes, offices and commercial sites where wiring is impractical.
A built-in microphone detects the sound of breaking plate, tempered, obscured, laminated, coated and wired glass across a wide range of pane sizes and thicknesses. It runs on two CR123A lithium batteries for up to three years of battery life, mounts by adhesive or screw, includes tamper detection and is managed through the UniFi Protect web and mobile apps. The sensor is NDAA compliant.
Features
Features
- Glass break detection with built-in microphone
- PIR motion sensing in the same compact unit
- Long-range SuperLink connectivity up to 2 km
- Built-in tamper detection
- Wire-free battery-powered installation with adhesive or screw mounting
- Management and notifications via UniFi Protect web and mobile apps
- NDAA compliant
Warranty
Warranty
Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.
Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- SuperLink proprietary wireless, up to 2 km (1.2 mi) range
- US operating frequency: 915.6-927.6 MHz
- Glass break detection with built-in microphone plus PIR motion sensor
- Detects plate, tempered, obscured, laminated, coated and wired glass
- Supported glass size: 280 x 356 mm (11 x 14") to 1067 x 1626 mm (42 x 64")
- Supported glass thickness: 2.4 mm, 3.2 mm, 4.8 mm and 6.4 mm
- Power: 2x CR123A lithium batteries, up to 3-year battery life
- Max. power consumption: 0.2 W
- Antenna gain: 1 dBi, max. TX power: 14 dBm
- Dimensions (wall mount): 134.5 x 22.5 x 24.8 mm
- Dimensions (corner mount): 134.5 x 22.5 x 27.9 mm
- Weight (with mount and batteries): 70 g (2.5 oz)
- Polycarbonate enclosure and mount
- Operating temperature: 0 to 40° C, humidity 10 to 90% noncondensing
- Certifications: FCC, IC, CE, NDAA compliant
FAQs
Q: What frequency does the USL-GlassBreak-US operate on?
A: The US version operates on 915.6-927.6 MHz using the SuperLink proprietary wireless protocol.
Q: What types of glass can it detect?
A: It detects plate, tempered, obscured, laminated, coated and wired glass, for panes from 280 x 356 mm up to 1067 x 1626 mm and thicknesses from 2.4 mm to 6.4 mm.
Q: How is the sensor powered and how long do the batteries last?
A: It is powered by two CR123A lithium batteries and provides up to three years of battery life.
Q: What management software does it require?
A: It is managed through the UniFi Protect web application and the UniFi Protect iOS and Android mobile apps.
Q: How is the sensor mounted?
A: It can be mounted with adhesive or screws, and supports both wall and corner mounting.
Q: Does it include motion detection as well as glass break detection?
A: Yes. It combines a built-in microphone for glass break detection with a PIR motion sensor.
