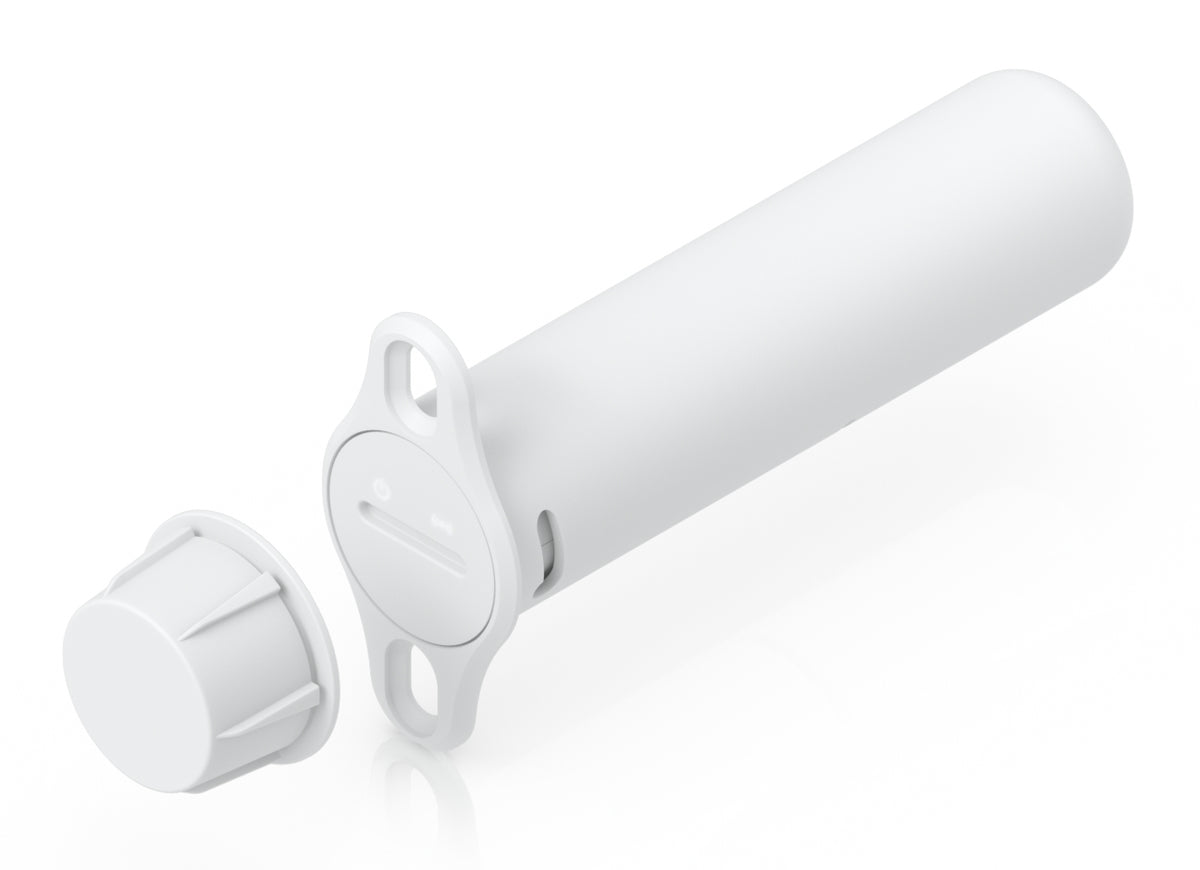

• White plastic cylindrical container with cap and handle for ubiquiti usl-entry-r unifi protect recessed entry sensor
1 1

Ubiquiti

Ubiquiti USL-ENTRY-R | UniFi Protect Recessed Entry Sensor, SuperLink, 2km, CR2

Ubiquiti USL-ENTRY-R | UniFi Protect Recessed Entry Sensor, SuperLink, 2km, CR2

Authorised Ubiquiti Partner

USL-ENTRY-R

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The UniFi Protect Recessed Entry Sensor is a battery-powered SuperLink door open/closed sensor that mounts flush into door frames for a discreet security install. This US model operates on 915.6 to 927.6 MHz and delivers up to 2 km of range, using a reed switch for reliable open and close detection that integrates directly with UniFi Protect.

Powered by a replaceable CR2 lithium battery rated for up to 3 years, the sensor includes a tamper switch, function button and factory-reset button. The polycarbonate enclosure is rated for 0 to 40 degrees Celsius operation, and the sensor is NDAA compliant. A SuperLink-capable UniFi gateway, such as the SuperLink Gateway, is required.

Features

- Recessed installation for discreet, flush mounting in door frames
- Reed-switch open/closed detection integrated with UniFi Protect
- Long-range, low-power SuperLink wireless connectivity up to 2 km
- Replaceable CR2 lithium battery with up to 3 years of battery life
- Factory-reset button, function button and tamper switch
- NDAA compliant

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- SuperLink (proprietary) wireless connectivity
- US operating frequency: 915.6 to 927.6 MHz
- Max. TX power: 14 dBm
- Max. range: 2 km (1.2 mi)
- Sensor: reed switch
- Power: lithium CR2 battery, 3V, up to 3 years battery life
- Max. power consumption: 15 mW
- Mounting: recessed screw mount
- Dimensions: device 44 x 22 x 74.5 mm; magnet 22 x 12.1 mm diameter
- Weight: 24 g device, 34 g with battery
- Enclosure and mount material: polycarbonate
- Buttons: factory-reset, function button, tamper switch
- Operating temperature: 0 to 40 C
- Operating humidity: 10 to 90% noncondensing
- Certifications: CE, FCC, IC
- NDAA compliant

FAQs

Q: What do I need to use this sensor with UniFi Protect?
A: The sensor connects over SuperLink, so it requires a SuperLink-capable UniFi gateway, such as the SuperLink Gateway, running UniFi Protect.

Q: What is the wireless range of the USL-ENTRY-R?
A: SuperLink provides a maximum range of up to 2 km (1.2 miles) in open conditions, with a maximum transmit power of 14 dBm.

Q: What battery does it use and how long does it last?
A: It uses a replaceable 3V lithium CR2 battery with a rated life of up to 3 years.

Q: How is this sensor mounted?
A: It is a recessed, screw-mount design that sits flush in a door frame, paired with a small magnet (22 mm diameter) on the door.

Q: Which frequency band does this model operate on?
A: This US model operates on 915.6 to 927.6 MHz. EU models use a different band (865.1 to 869.5 MHz).

Q: Does the sensor include tamper protection?
A: Yes. It includes a tamper switch, along with a function button and a factory-reset button.
