Ubiquiti UP-VIEWPORT | UniFi Protect ViewPort PoE HDMI Display Adapter, 4K
Ubiquiti UP-VIEWPORT | UniFi Protect ViewPort PoE HDMI Display Adapter, 4K
Authorised Ubiquiti Partner
SKU:UP-VIEWPORT
In stock:100
Couldn't load pickup availability
Description
Description

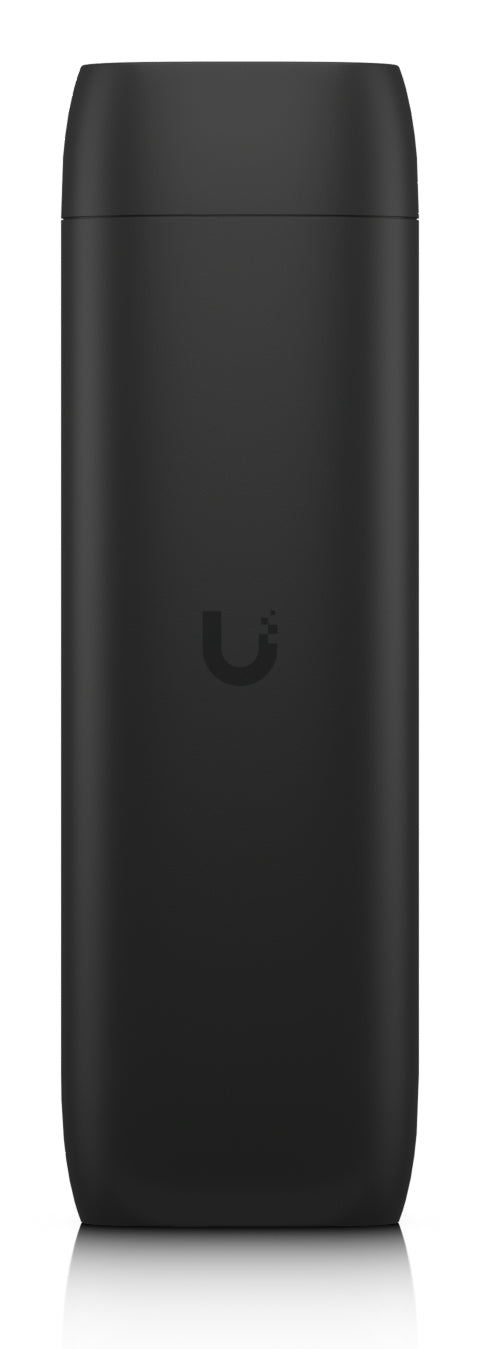

The UniFi Protect ViewPort is a PoE-powered HDMI display adapter that puts your UniFi Protect camera feeds on any TV or monitor. It outputs video at up to 4K at 30 FPS and supports a 16-stream matrix view, making it a practical live view appliance for reception areas, control rooms and security offices.
Power and data arrive over a single GbE RJ45 port using 802.3af PoE, with a draw of up to 9.5 W. A data passthrough port is included, and the polycarbonate enclosure ships with a TV mount and bracket for flexible installation. It works with UniFi Protect NVRs and can be set up through custom high-density camera matrix layouts. It is NDAA compliant.
Features
Features
- Shows UniFi Protect camera feeds on any HDMI TV or monitor
- Supports a 16-stream matrix view
- HDMI output up to 4K @ 30 FPS
- Single-cable power and connectivity using PoE
- Flexible mounting with TV mount and bracket included
- Works with UniFi Protect NVRs and custom high-density camera matrix layouts
Warranty
Warranty
Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.
Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- HDMI video output up to 4K @ 30 FPS
- 16-stream matrix view support
- (1) GbE RJ45 port (PoE in) plus data passthrough port
- Powered via PoE (802.3af), max 9.5 W
- Dimensions: 157 x 52 x 37 mm (6.2 x 2.1 x 1.5 in)
- Weight (without mount): 230 g, with TV mount: 252 g
- Enclosure and mount material: Polycarbonate
- ESD/EMP protection: Air +/-8 kV, contact +/-4 kV
- Operating temperature: 0 to 40 C, humidity 20 to 80% noncondensing
- Buttons: (1) factory reset
- NDAA compliant
- Certifications: FCC, IC, CE
- Requires UniFi Protect (web and iOS/Android app)
FAQs
Q: How is the ViewPort powered?
A: It is powered over Ethernet using 802.3af PoE through its GbE RJ45 port, with a maximum consumption of 9.5 W. A PoE switch or PoE injector is required.
Q: What resolution does the HDMI output support?
A: The HDMI output supports up to 4K at 30 FPS.
Q: How many camera streams can it display?
A: It supports a 16-stream matrix view, and you can build custom high-density camera matrix layouts in UniFi Protect.
Q: What does it need to work?
A: It works with a UniFi Protect system and requires UniFi Protect, available in the web application and on iOS and Android.
Q: Does it include mounting hardware?
A: Yes, a TV mount and bracket are included for flexible installation behind a display or on a wall.
Q: Is it NDAA compliant?
A: Yes, the UniFi Protect ViewPort is NDAA compliant.
