Ubiquiti UISP-BOX | UISP Box Outdoor Enclosure, IPX6, Pole or Wall Mount

Name: Ubiquiti UISP-BOX | UISP Box Outdoor Enclosure, IPX6, Pole or Wall Mount
Brand: Ubiquiti
SKU: UISP-Box
Price: 136.28 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:UISP-Box

In stock:5

$136.28 inc. GST

$123.89 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

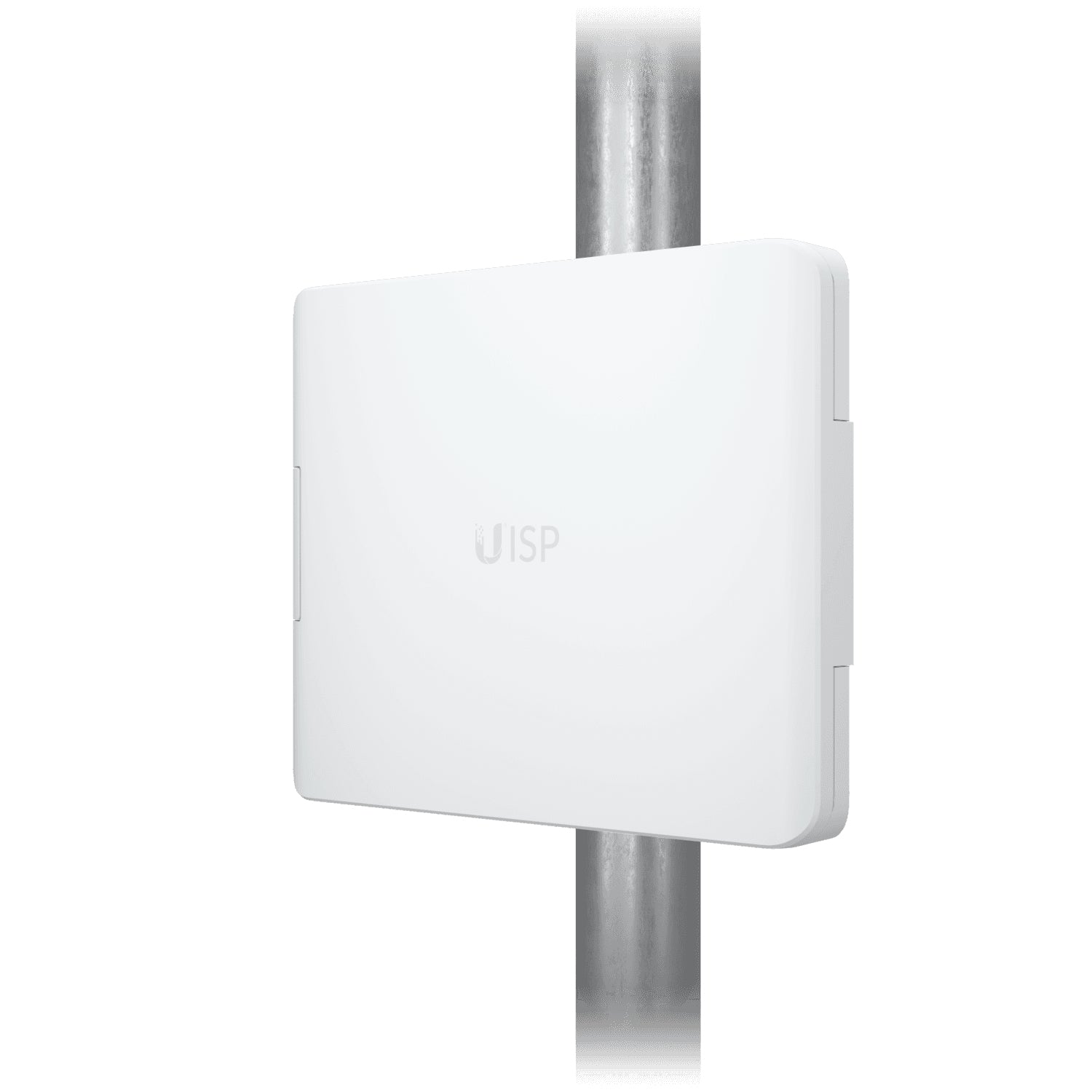

The Ubiquiti UISP Box is a compact outdoor enclosure designed to house UISP-R routers and UISP-S switches in exposed installations. With IPX6-rated water resistance and a UV-stabilised polycarbonate shell, it protects network gear on rooftops, towers, poles and exterior walls.

The enclosure can be mounted to a pole between 35 and 60 mm in diameter or fixed to a wall, and is rated for wind endurance up to 200 km/hr. It connects to an existing UISP R/S power supply, and a Power TransPort Cable is required for operation (sold separately).

Features

- IPX6-rated water resistance for outdoor deployments
- Pole or wall-mountable for flexible installation
- Connects to an existing UISP R/S power supply
- Compatible with UISP Router and UISP Switch
- UV-stabilised polycarbonate enclosure resists sun exposure
- Power TransPort Cable required for operation (sold separately)

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- IPX6-rated water resistance
- Compatible with UISP-R and UISP-S
- Dimensions: 320 x 250 x 46.28 mm (12.6 x 9.84 x 1.82 in)
- Weight: 1.42 kg (3.22 lb)
- Enclosure material: UV-stabilised polycarbonate
- Wind endurance: up to 200 km/hr (124.27 mph)
- Pole mount diameter: 35 to 60 mm (1.38 to 2.36 in)

FAQs

Q: Which devices does the UISP Box house?
A: The UISP Box is designed for UISP-R routers and UISP-S switches, allowing them to be deployed outdoors.

Q: How can the UISP Box be mounted?
A: It can be mounted on a pole with a diameter of 35 to 60 mm, or fixed to a wall.

Q: What water resistance rating does the UISP Box have?
A: The enclosure is IPX6-rated, protecting enclosed equipment against powerful water jets.

Q: Does the UISP Box include a power supply?
A: No. It connects to an existing UISP R/S power supply, and a Power TransPort Cable is required for operation and sold separately.

Q: What are the dimensions and weight of the UISP Box?
A: It measures 320 x 250 x 46.28 mm and weighs 1.42 kg.

Q: What wind loads can the enclosure withstand?
A: The UISP Box is rated for wind endurance up to 200 km/hr (124.27 mph).
