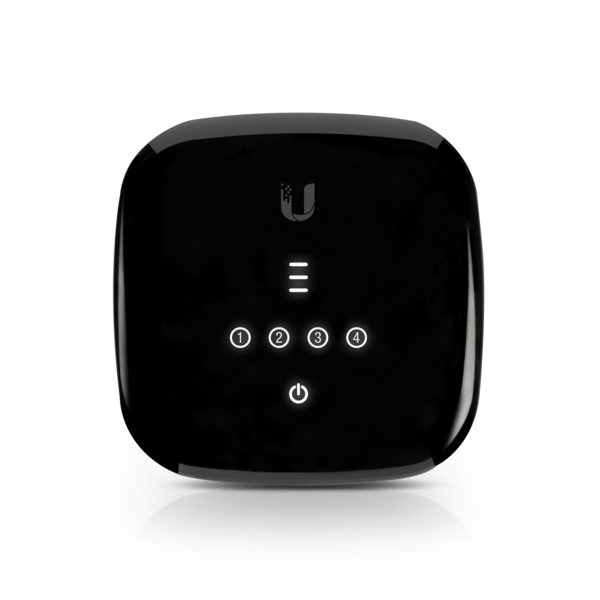

Ubiquiti UF-WIFI-AU | UFiber WiFi GPON ONU Router, AU Version, 4x GbE

Ubiquiti UF-WIFI-AU | UFiber WiFi GPON ONU Router, AU Version, 4x GbE

UF-WIFI-AU

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Ubiquiti UF-WIFI-AU is a UFiber WiFi GPON ONU and WiFi router for fibre-to-the-home deployments. It pairs an SC/APC GPON WAN port with four Gigabit RJ45 LAN ports and 802.11n 2x2 MIMO wireless up to 300 Mbps. This is the AU/International version, supplied with a 24V/0.5A power adapter.

The UF-WIFI-AU operates at GPON speeds of 2.488 Gbps downstream and 1.244 Gbps upstream over links up to 20 km. It can be powered by the supplied adapter or by 24V passive PoE, and is configured in routing or bridge mode through the UFiber OLT. It is designed to work with the UFiber OLT only and is not compatible with third-party OLTs.

Buy from iptrading.com.au for genuine hardware and reliable service.

Features

- All-in-one GPON ONU and WiFi router for FTTH deployments
- Routing and bridge modes configured via the UFiber OLT
- Compatible with UFiber OLT only
- Powered by 24V passive PoE or included power adapter

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1 x SC/APC ITU-G.984 GPON WAN port
- 4 x GbE RJ45 LAN ports
- WiFi 802.11n, 2x2 MIMO, up to 300 Mbps
- GPON speeds: 2.488 Gbps downstream / 1.244 Gbps upstream
- Links up to 20 km
- Power: 24V DC jack (24V/0.5A adapter) or 24V passive PoE
- Supported voltage range: 10-30V DC (passive PoE)
- Max power consumption: 7W
- Optical range: TX 1.5 to 5 dBm, RX -8 to -28 dBm
- Dimensions: 126.3 x 126.1 x 31.7 mm
- Weight: 190 g
- Enclosure: UV-stabilised polycarbonate
- Management: In-band Ethernet / PON

FAQs

Q: Does the UF-WIFI-AU work with third-party OLTs?
A: No. It is designed to work only with the UFiber OLT and cannot be used with third-party OLTs.

Q: How is the UF-WIFI-AU powered?
A: It can be powered by the supplied 24V/0.5A adapter through the DC jack or by 24V passive PoE.

Q: What WAN and LAN ports does it provide?
A: It has one SC/APC GPON WAN port and four Gigabit RJ45 LAN ports.

Q: What wireless standard does it support?
A: It supports 802.11n WiFi with 2x2 MIMO at speeds up to 300 Mbps.

Q: How far can the GPON link reach?
A: The GPON link supports distances up to 20 km.

Q: How is the UF-WIFI-AU managed?
A: It is configured for routing or bridge mode through the UFiber OLT using in-band Ethernet / PON management.
