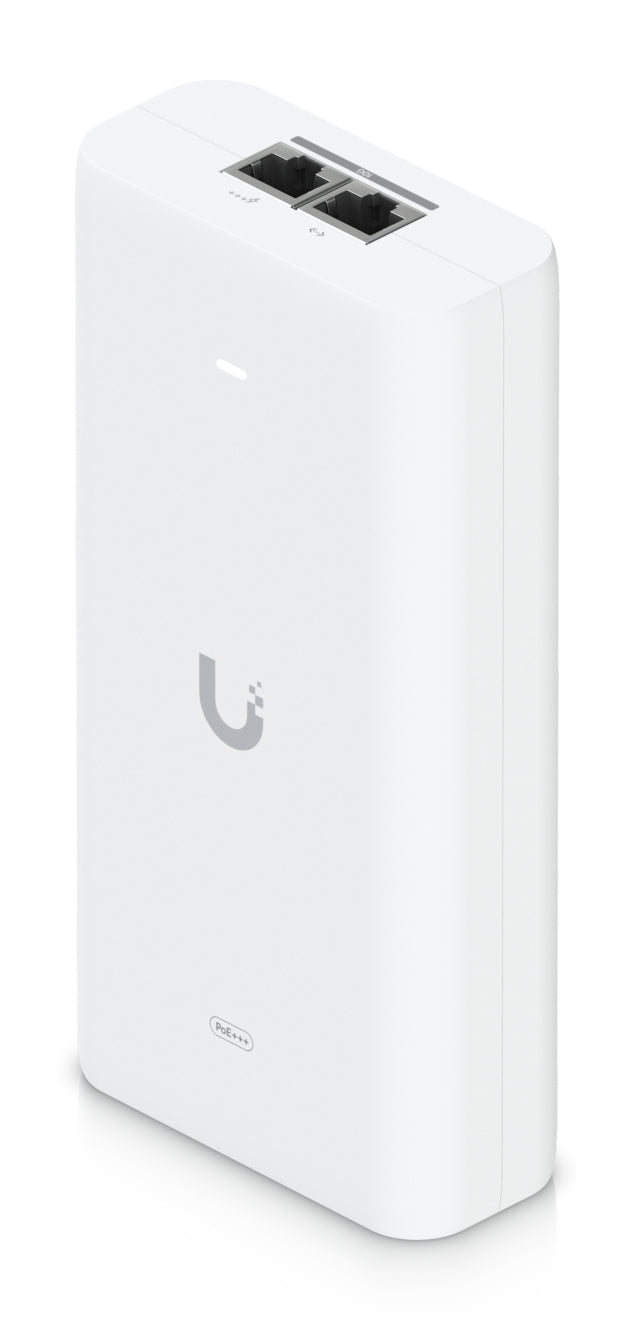

Ubiquiti UACC-POE+++-10G | UniFi 10G PoE+++ Injector, 90W, 54V, RJ45

Ubiquiti UACC-POE+++-10G | UniFi 10G PoE+++ Injector, 90W, 54V, RJ45

Authorised Ubiquiti Partner

SKU:UACC-POE+++-10G

$100.25 inc. GST
$91.14 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 173

Description

The UniFi 10G PoE+++ Injector delivers up to 90W of PoE+++ power at 54V DC over a shielded RJ45 connection, with 10G multi-gigabit data pass-through. It lets you power UniFi PoE+++ devices without relying on a PoE switch power budget, which suits deployments where the switch cannot supply 90W on a single port.

Built-in surge, peak pulse and overcurrent protection helps safeguard connected equipment. It accepts 100-240V AC input with an included power cable, and supports wall mounting, with DIN rail and floating mount options available separately. It can power UniFi PoE+++ devices such as the USW-Flex-2.5G-8-PoE and UP-AlarmHub-Kit, and is NDAA compliant.

Features

- Delivers up to 90W of PoE+++ to power high-draw UniFi devices
- 10G multi-gigabit data pass-through over RJ45
- Reduces dependence on PoE switch power budgets
- Surge, peak pulse and overcurrent protection
- LED indicator for status monitoring
- Wall mount, DIN rail and floating mount support (DIN rail and floating mount sold separately)
- Powers UniFi PoE+++ devices such as USW-Flex-2.5G-8-PoE and UP-AlarmHub-Kit
- NDAA compliant

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Output: up to 90W PoE+++, 54V DC @ 1.67A
- Data: 10G multi-gigabit pass-through, shielded RJ45 socket
- Input: 100-240V AC, 50/60Hz, 1.5A max
- 4-pair powering: pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
- Efficiency: >88%
- Clamping protection: 11V data, 60V power
- Max surge discharge: 1500A (8/20 us), peak pulse current 36A (10/1000 us)
- Dimensions: 164.5 x 81 x 42 mm
- Weight: 372 g
- Operating temperature: 0 to 40 C, humidity 10 to 95% noncondensing
- Power cable included
- NDAA compliant

FAQs

Q: How much power does this injector deliver?
A: It delivers up to 90W of PoE+++ output at 54V DC and 1.67A.

Q: Does it support 10G data speeds?
A: Yes. It passes multi-gigabit 10G data through its shielded RJ45 connection.

Q: Which devices can it power?
A: It can power UniFi PoE+++ devices such as the USW-Flex-2.5G-8-PoE and UP-AlarmHub-Kit.

Q: Is a power cable included?
A: Yes. A power cable with earth ground is included, and the injector accepts 100-240V AC input.

Q: What mounting options are available?
A: It supports wall mounting, as well as DIN rail and floating mounts, which are sold separately.

Q: What protection does it provide?
A: It includes surge, peak pulse and overcurrent protection for connected equipment.
