Ubiquiti UACC-ETH-SP-PRO | Outdoor Ethernet Surge Protector, 20kA, IPX5, 10GbE

Ubiquiti UACC-ETH-SP-PRO | Outdoor Ethernet Surge Protector, 20kA, IPX5, 10GbE

Authorised Ubiquiti Partner

SKU:UACC-ETH-SP-Pro

$46.05 inc. GST
$41.86 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 102

Description

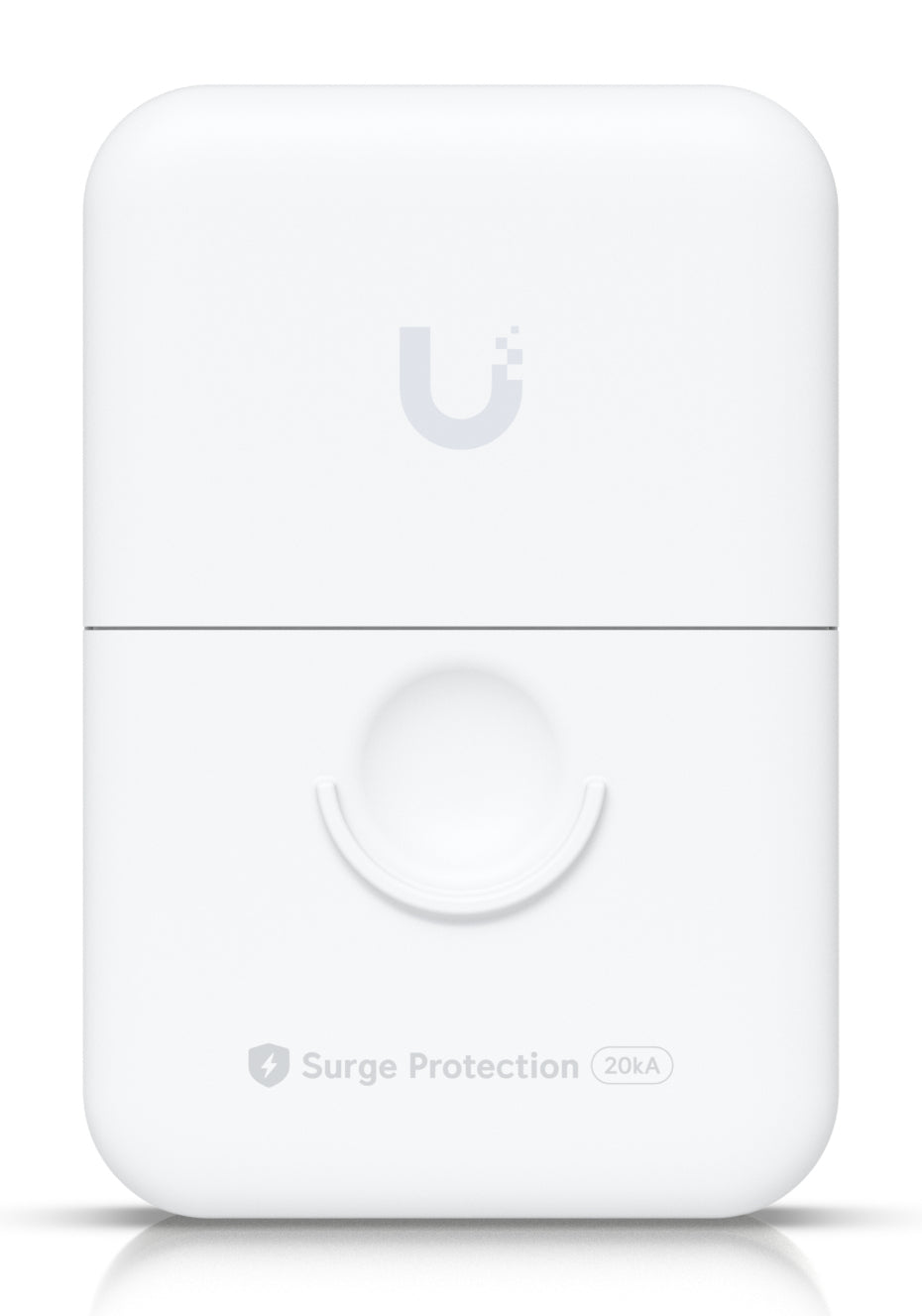

The Ubiquiti UACC-ETH-SP-PRO is a passive outdoor Ethernet surge protector with a 20kA discharge current rating, designed to shield outdoor network devices such as access points and cameras from ESD and voltage surges. Two surge-protected RJ45 ports support data lines up to 10 Gbps and pass PoE, so it can sit inline on a powered outdoor cable run.

The polycarbonate enclosure is rated IPX5 for weatherproofing and operates from -30 to 65 C, making it suited to exposed rooftop, pole and wall installations. Its low 1.0 pF maximum capacitance preserves high-speed signal integrity, and the compact 91 x 61 x 32.5 mm body keeps installation quick and straightforward.

Features

- ESD and surge protection for outdoor high-speed networks
- Protects outdoor Ethernet devices up to 20kA discharge current
- 2 passive, surge-protected RJ45 connections
- PoE pass-through support
- Compatible with 10 GbE networks
- IPX5 weatherproof polycarbonate enclosure
- Quick and easy installation

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- 2 x passive RJ45 female surge-protected ports
- Discharge current: 20kA
- Data line protection: up to 10 Gbps
- PoE support: Yes
- Weatherproofing: IPX5
- Enclosure material: Polycarbonate
- DC spark-over voltage: 90V @ 100V/s
- Max. impulse spark-over voltage: 600V @ 1kV/µs
- Insulation: max. resistance 1G ohm @ 50V
- Max. capacitance: 1.0 pF @ 1 MHz
- Dimensions: 91 x 61 x 32.5 mm
- Weight: 95 g
- Operating temperature: -30 to 65 C
- Operating humidity: 10 to 90% noncondensing
- Shock and vibration certification: ETSI300-019-1.4

FAQs

Q: Does the UACC-ETH-SP-PRO pass PoE?
A: Yes. It supports PoE, so it can be installed inline on a powered Ethernet run to an outdoor access point or camera.

Q: What network speeds does it support?
A: The data line protection supports speeds up to 10 Gbps, so it is compatible with 10 GbE networks as well as slower links.

Q: Is it suitable for outdoor installation?
A: Yes. It has an IPX5-rated polycarbonate enclosure and an operating temperature range of -30 to 65 C.

Q: What is the surge protection rating?
A: It is rated for a 20kA discharge current, with a 90V DC spark-over voltage and a 600V maximum impulse spark-over voltage.

Q: How many ports does it have and are they powered?
A: It has two passive RJ45 female ports. It needs no power of its own and works passively on the cable run.

Q: Does it need to be grounded?
A: Surge protectors of this type are normally grounded to divert surge energy safely. Follow the installation guidance for your site and use a qualified installer.
