Ubiquiti UA-ULTRA | UniFi Access Reader Ultra, White, Built-in Hub, PoE+

Name: Ubiquiti UA-ULTRA | UniFi Access Reader Ultra, White, Built-in Hub, PoE+
Brand: Ubiquiti
SKU: UA-ULTRA
Price: 219.31 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:UA-ULTRA

In stock:28

$219.31 inc. GST

$199.37 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

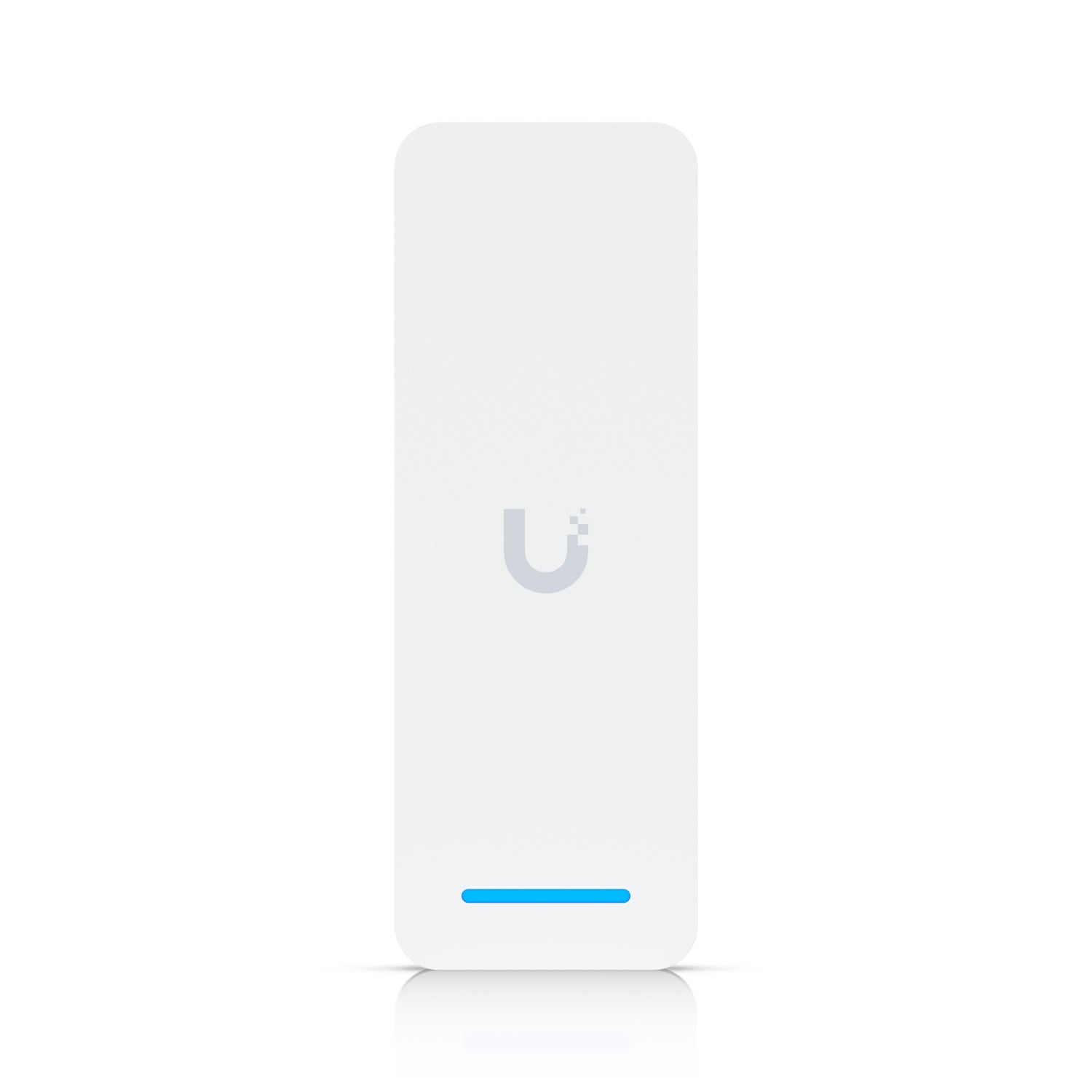

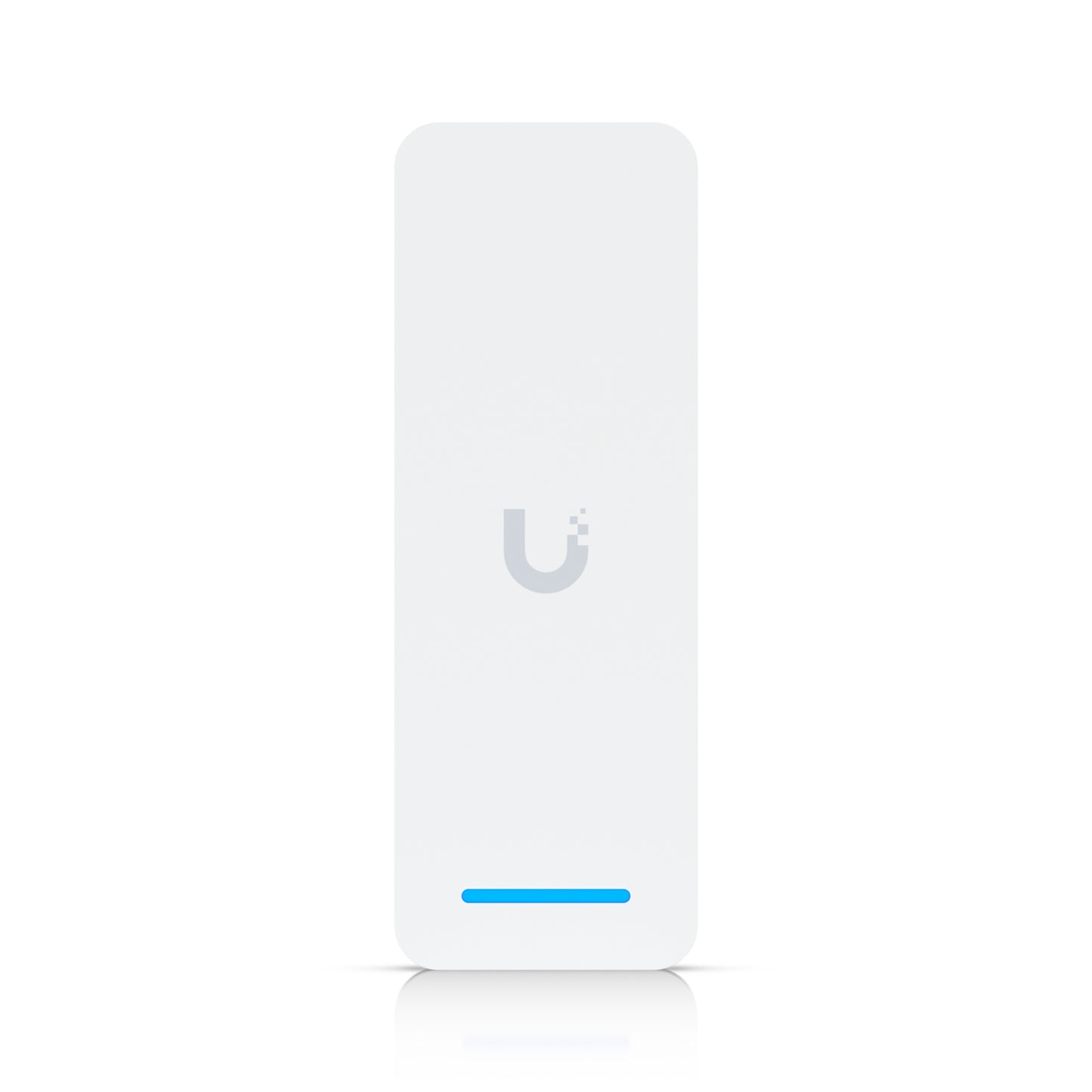

The Ubiquiti UA-ULTRA UniFi Access Reader Ultra is a tamper-resistant NFC access reader with a built-in hub, delivering single-door entry control from one PoE+ powered device. This white model removes the need for a separate hub, simplifying door access deployments for offices, retail sites and commercial buildings. Users unlock with NFC cards or the UniFi Identity mobile app.

The reader provides a 12V/1A lock terminal for direct connection to an electric strike or lock, plus an exit request input. With IP55 weather resistance and an operating range of -30 to 40 C, it suits both indoor and outdoor entrances, and the included wall mount and gang box mount hardware covers common installation scenarios. It manages up to 3,000 users and integrates with the UniFi Access ecosystem.

Features

- Tamper-resistant access reader with built-in hub, so no separate hub is needed for single-door control
- Unlock with an NFC card or the UniFi Identity mobile app
- PoE+ powered, with a 12V/1A lock terminal for direct connection to an electric strike or lock
- IP55 weather resistance, suitable for indoor and outdoor use
- ESD/EMP protection and a tamper detection switch
- Wall mount or gang box mount, with stainless steel hardware included

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Built-in hub for single-door entry control
- NFC 13.56 MHz, read range under 50 mm
- NFC standards: ISO 14443A, 14443B, 15693
- Supports MIFARE Classic, Plus, Ultralight and DESFire
- Bluetooth Low Energy 4.2 mobile unlock
- 1 x 10/100 MbE RJ45 port, PoE+ powered
- Maximum power consumption: 18 W
- 1 x 12V/1A lock terminal, 1 x exit request input
- Maximum user count: 3,000
- IP55 weatherproof, indoor and outdoor use
- Operating temperature: -30 to 40 C, humidity 5 to 90% noncondensing
- ESD/EMP protection: Air ±8 kV, contact ±4 kV
- Tamper switch and buzzer, factory reset button
- Polycarbonate and aluminium alloy enclosure, stainless steel mount
- Dimensions: 126 x 45 x 37.45 mm, weight 140 g

FAQs

Q: Do I need a separate hub to use the UA-ULTRA?
A: No. The reader has a built-in hub that handles single-door entry control from one device, so no additional hub is required for a single door.

Q: How is the UA-ULTRA powered?
A: It is powered over PoE+ through its 10/100 MbE RJ45 port and draws a maximum of 18 W. A PoE+ capable switch or injector is required.

Q: Can it connect directly to an electric lock?
A: Yes. It provides a 12V/1A lock terminal for an electric strike or lock, and an exit request input for a push-to-exit button.

Q: How can users unlock a door with this reader?
A: Users can tap an NFC card or keyfob, or unlock with the UniFi Identity mobile app using Bluetooth Low Energy 4.2.

Q: Is the UA-ULTRA suitable for outdoor installation?
A: Yes. It is rated IP55 and operates from -30 to 40 C, so it can be installed at indoor and outdoor entrances.

Q: How is the reader mounted?
A: It supports wall mounting or gang box mounting, with stainless steel mount hardware included. A junction box is optional.
