Ubiquiti UA-RETROFIT-HUB-2 | UniFi Access Retrofit Hub 2, 2-Door, DC Powered, Wiegand/OSDP

Name: Ubiquiti UA-RETROFIT-HUB-2 | UniFi Access Retrofit Hub 2, 2-Door, DC Powered, Wiegand/OSDP
Brand: Ubiquiti
SKU: UA-RETROFIT-HUB-2
Price: 531.3 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:UA-RETROFIT-HUB-2

In stock:36

$531.30 inc. GST

$483.00 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

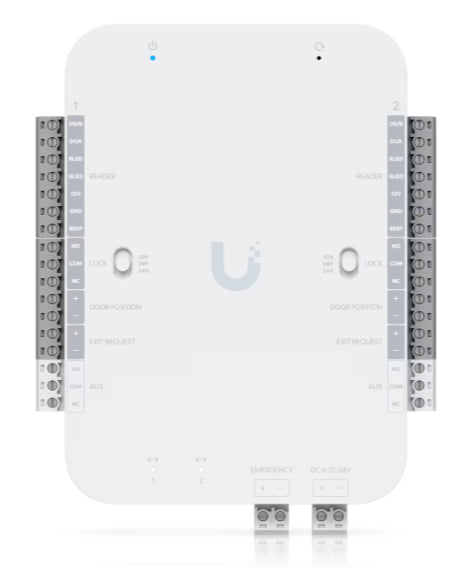

The Ubiquiti UniFi Access Retrofit Hub 2 is a DC-powered, 2-door access controller that supports Wiegand and OSDP readers. It handles entry and exit control for up to two doors, making it a practical way to bring existing third-party door hardware into a UniFi Access system without a full re-install.

The hub accepts up to 10,000 users and provides reader, door exit request, door position and emergency inputs, plus dry and powered relay outputs for lock control. A DIN-rail mount is included and the polycarbonate enclosure is suited to indoor installation in comms cupboards and electrical enclosures. It is NDAA compliant and UL 294 Level I rated.

Features

- Supports Wiegand and OSDP readers
- Entry and exit control for up to two doors
- Retrofits existing door hardware into UniFi Access
- Supports up to 10,000 users
- DIN-rail mount included
- UL 294 Level I rated
- NDAA compliant

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Supports 2 doors
- Maximum user count: 10,000
- Power: 12/24V DC
- Input terminals: 2x third-party Wiegand reader / UniFi Retrofit Reader, 2x door exit request, 2x door position, 1x emergency
- Dry output relay: lock and aux rated 30V DC up to 1A
- Powered output relay: 12V lock 12V DC up to 1A, 24V lock 24V DC up to 0.5A
- Network interface: 1x 1000BASE-T
- Dimensions: 140 x 120 x 45 mm
- Weight: 420 g
- Enclosure: polycarbonate, SGCC steel mount
- Mounting: DIN-rail (included)
- Operating temperature: -10 to 40 C
- Operating humidity: 5 to 90% noncondensing
- Indoor use only
- NDAA compliant
- UL 294 Level I: destructive attack, line security, endurance, standby power

FAQs

Q: How many doors can the UniFi Access Retrofit Hub 2 control?
A: It supports entry and exit control for up to two doors.

Q: Which readers does it support?
A: It supports Wiegand and OSDP readers, including third-party Wiegand readers and the UniFi Retrofit Reader.

Q: How is the hub powered?
A: It is DC powered, accepting 12/24V DC.

Q: How many users can it hold?
A: The hub supports a maximum of 10,000 users.

Q: Can it be installed outdoors?
A: No. It is rated for indoor use only, with an operating range of -10 to 40 C.

Q: How is it mounted?
A: A DIN-rail mount is included in the box.
