Ubiquiti UA-G3-SK-Elevator | UniFi Access G3 Elevator Starter Kit, 18-Floor Access Control

Ubiquiti UA-G3-SK-Elevator | UniFi Access G3 Elevator Starter Kit, 18-Floor Access Control

UA-G3-SK-Elevator

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

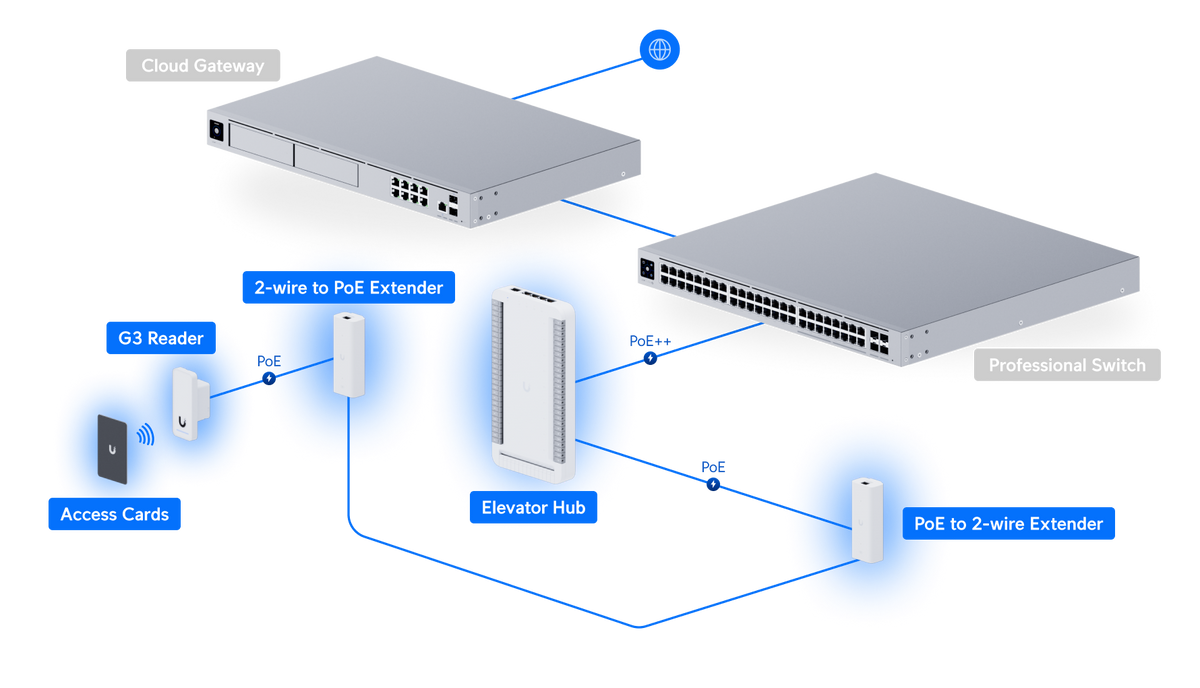

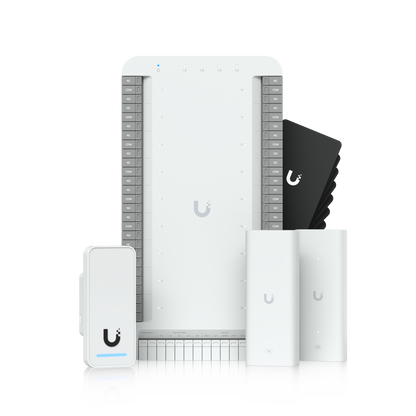

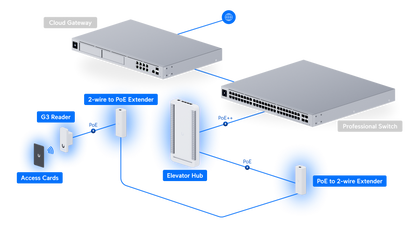

The UniFi Access G3 Elevator Starter Kit is a PoE-powered elevator access control solution designed to authorise floor selection for up to 18 floors, making it ideal for commercial buildings, hotels, and multi-tenancy environments. This kit upgrades the previous UA-SK-Elevator with a next-generation G3 Reader, and includes an Elevator Hub, G3 NFC Reader, two 2-wire PoE extenders, and 10 Access Cards — plus 10 complimentary 1-year Touch Passes. The 2-wire PoE extender technology leverages existing coaxial or twisted-pair low-voltage cabling, eliminating costly new cable runs.

Managed entirely through the UniFi Access application, the kit supports multiple authentication methods including NFC (13.56 MHz, MIFARE DESFire), PIN code, and agent-based unlocking, with controlled per-floor permissions for up to 6,000 users. Digital inputs provide elevator car status and emergency signalling, while fail-safe and fail-secure terminal modes ensure reliable operation during power outages. NDAA compliant and eligible for UI Care 5-year coverage. Order now at iptrading.com.au — trusted by Australian IT professionals.

Features

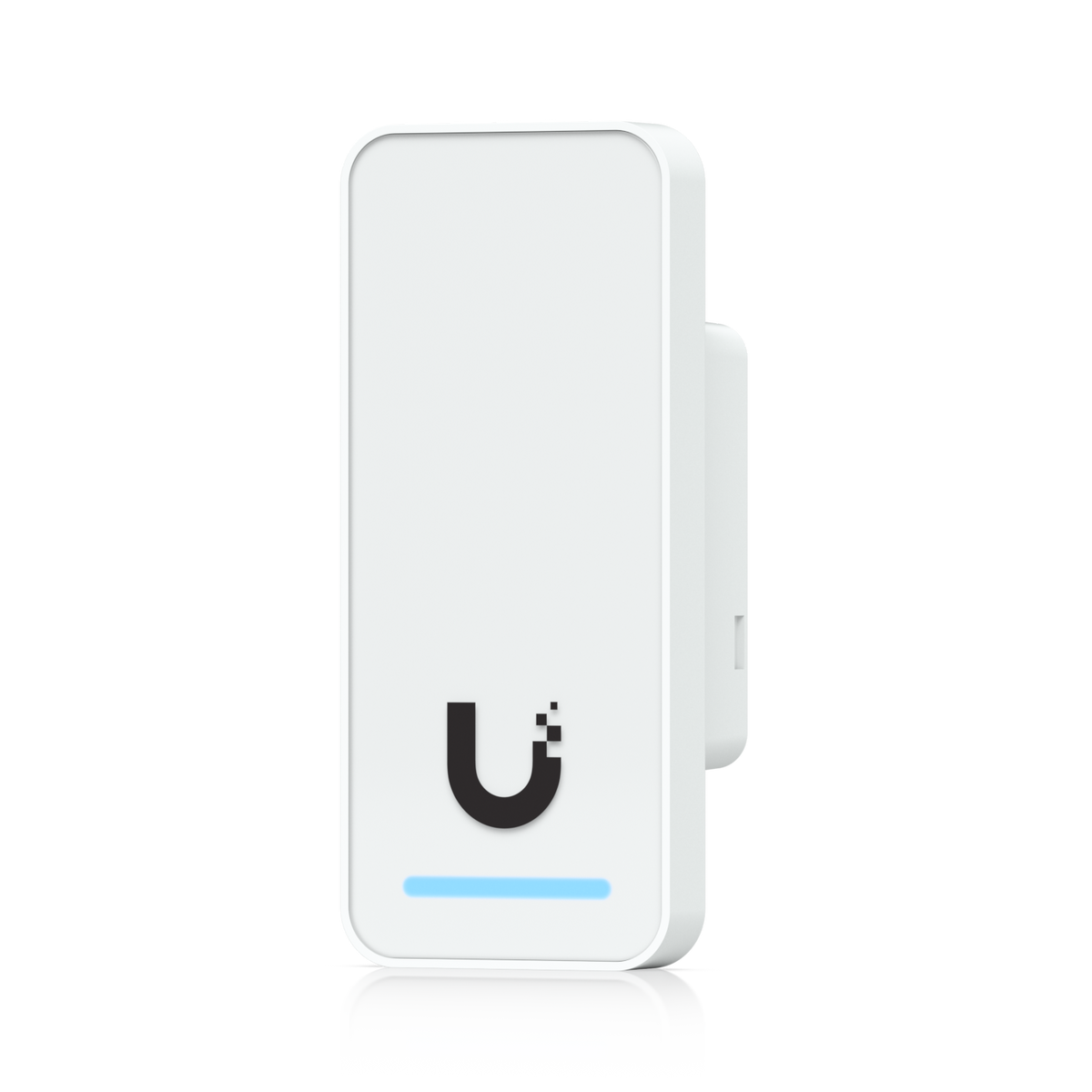

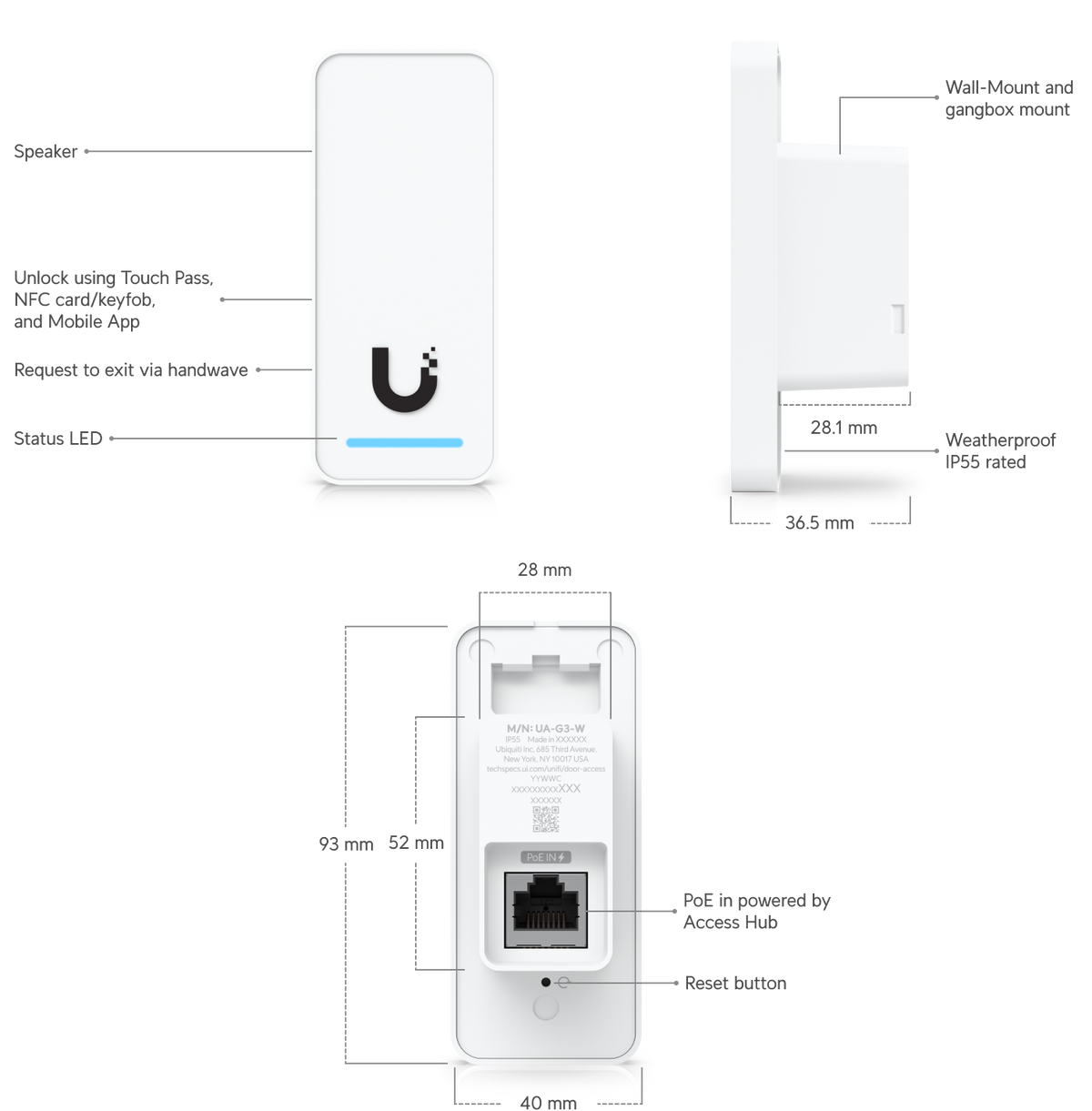

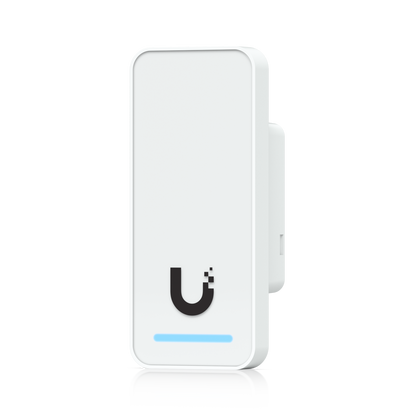

- Upgraded G3 Reader — next-generation NFC reader replacing the G2 Reader in the original UA-SK-Elevator
- Authorises floor selection for up to 18 floors with per-user permission control

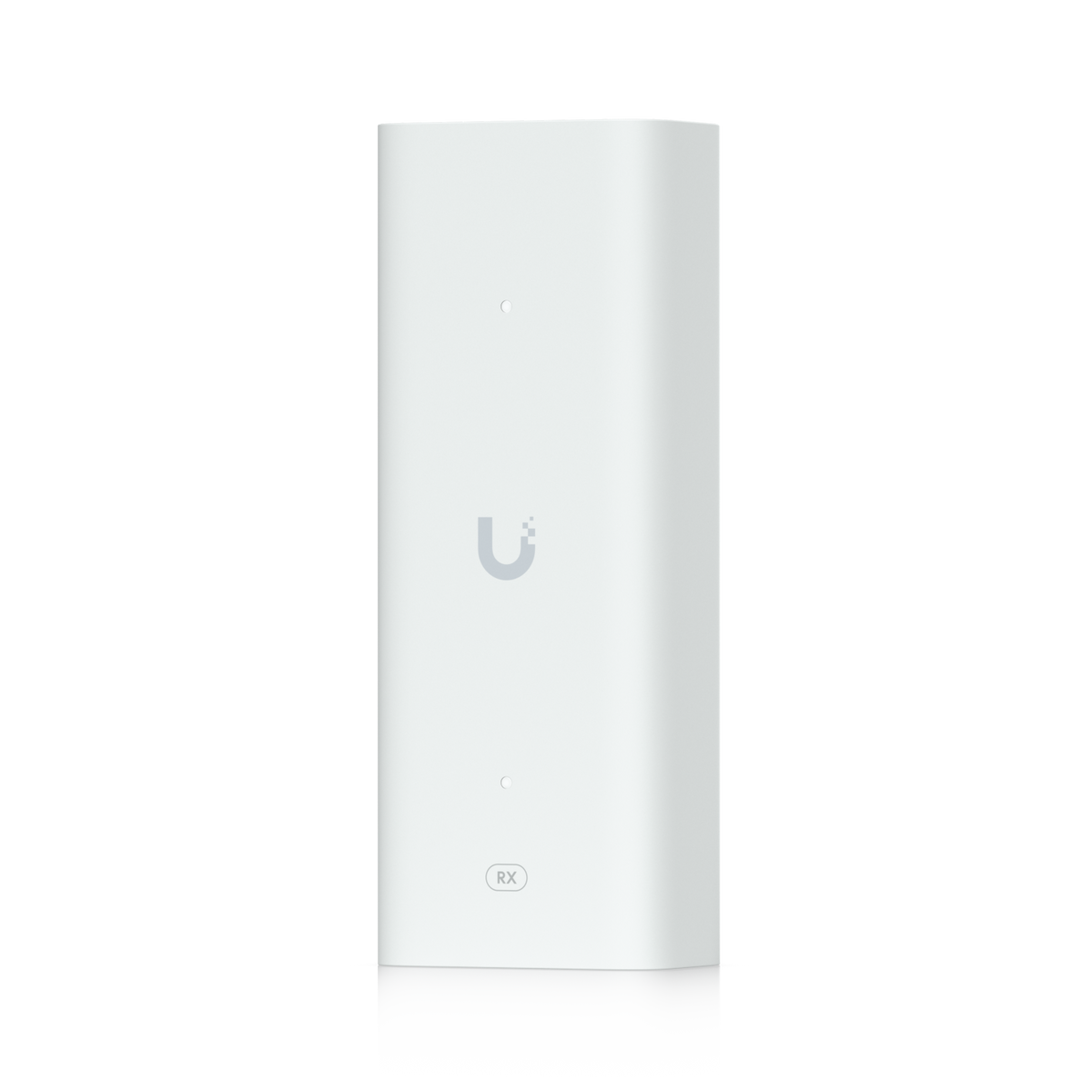

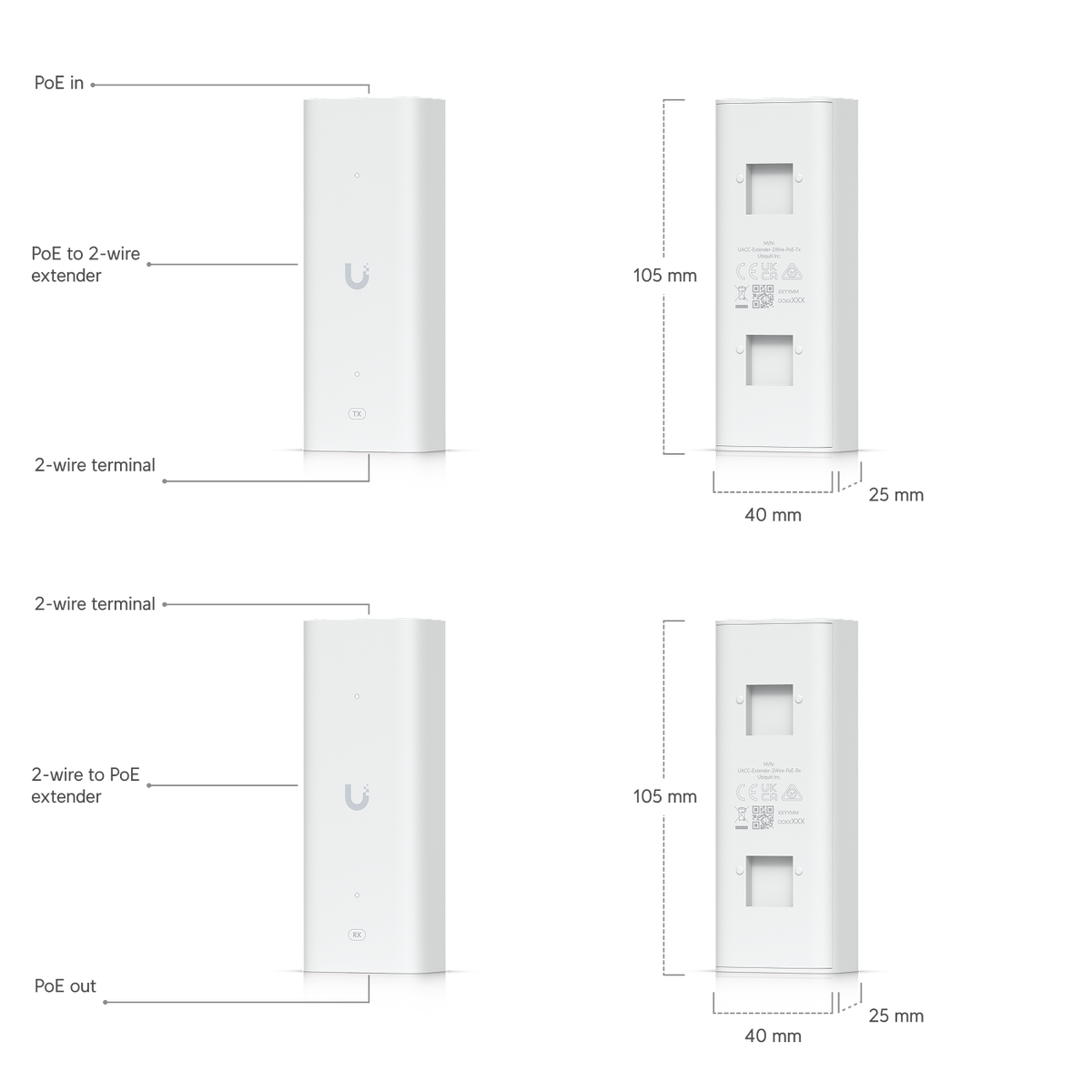

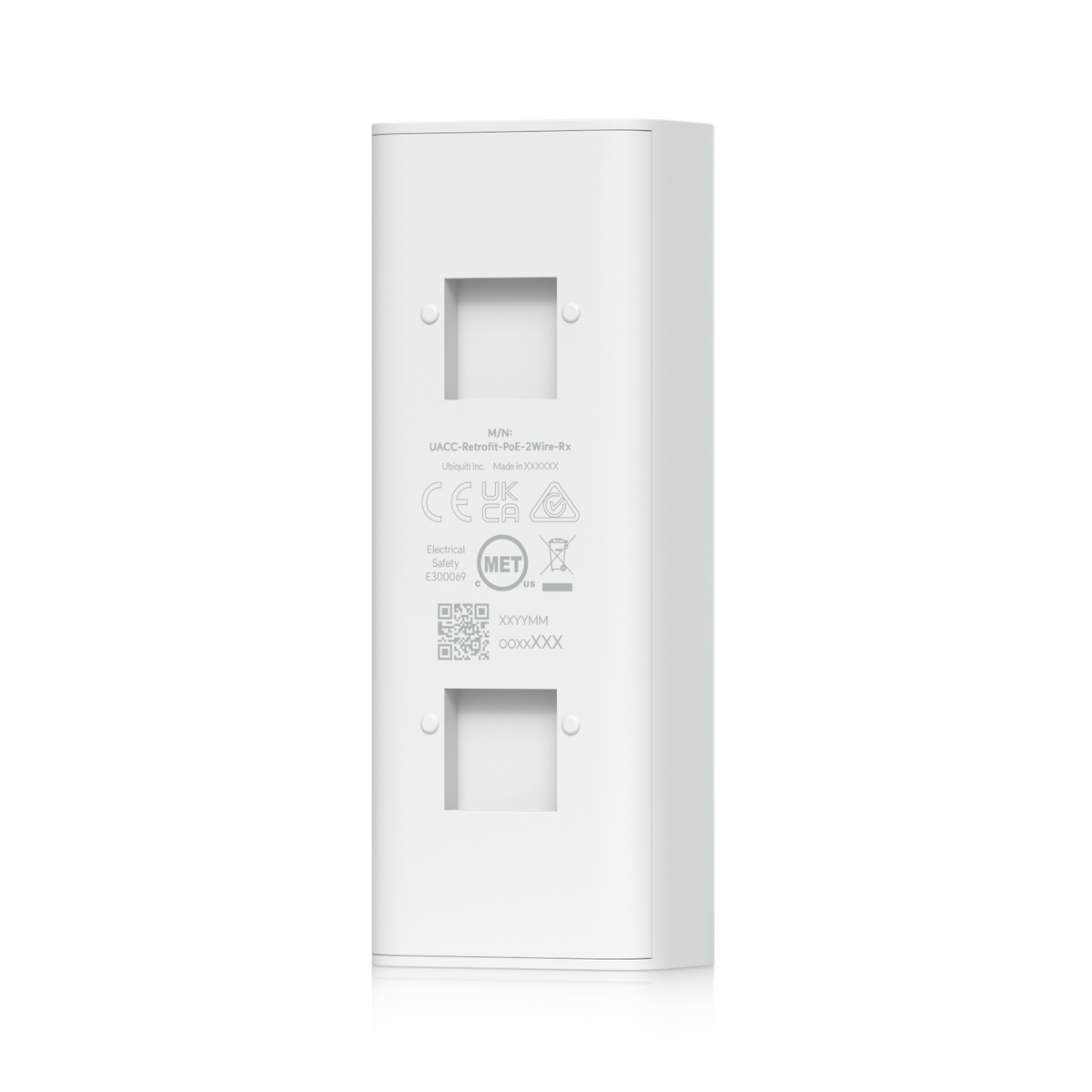

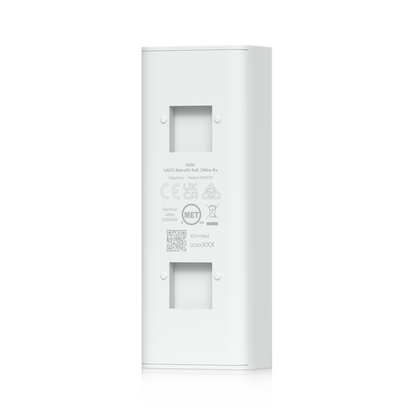

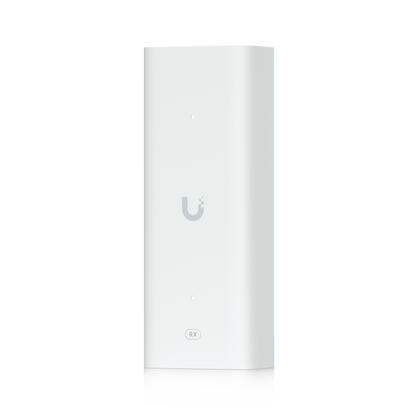

- 2-wire PoE extender technology works with existing coaxial or twisted-pair low-voltage cabling — no new runs required
- Digital inputs for elevator car status monitoring and emergency signalling
- Fail-safe and fail-secure terminal modes for configurable power-outage behaviour
- Multiple authentication methods: NFC Access Cards, PIN code, or agent remote unlock
- Managed via the UniFi Access application for centralised user and access management
- Touch Pass support for modern contactless mobile-based access
- Supports up to 6,000 users across the system
- NDAA compliant for government and regulated environments
- Includes 10 complimentary 1-year Touch Passes
- UI Care 5-year coverage option available

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Supported Floors: Up to 18
- Maximum User Count: 6,000

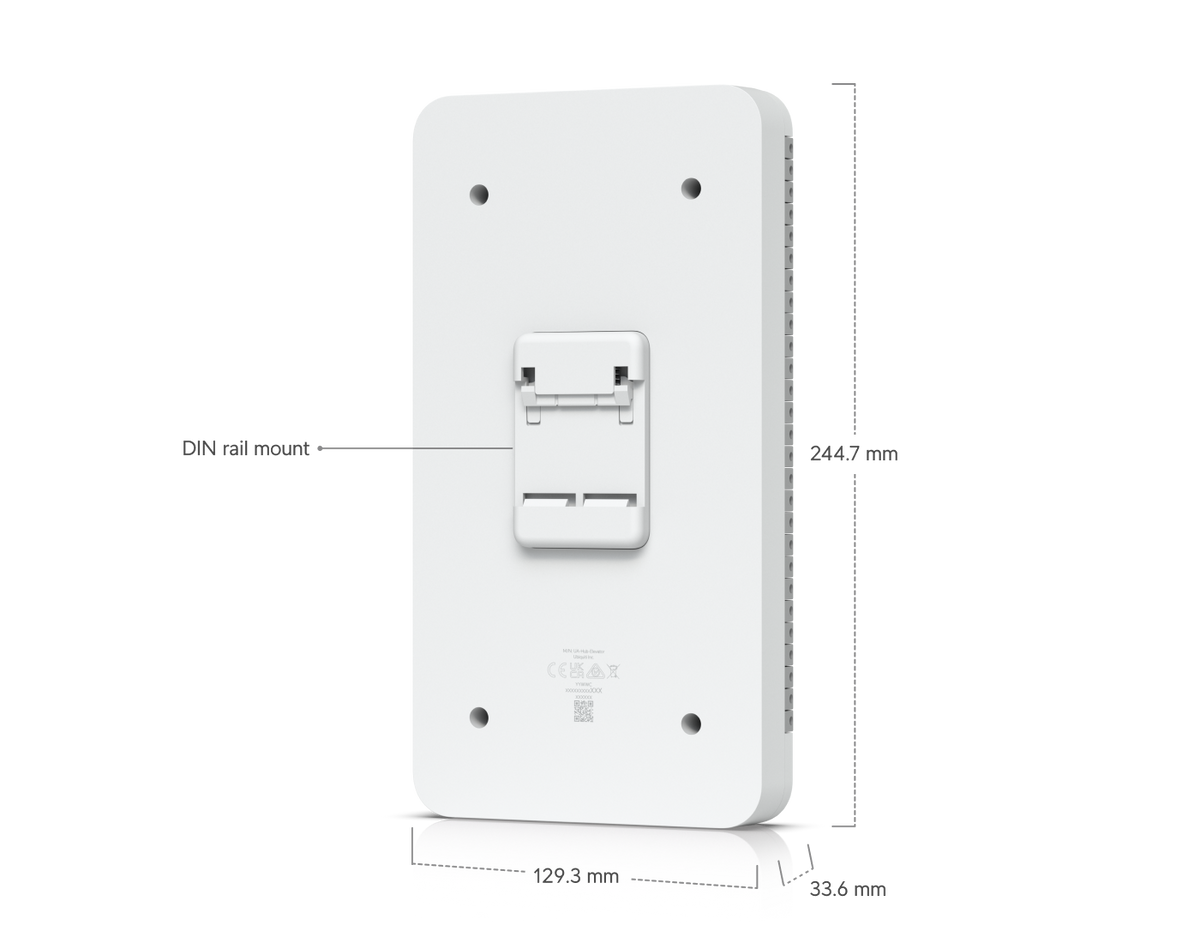

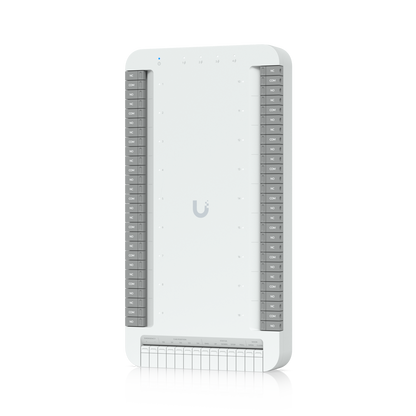

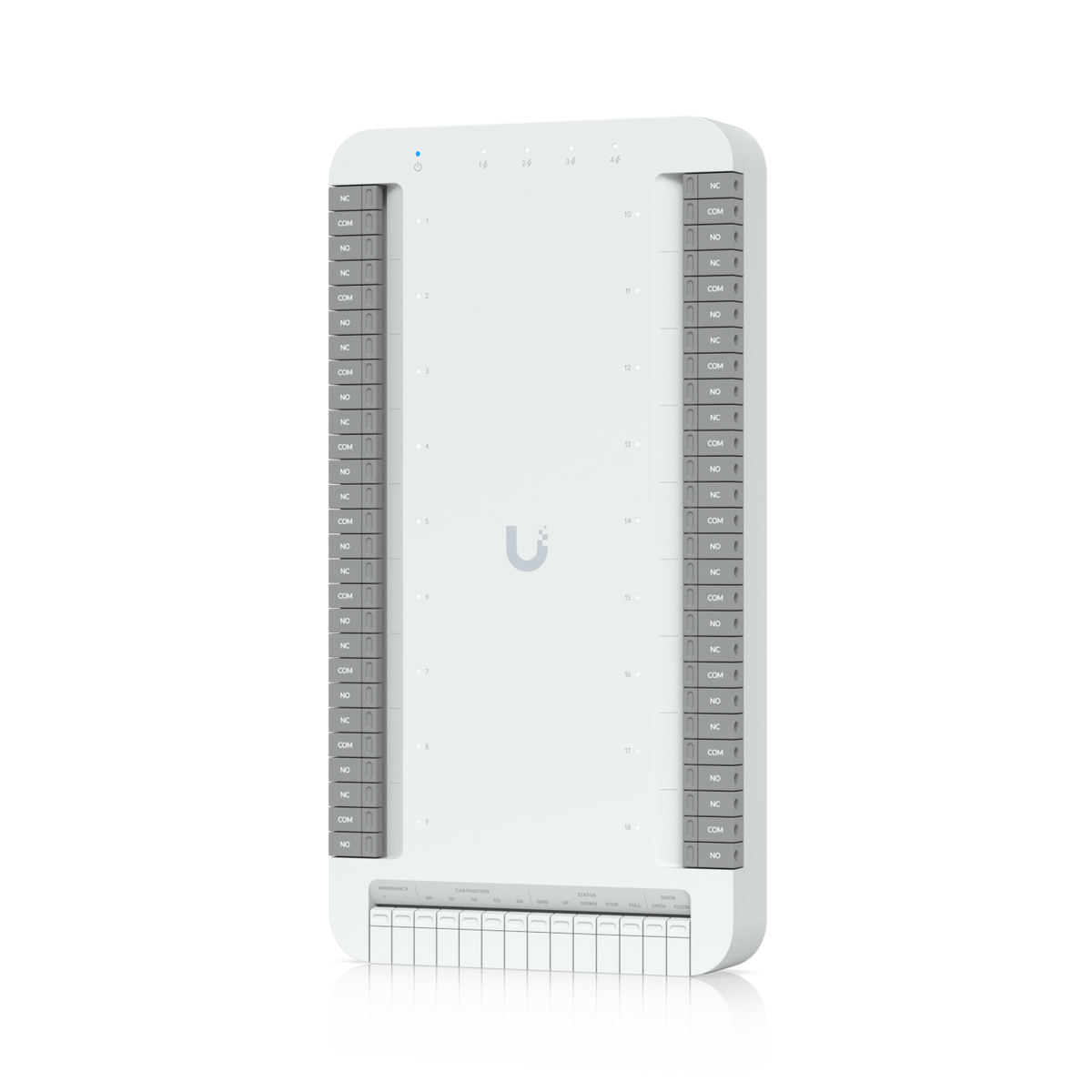

- Elevator Hub Dimensions: 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
- Elevator Hub Weight: 537 g (1.2 lb)
- Elevator Hub Enclosure: Polycarbonate
- Power Method: PoE++ input / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
- PoE Interface: (1) PoE++ input, 50V DC, 1.2A; (4) PoE+ outputs, 50V DC, 30W per port (45W aggregated max)
- Networking Interface: (4) 10/100/1000 Base-T
- Management Interface: (1) 10/100/1000 Base-T
- NFC Frequency: 13.56 MHz
- NFC Technology: ISO/IEC 14443 Type A, MIFARE DESFire, UniFi Access Proprietary Security Protocol

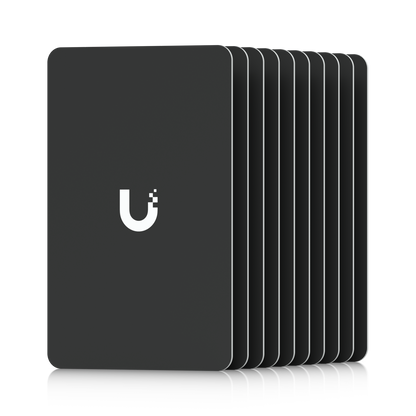

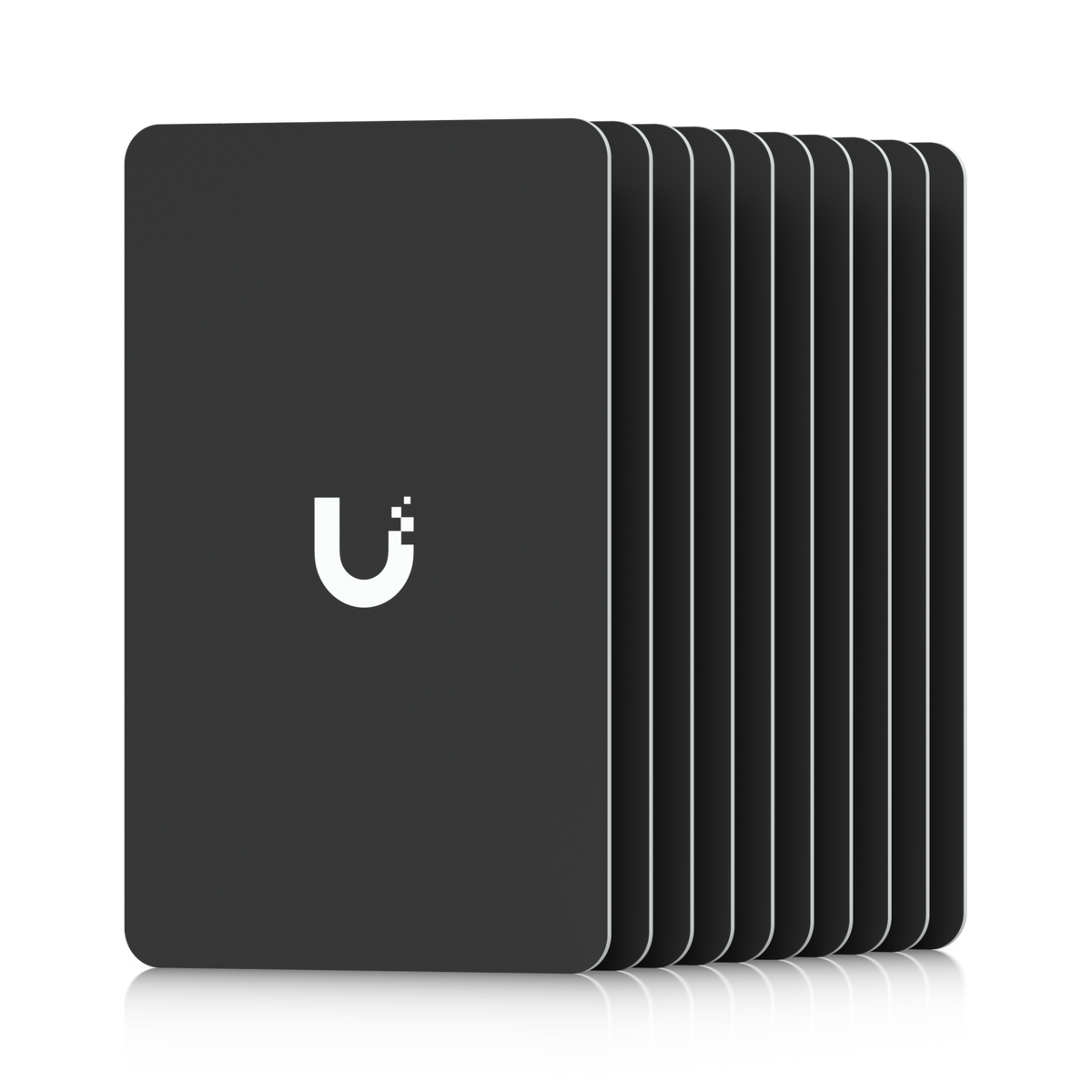

- Access Card Dimensions: 85.6 x 54 x 0.8 mm
- Access Card Weight: 5 g (0.18 oz)

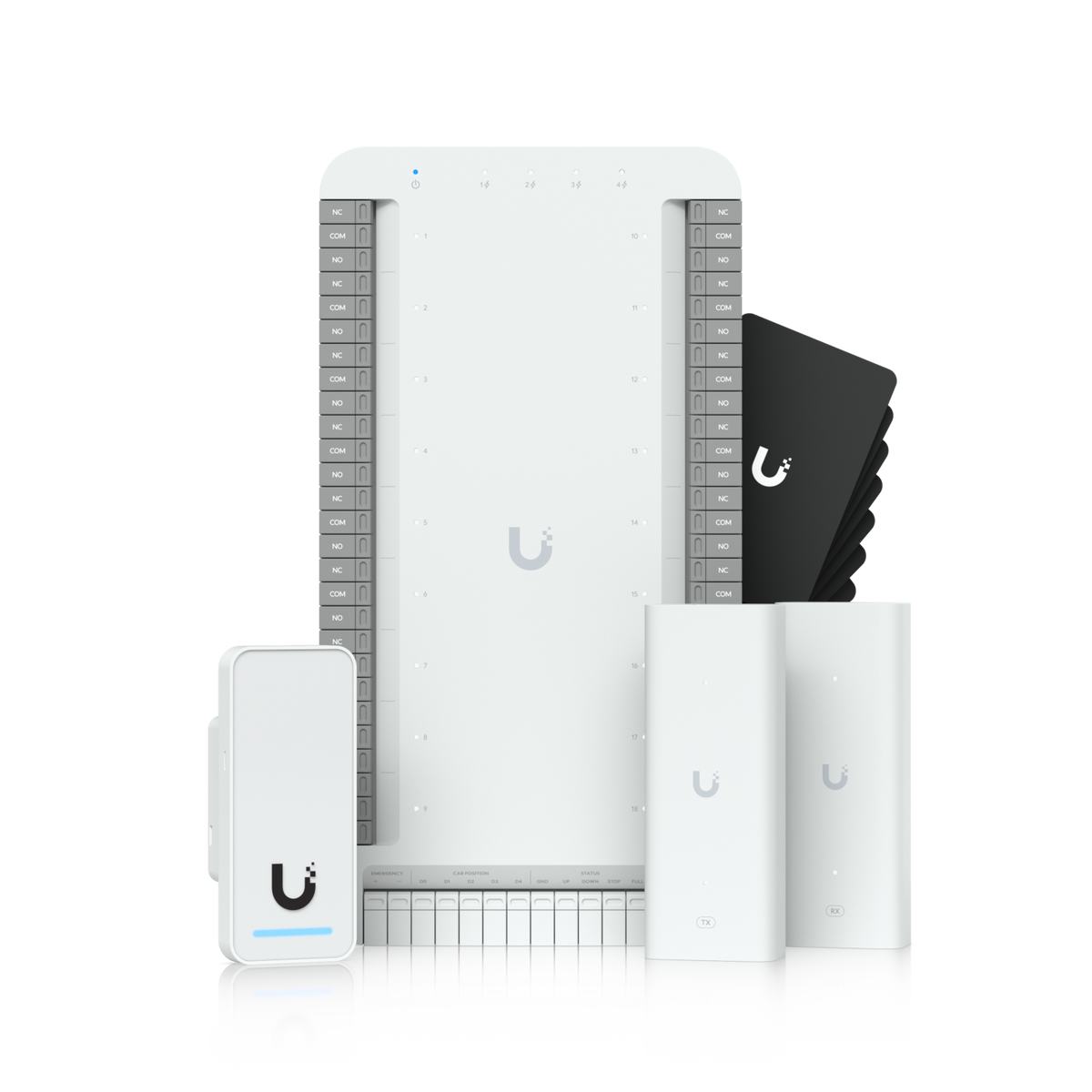

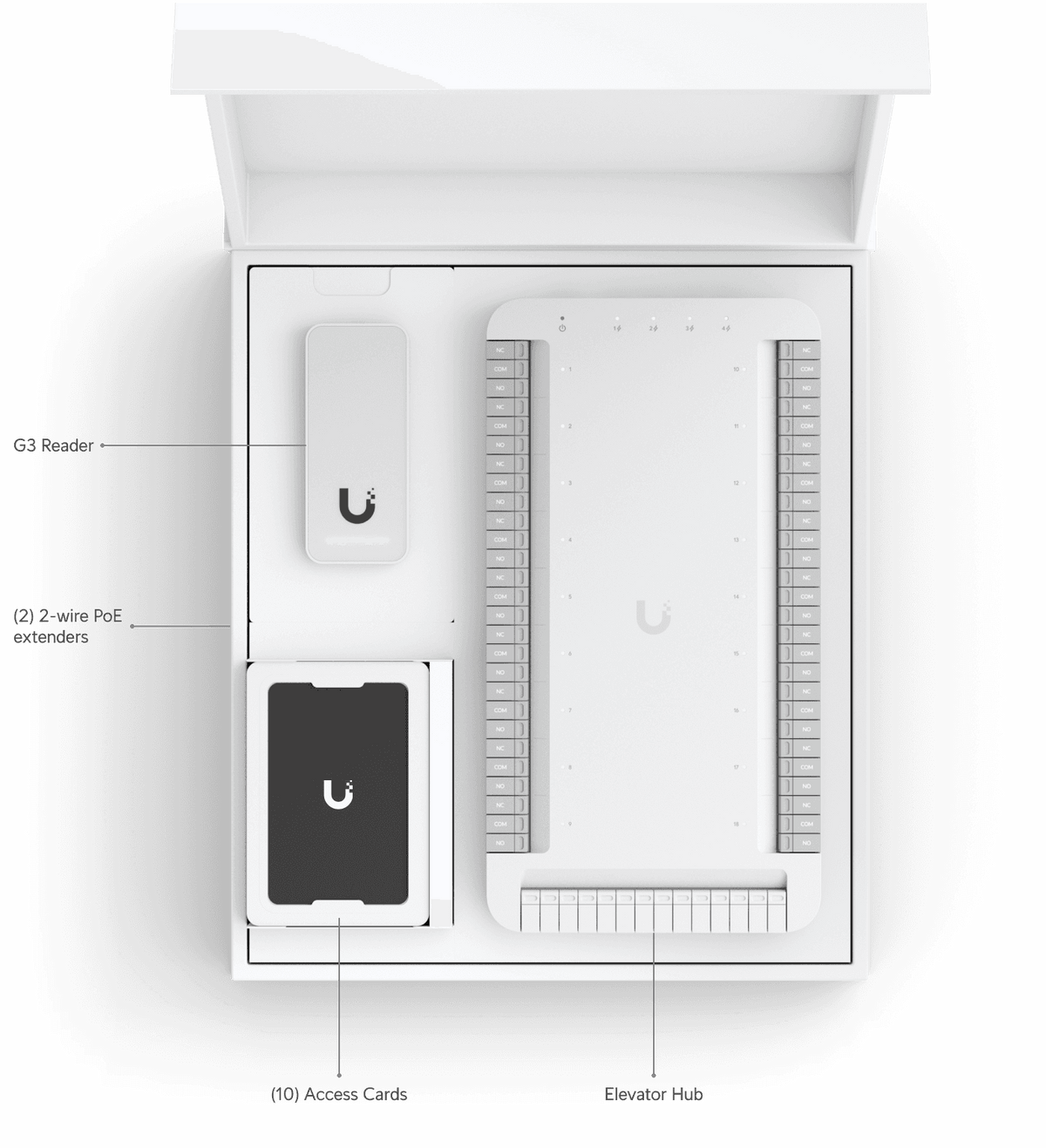

- In the Box: (1) Elevator Hub, (1) G3 Reader, (2) 2-wire PoE extenders, (10) Access Cards, (10) 1-year Touch Passes
- NDAA Compliant: Yes

FAQs

Q: What is the difference between the UA-G3-SK-Elevator and the original UA-SK-Elevator?
A: The UA-G3-SK-Elevator includes the upgraded G3 Reader in place of the G2 Reader found in the original UA-SK-Elevator. The G3 Reader offers improved build quality and performance while maintaining the same core functionality and compatibility with the UniFi Access ecosystem.

Q: How many floors can this elevator access control kit support?
A: The UniFi Access Elevator Starter Kit supports up to 18 floors, with per-user floor permissions configurable through the UniFi Access application.

Q: Do I need to run new cabling to install this kit?
A: No. The included 2-wire PoE extenders are designed to work with existing coaxial or twisted-pair low-voltage cabling already present in most elevator shafts, eliminating the need for costly new cable runs.

Q: What authentication methods does this kit support?
A: Users can authenticate via NFC Access Cards (13.56 MHz, MIFARE DESFire compatible), PIN code entry, or agent-based remote unlocking — all managed through the UniFi Access application.

Q: What happens to floor access if there is a power outage?
A: The Elevator Hub supports both fail-safe and fail-secure terminal modes, allowing you to configure whether floors default to open or locked access in the event of a power failure, depending on your building's safety requirements.

Q: Can I purchase this kit in Australia and where can I get support?
A: Yes. The UA-G3-SK-Elevator is available through iptrading.com.au, a trusted Australian B2B IT hardware reseller. The kit is eligible for Ubiquiti's UI Care 5-year coverage option for extended support peace of mind.
