Ubiquiti U6-MESH | UniFi U6 Mesh Wi-Fi 6 Access Point, 4x4 MU-MIMO, PoE Adapter Included

Name: Ubiquiti U6-MESH | UniFi U6 Mesh Wi-Fi 6 Access Point, 4x4 MU-MIMO, PoE Adapter Included
Brand: Ubiquiti
SKU: U6-Mesh
Price: 389.62 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:U6-Mesh

In stock:129

$389.62 inc. GST

$354.20 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

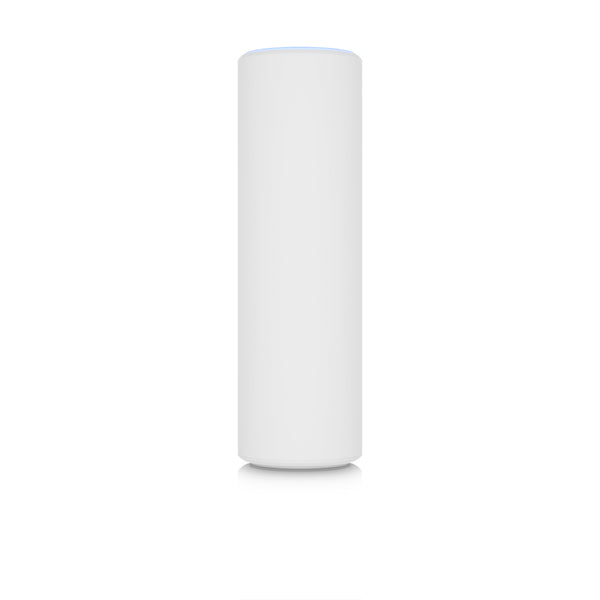

The Ubiquiti UniFi U6 Mesh is a compact indoor/outdoor Wi-Fi 6 access point with 6 spatial streams, built for mesh and wireless-uplink deployments. It delivers up to 4.8 Gbps on 5 GHz (4x4 MU-MIMO) and up to 573.5 Mbps on 2.4 GHz (2x2 MU-MIMO), covers up to 140 m² and supports 250+ connected clients. This SKU includes a PoE adapter, so it can be powered and connected straight from a single Gigabit Ethernet run.

With IPX5 weatherproofing, an NDAA-compliant design and a wall/pole mount in the box, the U6 Mesh suits hospitality, retail, warehouses, outdoor courtyards and other spaces where a discreet, weather-resistant access point is needed. It is managed through the UniFi Network application and offers wireless meshing, band steering, fast roaming and guest portal features.

Features

- Wireless meshing for extending coverage without additional cabling
- Band steering to move capable clients onto 5 GHz
- 802.11k/v/r fast roaming and radio resource management
- Advanced Radio Management
- Passpoint (Hotspot 2.0) support
- Captive hotspot portal with custom branding, voucher, payment-based, password and external portal authentication
- Guest network isolation and client device isolation
- Private Pre-Shared Key (PPSK)
- WiFi speed limiting and WiFi schedules
- RADIUS over TLS (RadSec) and dynamic RADIUS-assigned VLAN

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 6 (802.11ax), 6 spatial streams
- 5 GHz: 4x4 DL/UL MU-MIMO, up to 4.8 Gbps (BW160)
- 2.4 GHz: 2x2 DL/UL MU-MIMO, up to 573.5 Mbps (BW40)
- Antenna gain: 5 dBi (5 GHz), 3 dBi (2.4 GHz)
- Max. TX power: 26 dBm (5 GHz), 22 dBm (2.4 GHz)
- 1 x GbE RJ45 port, PoE powered, PoE adapter included
- Supported voltage range: 44-57V DC, max. power consumption 13 W
- Coverage up to 140 m² (1,500 ft²), 250+ max. connected clients
- Up to 8 BSSIDs per radio
- IPX5 weatherproofing, operating temperature -30 to 60 C
- Wall and pole mounts included
- Dimensions: ⌀48.5 x 159.5 mm, weight 400 g
- Polycarbonate and aluminium enclosure
- NDAA compliant
- Certifications: CE, FCC, IC, SRRC, Anatel
- Requires UniFi Network version 6.0.45 or later

FAQs

Q: Does the U6-MESH include a PoE adapter?
A: Yes. This SKU ships with a PoE adapter, so you can power the access point over a single Gigabit Ethernet cable without a PoE switch.

Q: Can the U6-MESH be used outdoors?
A: Yes. It has IPX5 weatherproofing and an operating temperature range of -30 to 60 C, and includes mounts for wall or pole installation.

Q: How is the U6-MESH managed?
A: It is managed through the UniFi Network application, version 6.0.45 or later.

Q: What wireless speeds does the U6-MESH support?
A: Up to 4.8 Gbps on 5 GHz (4x4 MU-MIMO, BW160) and up to 573.5 Mbps on 2.4 GHz (2x2 MU-MIMO, BW40).

Q: How many clients and how much area can it cover?
A: It supports 250+ connected clients and covers up to 140 m² (1,500 ft²), depending on the environment.

Q: What is the power draw of the U6-MESH?
A: Maximum power consumption is 13 W, supplied over PoE in the 44-57V DC range.
