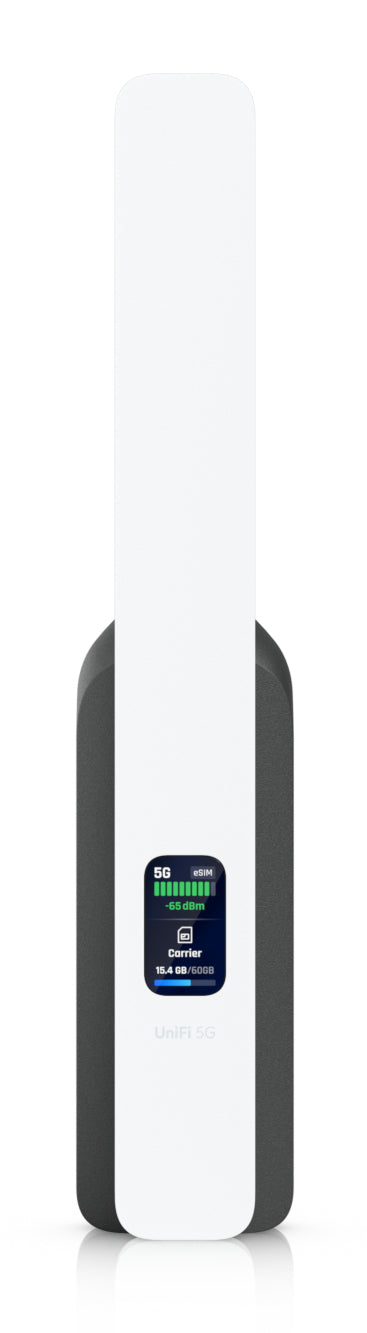

Ubiquiti U5G-US | UniFi 5G Backup Modem, PoE-Powered, Nano-SIM & eSIM, US Version

Ubiquiti U5G-US | UniFi 5G Backup Modem, PoE-Powered, Nano-SIM & eSIM, US Version

U5G-US

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The UniFi 5G Backup (U5G) is a compact PoE-powered 5G RedCap cellular modem designed to deliver automatic internet failover for UniFi networks. Plugging directly into any UniFi PoE switch or gateway port, it requires no separate power adapter and supports both Nano-SIM and eSIM connectivity across a wide range of 5G NR and LTE bands. With download speeds up to 220 Mbps and automatic LTE fallback, it ensures continuous connectivity for business-critical applications. This US version (U5G-US) ships with eSIM pre-configured for T-Mobile network activation post-adoption.

Fully carrier-unlocked and managed natively within the UniFi ecosystem via UniFi Network v10.4.57 or later, the U5G supports both primary WAN and LAN-connected backup WAN modes via GRE tunnel. A front-facing status display provides real-time signal and carrier visibility, while included desktop, wall, and window mount options suit virtually any deployment scenario. Buy today from iptrading.com.au — fast shipping and expert service across Australia.

Features

- Compact PoE-powered design — no power adapter required, powered by 802.3af
- Plugs into any UniFi PoE switch or gateway for instant adoption into the UniFi ecosystem
- Automatic internet failover with customisable failover policies for uninterrupted connectivity
- 5G RedCap support with automatic LTE fallback across a broad range of frequency bands
- Fully carrier-unlocked — compatible with any Nano-SIM or eSIM-supported carrier
- eSIM activates automatically post-adoption (US version: T-Mobile network)
- GRE tunnel over LAN enables flexible placement without a dedicated WAN port
- Front-facing status display shows real-time signal strength and carrier information
- Supports primary WAN and LAN-connected backup WAN deployment modes
- Three included mounting options: desktop stand, wall mount, and window adhesive mount
- Centrally managed within UniFi Network alongside switches, gateways, and access points

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G Category: 5G RedCap with automatic LTE fallback
- Networking Interface: 1x Gigabit Ethernet (RJ45)
- SIM Support: 1x Nano-SIM (4FF) + 1x eSIM
- PoE Input: 802.3af (no power adapter required)
- Max Download Speed: Up to 220 Mbps
- 5G NR Bands: n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41, n48, n66, n71, n77, n78
- Device Dimensions: 200 x 38 x 20.2 mm
- Device Weight: 122 g
- Enclosure: Polycarbonate and aluminium alloy
- Mounting: Desktop stand, wall mount, window adhesive mount (all included)
- Management: UniFi Network v10.4.57 or later required
- Region: US version (U5G-US) — eSIM activates on T-Mobile network

FAQs

Q: What is the difference between the U5G-US and other U5G variants?
A: The U5G-US is the US-specific version of the UniFi 5G Backup modem. Its eSIM is pre-configured to automatically activate on the T-Mobile network upon device adoption. Other regional variants support different carrier eSIM profiles. The supported 5G NR bands are also optimised for US carrier frequencies.

Q: Does the U5G require a separate power supply?
A: No. The U5G is powered entirely via 802.3af PoE, so it draws power directly from any compatible UniFi PoE switch or gateway port. No additional power adapter or outlet is needed.

Q: Can I use my own SIM card with the U5G-US?
A: Yes. The U5G-US is fully carrier-unlocked and accepts any compatible Nano-SIM (4FF) in addition to its built-in eSIM slot. You can insert a SIM from any carrier that supports the device's 5G NR or LTE band configuration.

Q: How does the automatic failover work?
A: The U5G integrates into the UniFi Network application (v10.4.57 or later) and supports customisable failover policies. When your primary WAN connection drops, traffic is automatically rerouted over the 5G or LTE cellular connection. It can operate as a primary WAN interface or as a LAN-connected backup WAN via GRE tunnel.

Q: Does the U5G require an existing UniFi setup?
A: Yes. The U5G is managed exclusively through the UniFi Network application. It is designed to plug into a UniFi PoE switch or gateway and be adopted into an existing UniFi ecosystem. It is not compatible with third-party management platforms.

Q: Can I purchase the Ubiquiti U5G-US from IP Trading in Australia?
A: Yes. IP Trading (iptrading.com.au) stocks the U5G-US and ships across Australia with fast dispatch and expert pre-sales support. Contact our team for bulk pricing or compatibility advice before ordering.
