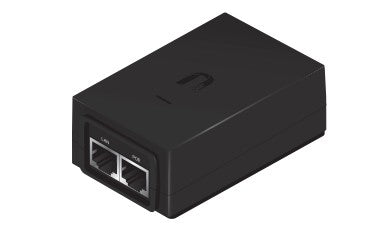

Ubiquiti POE-24-30W-AU | 24V 30W Gigabit Passive PoE Injector, AU Plug

Ubiquiti POE-24-30W-AU | 24V 30W Gigabit Passive PoE Injector, AU Plug

Authorised Ubiquiti Partner

SKU:POE-24-30W-AU

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The POE-24-30W-AU is a 24V 30W Gigabit passive PoE injector with an Australian AC plug, designed to deliver power and data over a single Ethernet cable to compatible Ubiquiti access points and airMAX radios. It provides 24V DC at 1.25A, a 10/100/1000 LAN port and a shielded Gigabit PoE output port, so remote devices can be installed without a nearby power outlet.

The adapter accepts 100-240V AC input through a C6 inlet and includes surge and clamping protection with earth grounding to help guard connected equipment against ESD events. It suits Ubiquiti airFiber, airMAX, EdgeMAX, mFi, UniFi AP and UniFi Video devices that use passive 24V PoE, and the AU plug connects directly to Australian mains outlets without an adapter.

Features

- Delivers power and Gigabit data over a single Ethernet cable
- Earth grounding and surge protection help guard against ESD events
- Powers compatible Ubiquiti airFiber, airMAX, EdgeMAX, mFi, UniFi AP and UniFi Video devices
- Gigabit LAN port supports full-speed data alongside power
- AU plug variant fits Australian mains outlets without plug adapters
- Compact 94 x 60 x 33 mm form factor for easy deployment

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output: 24V DC at 1.25A (30W)
- LAN port: 1 x 10/100/1000 Gigabit RJ45
- PoE output port: 1 x Gigabit RJ45 (shielded)
- PoE type: Passive 24V, 4-pair powering (pins 1,2,4,5 positive; 3,6,7,8 negative)
- Input: 100-240V AC, 50/60 Hz via C6 inlet
- Input current: 0.6A at 120V AC, 0.4A at 240V AC
- Efficiency: 83%+
- Output ripple: 1% maximum
- Surge and clamping protection with earth-grounded AC cable
- Operating temperature: 0 to 40 C
- Operating humidity: 35 to 95% non-condensing
- Dimensions: 94.0 x 60.0 x 33.0 mm
- Plug type: Australian AC plug

FAQs

Q: What type of PoE does the POE-24-30W-AU provide?
A: It provides passive 24V PoE using 4-pair powering, with pins 1,2,4,5 positive and 3,6,7,8 negative. It is not IEEE 802.3af/at compliant, so only connect devices designed for passive 24V PoE.

Q: Which Ubiquiti devices can this adapter power?
A: It is intended for compatible Ubiquiti passive 24V PoE devices across the airFiber, airMAX, EdgeMAX, mFi, UniFi AP and UniFi Video ranges. Check the power requirements of your specific device against the 24V 1.25A (30W) output.

Q: Does it support Gigabit speeds?
A: Yes. The LAN input port and the PoE output port are both 10/100/1000 Gigabit Ethernet, so data passes at full Gigabit speed alongside power.

Q: Does this model include an Australian plug?
A: Yes. This variant has an Australian AC plug, so it connects directly to local mains outlets with no adapter required.

Q: Does the adapter include surge protection?
A: Yes. It includes surge and clamping protection and an earth-grounded AC cable to help protect connected equipment from ESD events.

Q: What input voltage range does it accept?
A: It accepts 100-240V AC at 50/60 Hz through a C6 AC inlet, so it works with standard Australian mains supply.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
