Ubiquiti POE-24-24W-AU | 24V 1A 24W Passive PoE Adapter, AU Plug, Earthed

Ubiquiti POE-24-24W-AU | 24V 1A 24W Passive PoE Adapter, AU Plug, Earthed

POE-24-24W-AU

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

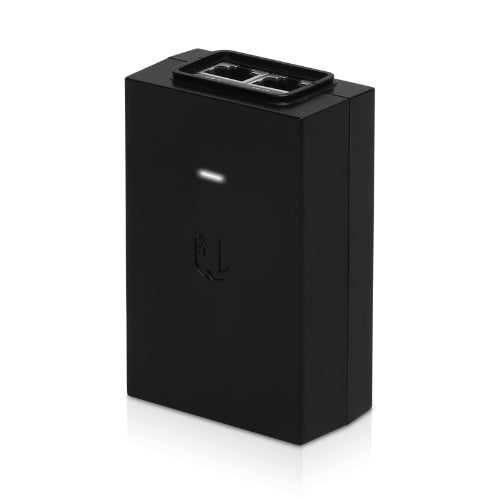

The Ubiquiti POE-24-24W-AU is a passive 24V PoE adapter that delivers 24V DC at 1A (24W) over a single Ethernet cable to compatible Ubiquiti devices. This variant includes an Australian AU plug power cord with an earthed IEC-320 C6 connector, so it is ready to connect to a local power outlet.

Built-in earth grounding, ESD protection and surge protection help safeguard connected PoE equipment. A power LED indicator confirms the adapter is live, and the two RJ45 ports (LAN input and POE output) make installation straightforward for both indoor and edge deployments.

Buy today from iptrading.com.au for fast shipping and expert service across Australia.

Features

- Earth grounding and ESD protection
- Surge protection and clamping protection
- Helps protect PoE devices against ESD events
- Power LED indicator
- Single cable delivers power and data to Ubiquiti 24V passive PoE devices

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Output: 24V DC @ 1A (24W)
- Input voltage: 90-260V AC @ 47-63Hz
- Input current: 0.6A @ 120V AC, 0.4A @ 230V AC
- 2 x RJ45 ports (1 LAN input, 1 POE output)
- Passive 24V PoE
- Efficiency: 80+%
- Output ripple: 1% max
- Operating temperature: 0 to 40 °C
- AC connector: IEC-320 C6 (earthed cable)
- AU plug / AU power cord

FAQs

Q: What is the output of the POE-24-24W-AU?
A: It provides 24V DC at 1A, a total of 24W, using passive 24V PoE.

Q: Does this adapter come with an Australian power cord?
A: Yes. This variant uses an AU plug and earthed AU power cord with an IEC-320 C6 connector.

Q: Is this standard 802.3af/at PoE?
A: No. It is passive 24V PoE and should only be used with devices designed for 24V passive PoE, such as compatible Ubiquiti products.

Q: How does it connect to my network?
A: Connect your switch or router to the LAN port and run an Ethernet cable from the POE port to the powered device. Power and data travel over the same cable.

Q: What protection does it offer?
A: It includes earth grounding, ESD protection, surge protection and clamping protection to help safeguard connected PoE equipment.

Q: What input voltage range does it support?
A: It accepts 90-260V AC at 47-63Hz, covering Australian mains supply.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
